SQL SERVER – Finding Shortest Distance between Two Shapes using Spatial Data Classes – Ramsetu or Adam’s Bridge

Recently I was reading excellent blog post by Lenni Lobel on Spatial Database. He has written very interesting function ShortestLineTo in Spatial Data Classes. I really loved this new feature of the finding shortest distance between two shapes in SQL Server. Following is the example which is same as Lenni talk on his blog article .

DECLARE @Shape1 geometry = 'POLYGON ((-20 -30, -3 -26, 14 -28, 20 -40, -20 -30))'
DECLARE @Shape2 geometry = 'POLYGON ((-18 -20, 0 -10, 4 -12, 10 -20, 2 -22, -18 -20))'
SELECT @Shape1
UNION ALL
SELECT @Shape2
UNION ALL
SELECT @Shape1.ShortestLineTo(@Shape2).STBuffer(.25)
GO

When you run this script SQL Server finds out the shortest distance between two shapes and draws the line. We are using STBuffer so we can see the connecting line clearly.

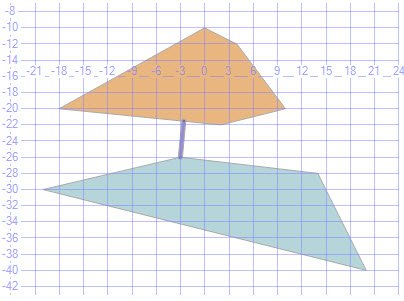

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge spatial_1

Now let us modify one of the object and then we see how the connecting shortest line works.

DECLARE @Shape1 geometry = 'POLYGON ((-20 -30, -3 -30, 14 -28, 20 -40, -20 -30))'
DECLARE @Shape2 geometry = 'POLYGON ((-18 -20, 0 -10, 4 -12, 10 -20, 2 -22, -18 -20))'
SELECT @Shape1
UNION ALL
SELECT @Shape2
UNION ALL
SELECT @Shape1.ShortestLineTo(@Shape2).STBuffer(.25)
GO

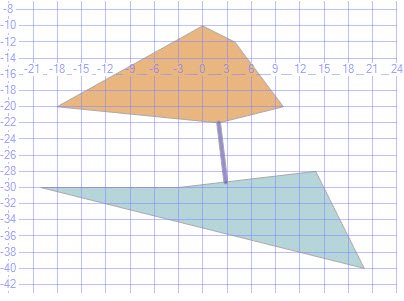

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge spatial_2

Now once again let us modify one of the script and see how the shortest line to works.

DECLARE @Shape1 geometry = 'POLYGON ((-20 -30, -3 -30, 14 -28, 20 -40, -20 -30))'
DECLARE @Shape2 geometry = 'POLYGON ((-18 -20, 0 -10, 4 -12, 10 -20, 2 -18, -18 -20))'
SELECT @Shape1
UNION ALL
SELECT @Shape2
UNION ALL
SELECT @Shape1.ShortestLineTo(@Shape2).STBuffer(.25)
SELECT @Shape1.STDistance(@Shape2)
GO

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge spatial_3

You can see as the objects are changing the shortest lines are moving at appropriate place. I think even though this is very small feature this is really cool know.

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge spatial_4

While I was working on this example, I suddenly thought about distance between Sri Lanka and India. The distance is very short infect it is less than 30 km by sea. I decided to map India and Sri Lanka using spatial data classes. To my surprise the plotted shortest line is the same as Adam’s Bridge or Ramsetu. Adam’s Bridge starts as chain of shoals from the Dhanushkodi tip of India’s Pamban Island and ends at Sri Lanka’s Mannar Island. Geological evidence suggests that this bridge is a former land connection between India and Sri Lanka.

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge ramsetu

SQL SERVER - Finding Shortest Distance between Two Shapes using Spatial Data Classes - Ramsetu or Adam's Bridge ramsetu1

Reference: Pinal Dave (https://blog.sqlauthority.com)

, ,
