MSQL_XP Wait Stats: Extended Procedures and External Code

MSQL_XP wait stats measure the time a query waits for an extended stored procedure to finish. An extended stored procedure is outside code from a DLL that runs inside the SQL Server process. SQL Server can time it, but it can’t see inside it.

This post is part of my wait stats series, told as one story at the Clipboard Diner. Every post is listed in the series guide.

Night 20 at the Clipboard Diner

The night after Kit’s long call to town hall, Casey let a stranger into the kitchen. A caterer from two towns over made a pepper sauce people drove an hour for. The deal was easy. The caterer would run a small station by the back door. The cooks would ask for sauce when a ticket needed it.

At 8:10 PM a ticket for smothered lentil loaf came up. Jesse browned two thick slices, plated them, and turned to the station. The caterer nodded, pulled a canvas curtain across, and went to work. A card on the curtain said Caterer Only. Jesse waited at the curtain while the loaf cooled.

Casey started the stopwatch. Behind the curtain a pot lid rattled and a burner hissed. Twice the caterer slipped out the back door to a white van in the lot. Nobody in the kitchen knew what was in that van. Fourteen minutes later the curtain opened, and one ladle of sauce landed on the loaf.

The other cooks had kept cooking the whole time, so the kitchen never stopped. But Jesse and that one ticket were stuck. Casey looked at the curtain for a while, then wrote on the clipboard: Caterer: 14 minutes. I can time it. I can’t see it.

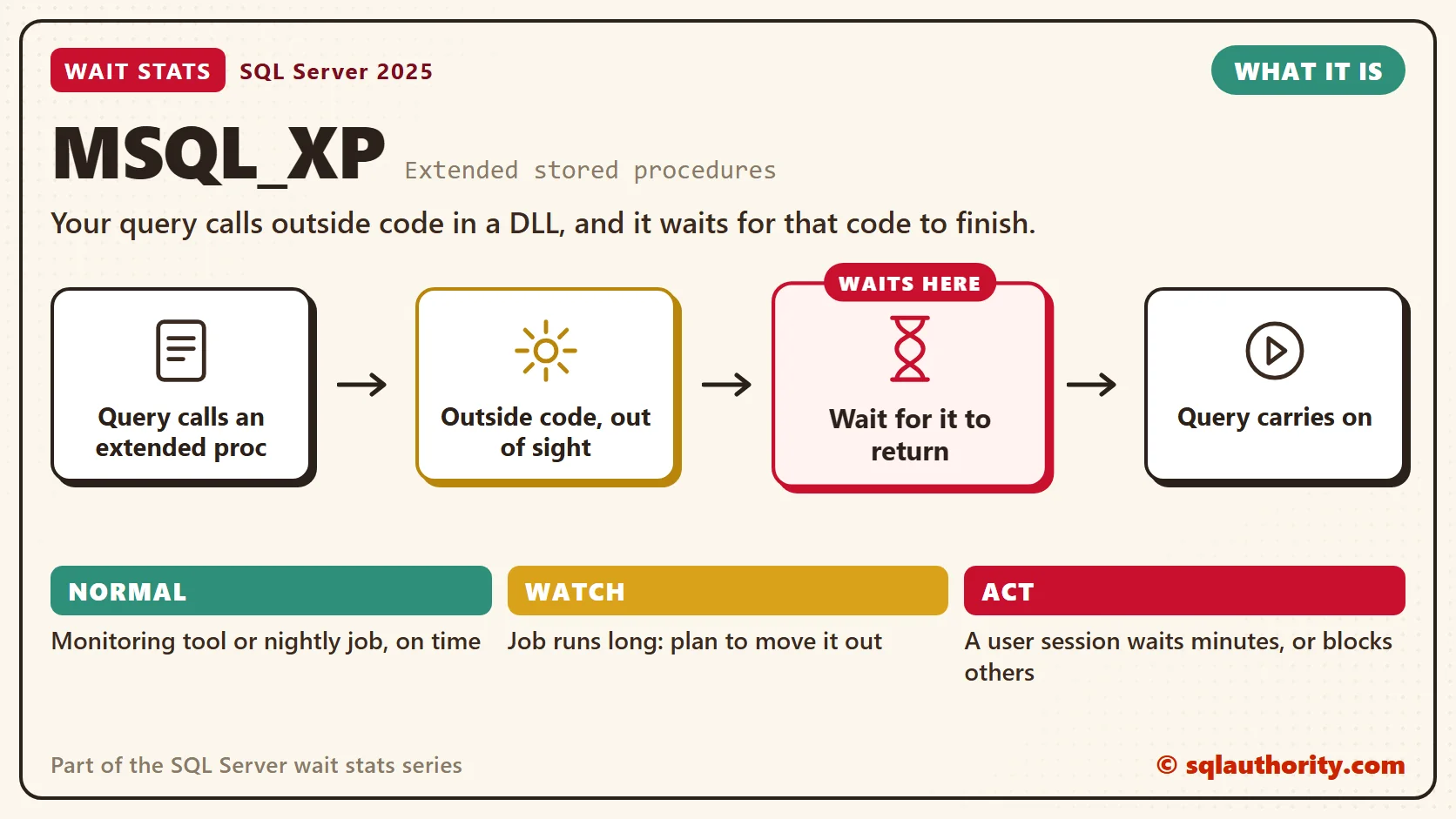

What MSQL_XP Means

That’s what SQL Server does when a query calls an extended stored procedure. The session hands control to the outside code and waits for it to return. The whole time, the request shows the wait type MSQL_XP.

An extended stored procedure is a function in a DLL that SQL Server loads into its own process. Most of their names start with xp_. Because the code isn’t part of the engine, SQL Server can’t tell what it’s stuck on. A slow file share, a hung program and a slow network all look the same from inside: MSQL_XP.

The caller doesn’t hog a scheduler while it waits. The worker steps off the burner schedule, like Kit on the wall phone in PREEMPTIVE Wait Stats. Other queries keep running. The calling session still waits for the answer, though, and it keeps its worker thread until then.

In my health checks, MSQL_XP comes from a short list of usual suspects.

• xp_cmdshell runs a Windows command and waits for it to finish. A file copy, a batch file or an export tool all count.
• xp_dirtree and xp_fileexist list a folder or check for a file, sometimes on a network share.
• Registry readers such as xp_instance_regread, called by management and monitoring tools.
• Some SQL Server Agent and replication system procedures, which call extended procedures under the covers.
• Third-party extended procedures, such as old backup or compression add-ons.

The wait time equals the run time of that outside code. MSQL_XP has no cause of its own inside SQL Server. It tells you which door to knock on.

Normal or a Problem?

See It on Your Server

This first query shows who is waiting on an extended procedure right now, and what they called. Run it while the slow job or report is running.

-- Sessions waiting on an extended stored procedure right now
SELECT r.session_id,
       DATEDIFF(SECOND, r.start_time, GETDATE()) AS running_sec,
       r.open_transaction_count,
       s.login_name,
       s.program_name,
       t.text AS batch_text
FROM sys.dm_exec_requests AS r
JOIN sys.dm_exec_sessions AS s
    ON s.session_id = r.session_id
CROSS APPLY sys.dm_exec_sql_text(r.sql_handle) AS t
WHERE r.wait_type = N'MSQL_XP';

The batch_text column shows the batch or procedure that made the call. If the call sits inside another procedure, open that code to find the exact command. The running_sec column is clock time since the request started. I skip wait_time here, because this view leaves out time spent in outside code.

The program_name column tells you who made the call. Agent job steps show a name that starts with SQLAgent. Check open_transaction_count too: above zero means the session holds its locks while the outside code runs.

The second block shows the history since the last restart, and whether xp_cmdshell is turned on at all.

-- MSQL_XP totals since the last restart
SELECT wait_type,
       waiting_tasks_count,
       wait_time_ms,
       max_wait_time_ms,
       CAST(1.0 * wait_time_ms / NULLIF(waiting_tasks_count, 0) AS decimal(18, 2)) AS avg_wait_ms
FROM sys.dm_os_wait_stats
WHERE wait_type = N'MSQL_XP';

-- Is xp_cmdshell turned on? (1 = on)
SELECT name, value_in_use
FROM sys.configurations
WHERE name = N'xp_cmdshell';

Look at the average and the maximum together. A few long waits point at one job or one stuck call. Many short waits point at a tool that calls an extended procedure all day. For a busy hour instead of all-time totals, use the snapshot method from Wait Stats Over Time.

Whose Problem Is It?

You could say MSQL_XP is someone else’s problem, because the time is spent outside SQL Server. Fair point. But the session is still yours. It still holds a worker thread and any locks it took, and the user still stares at a spinner.

The usual reflex is to kill the session. One that has sat in MSQL_XP for an hour goes to KILLED/ROLLBACK and stays there. SQL Server can’t stop the outside program, so the session keeps waiting for it. The way out is to find the stuck command on the Windows side and end it there.

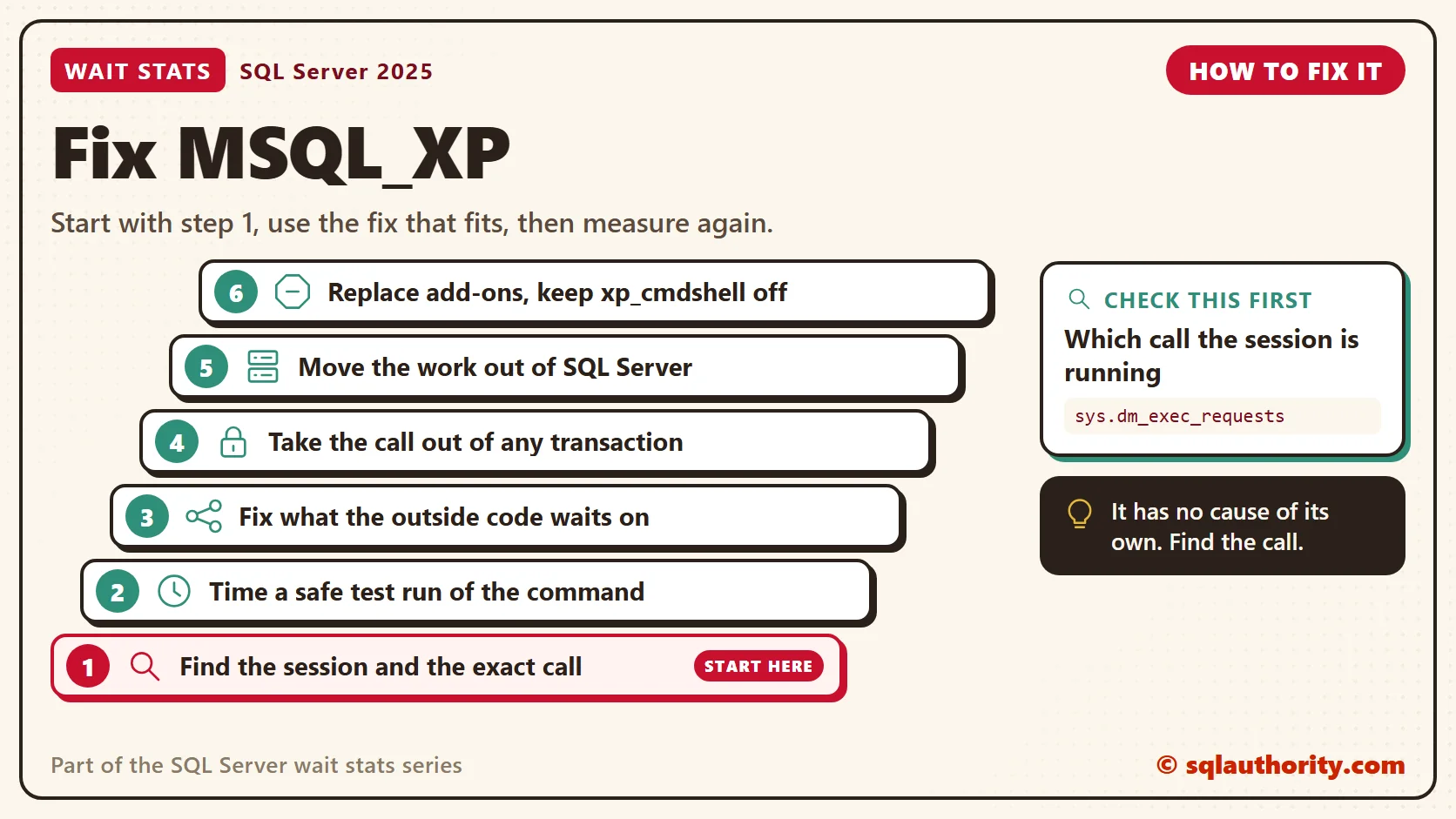

Fix It

1. Find the session and the exact call with the first query. Write down the command line, path or procedure name.
2. Time the command outside SQL Server, but only when a repeat is safe. Never rerun a command that moves, deletes or sends something. Use a test copy under the same Windows account the call runs as. If it’s slow there too, SQL Server isn’t the problem.
3. Fix what the outside code waits on: the network share, the program, or the remote folder.
4. Take the call out of any transaction. Do the outside work before you open the transaction or after you commit.
5. Move the work out of SQL Server. A file copy belongs in an Agent job step of type PowerShell or CmdExec, or in a Windows scheduled task. Those run outside the engine, so no query waits on them.
6. Replace third-party extended procedures with application code or CLR. Extended procedures are deprecated, and they’ll be removed in a future version.
7. Keep xp_cmdshell turned off unless a job needs it, because it hands Windows commands to anyone who can run it.

New in SQL Server 2022 and 2025

Nothing in SQL Server 2022 or 2025 changes what MSQL_XP means. Extended stored procedures still work, and they’re still marked for removal in a future version. What still matters is the same: find the call, then move the work to a place built for it.

Related Reading

• SQL SERVER – PREEMPTIVE Waits and Scheduler Context

MSQL_XP is not a SQL Server problem, it is a stopwatch on someone else’s code.

Published by Pinal Dave on SQLAuthority. More of my work at pinaldave.com.
