SQL SERVER – 2005 – Create Script to Copy Database Schema and All The Objects – Stored Procedure, Functions, Triggers, Tables, Views, Constraints and All Other Database Objects

Following quick tutorial demonstrates how to create T-SQL script to copy database schema and all of its objects such as Stored Procedure, Functions, Triggers, Tables, Views, Constraints etc. You can review your schema, backup for reference or use it to compare with previous backup.

Please note: the screenshots in this walkthrough are from SQL Server 2005 Management Studio. The wizard is still there in every version since, and it still does the same job, but the screens look different and one step moved. The section at the end of this post covers the current version, so read that first if you are on anything newer.

The walkthrough, step by step

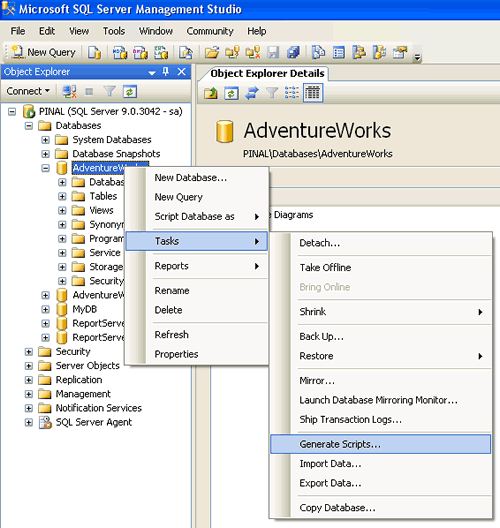

Step 1 : Start

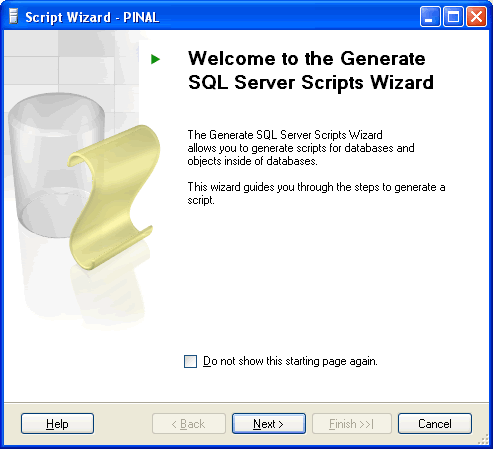

Step 2 : Welcome Screen

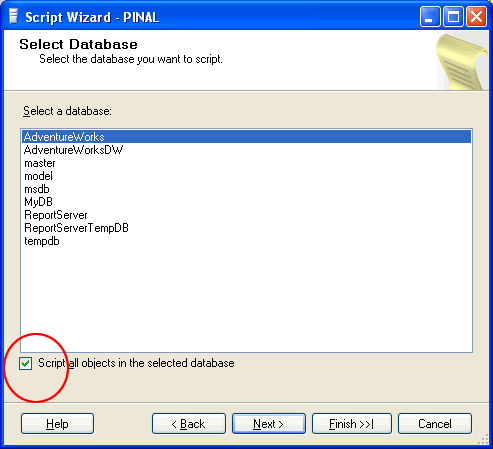

Step 3 : Select One or Multiple Database
If Script all objects in the selected database checkbox is not selected it will give options to selected individual objects on respective screen. (e.g. Stored Procedure, Triggers and all other object will have their own screen where they can be selected)

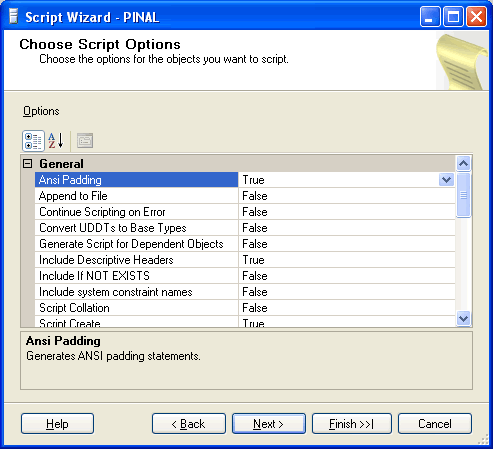

Step 4 : Select database options

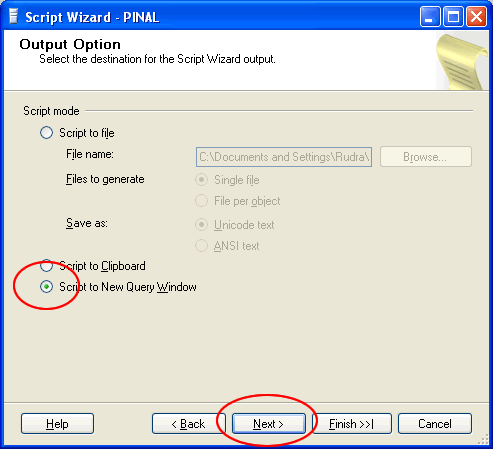

Step 5 : Select output option

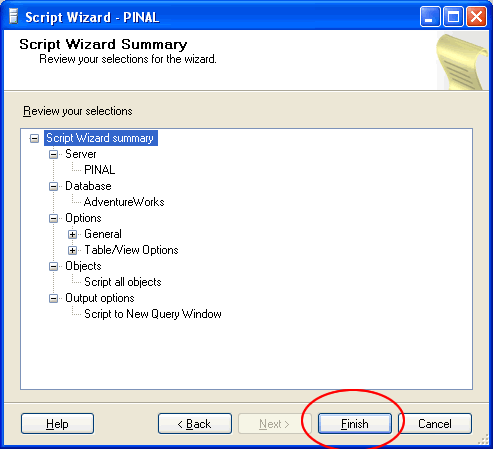

Step 6 : Review Summary

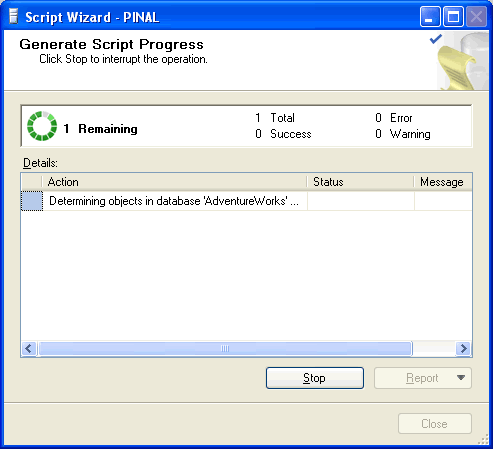

Step 7 : Observe script generation process

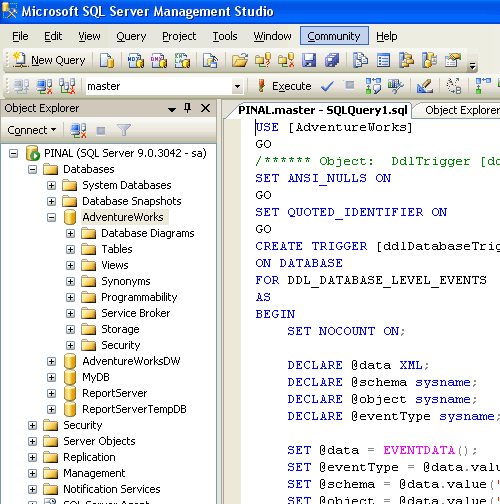

Step 8 : Database object script generation completed in new query window

How to do the same thing in a current SSMS

The route is shorter now. Right click the database in Object Explorer, choose Tasks, then Generate Scripts. From there it is four screens.

Choose Objects. Script the entire database, or tick only the tables and procedures you want. Picking a few objects is much quicker than it used to be, because they are all on one screen instead of one screen each.

Set Scripting Options. Decide where the script goes: a file, the clipboard, or a new query window. There is also a Save to single file per object option, which is the one you want if the script is going into source control.

The Advanced button. This is the step people miss, and it holds the settings that actually matter. Two of them in particular.

Summary, then Finish. Same as steps 6 to 8 above.

The two Advanced settings worth knowing

Types of data to script. The default is Schema only, which gives you empty tables. Change it to Schema and data if you want the rows as well, or Data only if the tables already exist on the other side. This single setting is the difference between copying a database and copying its shape, and it is the thing people come back to this post looking for.

Script for Server Version. If the script is going to an older SQL Server than the one you are on, set this. Otherwise the script may use syntax the older server does not understand, and it fails halfway through, having already created half your tables.

Two more that save trouble later. Set Script Indexes and Script Triggers to True, because both default to False and people are surprised when their new copy is slow and their triggers are missing. And if the target server is empty, set Script DROP and CREATE to Create only, so a rerun does not quietly drop what is already there.

When this is not the right tool

Generate Scripts is perfect for reviewing a schema, keeping a copy for reference, or comparing against an older one. For a large database with real data in it, a backup and restore is far faster than running a script with millions of inserts in it. And if you are doing this regularly to keep two databases in step, a schema comparison tool will do it better than a wizard and a text file.

Update: This article is re-written with a SQL Server 2008 R2 instance over here: SQL SERVER – 2008 – 2008 R2 – Create Script to Copy Database Schema and All The Objects
