A large reporting query uses one core while the rest of the server waits. NonParallelPlanReason in the plan XML can explain why SQL Server chose a serial plan. Read that reason before raising MAXDOP or adding more CPU to a query that cannot use it.
Start With the Plan, Not the CPU Graph
A serial query can be correct when the work is small. A busy single core becomes suspicious when duration and row counts are large and the server has spare capacity. Capture the actual execution plan for the slow statement and inspect the QueryPlan properties. The NonParallelPlanReason attribute can identify a rule that prevented parallelism. Its exact value depends on the plan and engine version.

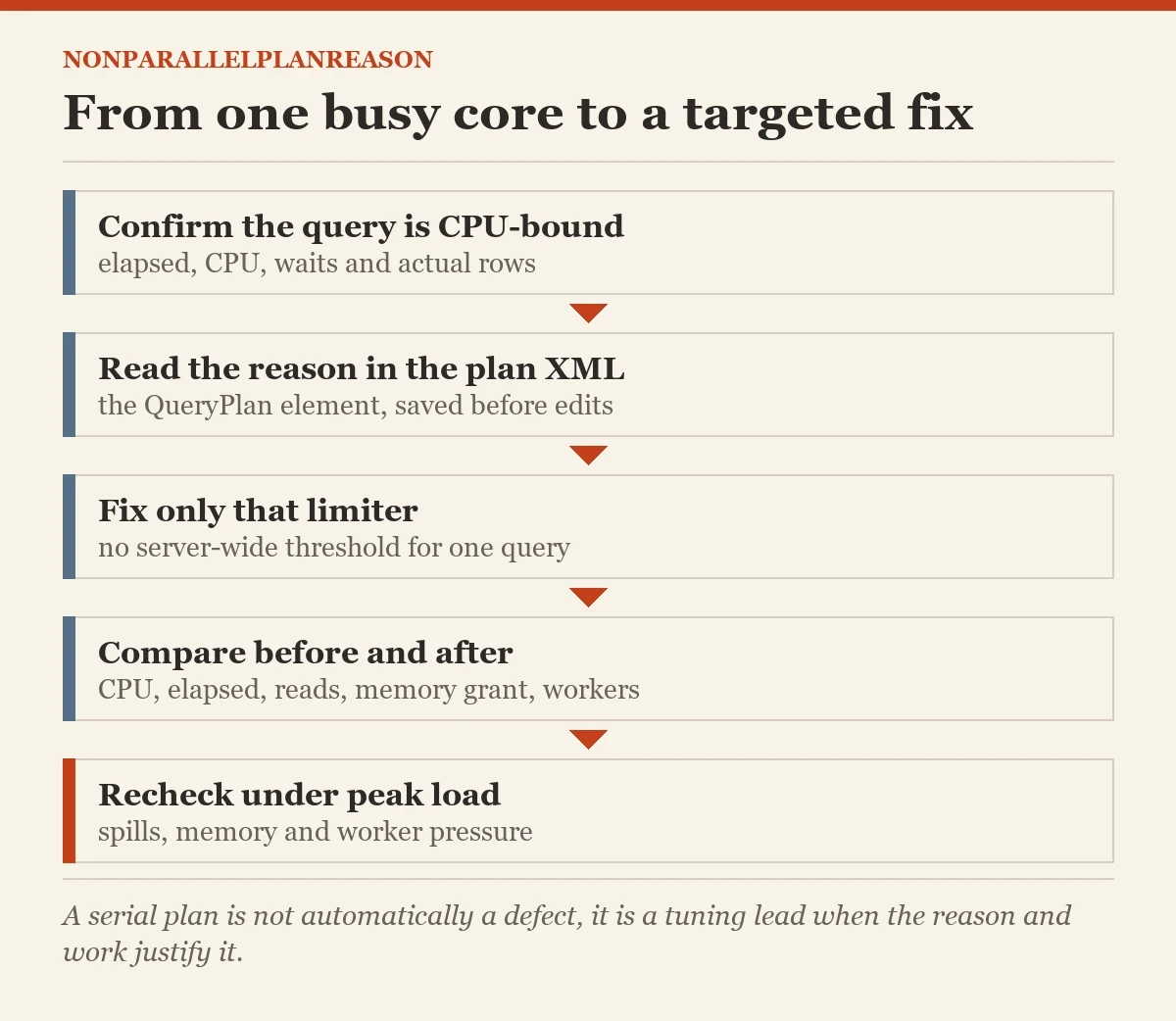

I first confirm that the query is really CPU-bound. A single worker waiting on storage or a lock does not become faster with extra workers. Check elapsed time, CPU time, waits, and actual row counts. What would parallelism speed up in this plan? That question is more useful than a screenshot of Task Manager.
Read NonParallelPlanReason in the Plan XML
SSMS can show NonParallelPlanReason in plan properties, but XML makes the value easy to search and save. Turn on actual plan capture for the statement and inspect the QueryPlan element. The query below shows a way to collect plan XML for a test statement. It does not promise that this tiny catalog query will need parallelism.
SET STATISTICS XML ON;
SELECT COUNT_BIG(*) AS column_total
FROM sys.objects AS o
JOIN sys.columns AS c ON c.object_id = o.object_id;
SET STATISTICS XML OFF;Search the returned XML for NonParallelPlanReason. If it is absent, do not invent a reason. Look at estimated cost, MAXDOP settings, and the operators that actually appear. Save the plan before editing the query. A later plan can erase the property you were trying to explain.
Search Cached Plans for NonParallelPlanReason
A cache search can find other statements with the attribute. The following query reads cached plans from sys.dm_exec_query_stats and extracts the reason from plan XML. It can be expensive on a large cache, so run it during a controlled investigation and narrow by database or query text when possible. Cached plans are estimates, not full runtime evidence.
SELECT TOP (20) qs.total_worker_time,
qs.execution_count,
qp.query_plan.value(
'(//*[local-name()="QueryPlan"]/@NonParallelPlanReason)[1]',
'nvarchar(200)') AS nonparallel_reason,
qs.plan_handle
FROM sys.dm_exec_query_stats AS qs
CROSS APPLY sys.dm_exec_query_plan(qs.plan_handle) AS qp
WHERE qp.query_plan.exist(
'//*[local-name()="QueryPlan"][@NonParallelPlanReason]') = 1
ORDER BY qs.total_worker_time DESC;The result can include several statements from one cached batch. A plan handle is not a business owner or a root cause. Use the handle and statement text to locate the application query, then open its actual plan. A high total_worker_time can reflect many cheap executions, so compare per-execution costs too. The cache disappears on restart or eviction.
Check the Parallelism Settings
Server MAXDOP 1 blocks parallel plans. A database scoped MAXDOP, query hint, or Resource Governor setting can narrow it further. Read the server settings and the database scoped value before changing anything. Cost threshold for parallelism controls when the optimizer considers parallel alternatives based on estimated cost. A query whose estimate is too low can stay serial even when its actual runtime is long.
SELECT name, value_in_use
FROM sys.configurations
WHERE name IN
(N'max degree of parallelism',
N'cost threshold for parallelism');
SELECT name, value
FROM sys.database_scoped_configurations
WHERE name = N'MAXDOP';A high cost threshold is not automatically wrong. Lowering it can send many small queries into parallel plans and increase worker pressure. If the actual plan shows a huge estimate error, correct statistics or predicate shape first. Changing a server-wide threshold to rescue one query is a broad reaction to a narrow problem.
Inspect Scalar Functions and Table Variables
A non-inlined scalar user-defined function can prevent a query from getting a useful parallel plan and hide work inside repeated calls. On supported versions, scalar UDF inlining can change that behavior when the function is eligible. Read the plan to see whether the function was inlined. Rewriting the function as relational logic can be a stronger fix when the function is costly and called per row.
Table variable modifications have parallelism restrictions. If a statement inserts into a table variable, a serial part of the plan can be expected. Reading from a table variable later is a separate statement with its own plan. Split the work into stages in your analysis; do not attribute every serial operator to the table variable merely because it appears somewhere in the procedure.
Fix the Specific Limiter

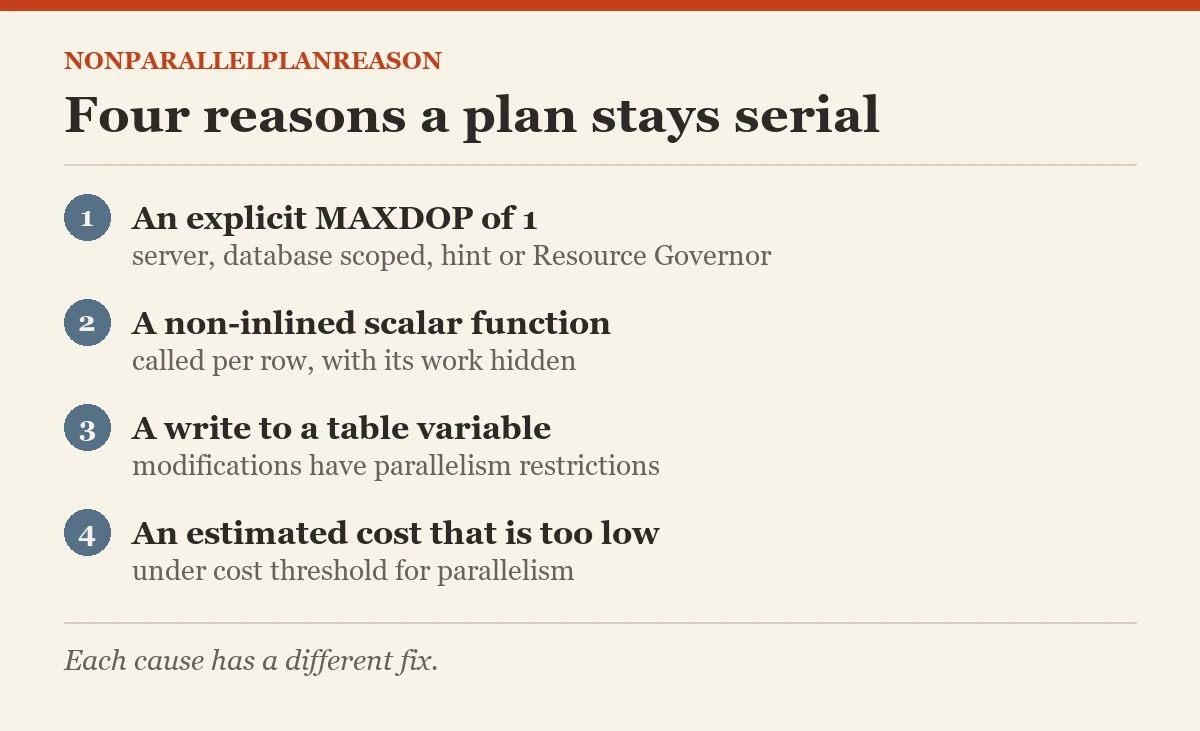

If MAXDOP is explicitly one in a query hint, ask why it was added and test without it in a safe copy. If a scalar function is the limiter, test inlining or a set-based rewrite. If a table variable insert dominates, compare a temporary table and its statistics where appropriate. If cost is underestimated, inspect the first estimate that diverges from actual rows. Each cause has a different fix.
I compare CPU, elapsed time, logical reads, memory grant, and worker usage before and after. More parallel workers can reduce wall-clock time while increasing total CPU and competing with other requests. That trade can be acceptable for a scheduled report but poor for an OLTP workload. A fast single query is not the only performance goal on the server.
Recheck NonParallelPlanReason Under Load
An improved lab plan can behave differently during peak concurrency. Test representative parameter values and the real row count. Check whether the new plan spills, requests too much memory, or monopolizes workers. Keep the old and new plans in Query Store if available. If parallelism still does not appear, reread the reason in the new plan rather than assuming the first fix failed.
Before changing anything, check whether the query has a serial zone because of one operator while other parts can run in parallel. Read the exchange operators and worker distribution in the actual plan. A plan with Parallelism operators is not proof that every costly step uses multiple workers. Likewise, one serial operator does not make the entire query a single-threaded job.
A reason code is an explanation of one optimizer decision, not a command to override it. Sometimes the serial plan is right. When it is wrong, the code points you toward a targeted change. The spare cores on the server are evidence to investigate, not a quota every query must fill.
Related reading on this blog: SQL SERVER Performance: When MAXDOP = 1 Slowed Down the Entire Business and Table Variables, Temp Tables and Parallel Queries.
A serial plan is not automatically a defect, it is a tuning lead when the reason and work justify it.
