SQL SERVER – FIX: SQL Profiler Error – Cannot Retrieve Trace Definition for SQL Server Version

As soon as I opened profiler and clicked on “connect” button, I was welcomed with below the message box. This is one of the funniest error message which I have seen from long time. There is no message!!! Let us see how to fix SQL Profiler Error.

SQL SERVER - FIX: SQL Profiler Error - Cannot Retrieve Trace Definition for SQL Server Version profiler-err-01

Hitting OK on above, came to below message.

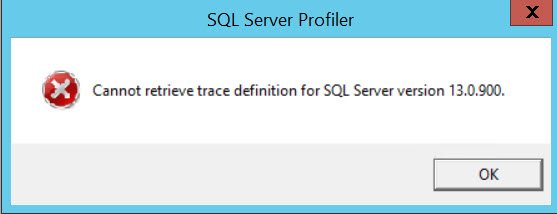

SQL SERVER - FIX: SQL Profiler Error - Cannot Retrieve Trace Definition for SQL Server Version profiler-err-02

Solarwinds

The version shown in the message 13.0.900 is the version of my SQL instance (SQL Server 2016 CTP) on which I was connecting. Here is the text of the second error message.

—————————
SQL Server Profiler
—————————
Cannot retrieve trace definition for SQL Server version 13.0.900.
—————————
OK
—————————

I was scratching my head to figure out from where I can get Trace definition file and I thought profiler is a client tool, I should be able to copy from working machine to bad machine.

Now, the next task was where are the files? So as usual, I use Process Monitor tool to figure out the location. It was under C:\Program Files (x86)\Microsoft SQL Server\130\Tools\Profiler\TraceDefinitions

Here are the steps if you get same issue and want to copy trace definitions from one machine to another:

  • Make a complete backup of the follow location on your client machine:

C:\Program Files (x86)\Microsoft SQL Server\130\Tools\Profiler\TraceDefinitions

  • From the SSAS server that we had tested and verified that it worked, go to the same location and create a copy of the TraceDefinitions directory and replace it on your client machine.

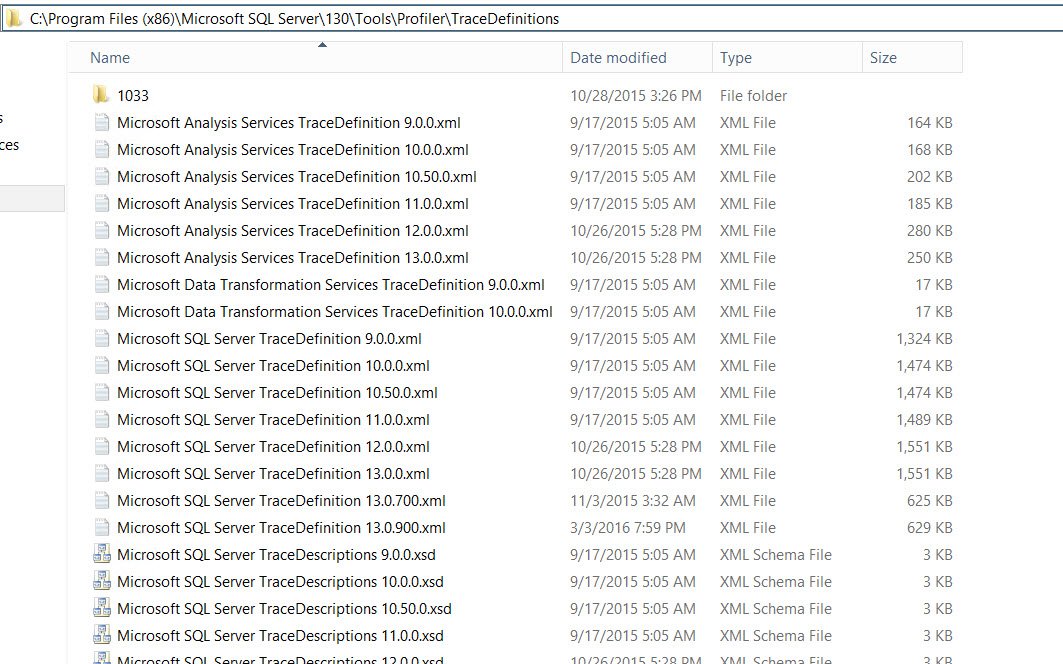

SQL SERVER - FIX: SQL Profiler Error - Cannot Retrieve Trace Definition for SQL Server Version profiler-err-03

Here is something which would help in finding the numeric value in the path. Below table lists SQL Server release names and folders:

SQL Server 200080
SQL Server 200590
SQL Server 2008100
SQL Server 2008 R2100
SQL Server 2012110
SQL Server 2014120
SQL Server 2016130

Once I copied from working machine, it went well and I was able to open profiler.

Reference: Pinal Dave (https://blog.sqlauthority.com)
