SQL SERVER – Simple Example of Reading XML File Using T-SQL

In one of the previous article we have seen how we can create XML file using SELECT statement SQL SERVER – Simple Example of Creating XML File Using T-SQL. Today we will see how we can read the XML file using the SELECT statement.

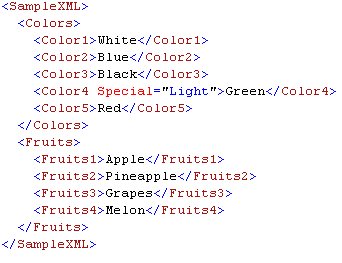

Following is the XML which we will read using T-SQL:

SQL SERVER - Simple Example of Reading XML File Using T-SQL samplexml

Following is the T-SQL script which we will be used to read the XML:

DECLARE @MyXML XML
SET @MyXML = '<SampleXML>
<Colors>
<Color1>White</Color1>
<Color2>Blue</Color2>
<Color3>Black</Color3>
<Color4 Special="Light">Green</Color4>
<Color5>Red</Color5>
</Colors>
<Fruits>
<Fruits1>Apple</Fruits1>
<Fruits2>Pineapple</Fruits2>
<Fruits3>Grapes</Fruits3>
<Fruits4>Melon</Fruits4>
</Fruits>
</SampleXML>'

SELECT
a.b.value(‘Colors[1]/Color1[1]’,‘varchar(10)’) AS Color1,
a.b.value(‘Colors[1]/Color2[1]’,‘varchar(10)’) AS Color2,
a.b.value(‘Colors[1]/Color3[1]’,‘varchar(10)’) AS Color3,
a.b.value(‘Colors[1]/Color4[1]/@Special’,‘varchar(10)’)+‘ ‘+
+
a.b.value(‘Colors[1]/Color4[1]’,‘varchar(10)’) AS Color4,
a.b.value(‘Colors[1]/Color5[1]’,‘varchar(10)’) AS Color5,
a.b.value(‘Fruits[1]/Fruits1[1]’,‘varchar(10)’) AS Fruits1,
a.b.value(‘Fruits[1]/Fruits2[1]’,‘varchar(10)’) AS Fruits2,
a.b.value(‘Fruits[1]/Fruits3[1]’,‘varchar(10)’) AS Fruits3,
a.b.value(‘Fruits[1]/Fruits4[1]’,‘varchar(10)’) AS Fruits4
FROM @MyXML.nodes(‘SampleXML’) a(b)

Please note in above T-SQL statement XML attributes is read the same as XML Value.

SQL SERVER - Simple Example of Reading XML File Using T-SQL samplexml2

Reference : Pinal Dave (https://blog.sqlauthority.com)

,
Previous Post
SQL SERVER – Simple Example of Creating XML File Using T-SQL
Next Post
SQL SERVER – Restore Master Database – An Easy Solution

Related Posts

93 Comments. Leave new

  • Hi Pinal Dave,

    I am new to XML and i need to insert following XML data to SQL Table(PID,CID,phone..). Pl help me in this.

    thanks in advance.

    Reply
  • Jesus cortes
    June 13, 2018 3:26 am

    Thanks pinal

    Reply
  • Hi Dave,

    Is there any way to read the data, More in more generic manner, In above scripts columns names/XML tags are hard codes.
    If we can soft code it then it might be more helpful.

    Regards
    Lokesh

    Reply
