Which SSMS Version Can Connect to Which SQL Server Version

The query window connects, but a management dialog refuses to open. The SSMS version and the SQL Server engine version are separate products with separate support boundaries. A successful connection alone does not prove that an older tool can manage every feature on a newer server.

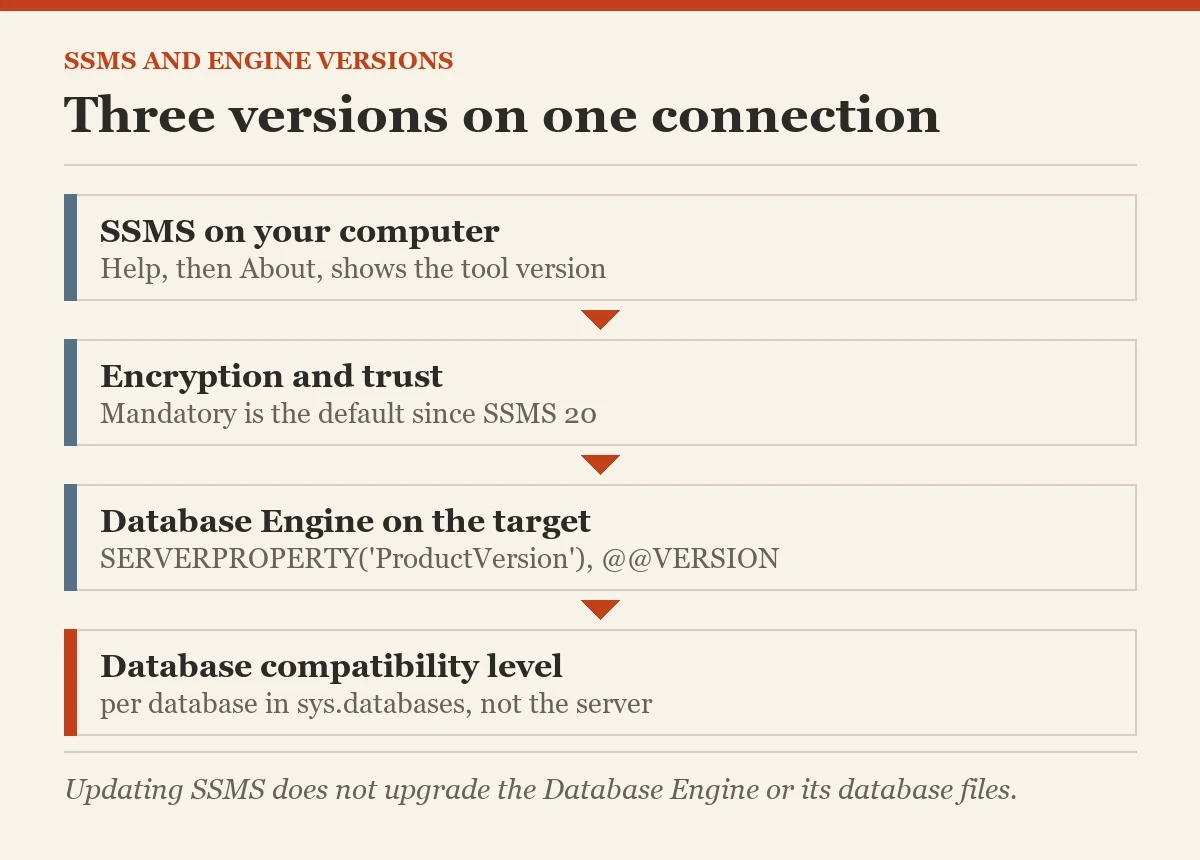

Identify the SSMS Version and the Engine Version Separately

SSMS runs on your Windows computer. SQL Server runs on the target host. Updating SSMS does not upgrade the Database Engine or its database files. Updating the engine does not update every administrator's workstation. Keep both product versions in troubleshooting notes so another person can reproduce the same connection and management behavior.

I ask for two versions before investigating a compatibility report. A screenshot showing SQL Server's build does not identify the editor that produced it. In SSMS, open Help, then About, to see the installed tool version. Which SSMS shortcut did you open for this connection? If several versions are installed, check the one currently open. Familiar icons are not a dependable inventory system.

Read the Server Build With SQL

Run this after connecting. SERVERPROPERTY reports the target engine's product version, patch level, and edition. @@VERSION adds a longer engine and platform description. Neither returns the installed SSMS version. Save the target name too, because connecting to a named instance or alias can land on a different engine than the workstation user expected.

SELECT CONVERT(nvarchar(128),SERVERPROPERTY('ServerName')) AS ConnectedServer,
       CONVERT(nvarchar(128),SERVERPROPERTY('ProductVersion')) AS EngineVersion,
       CONVERT(nvarchar(128),SERVERPROPERTY('ProductLevel')) AS ProductLevel,
       CONVERT(nvarchar(128),SERVERPROPERTY('ProductUpdateLevel')) AS UpdateLevel,
       CONVERT(nvarchar(128),SERVERPROPERTY('Edition')) AS EngineEdition;
SELECT @@VERSION AS EngineAndPlatform;

Some properties are unavailable on very old engines and return NULL. Use the engine's documented properties when investigating a legacy target. Do not read a NULL update level as proof that the server is current. Compare the complete engine build with the appropriate release documentation and your patch policy. Tool compatibility and engine servicing are related operational tasks, but they are different checks.

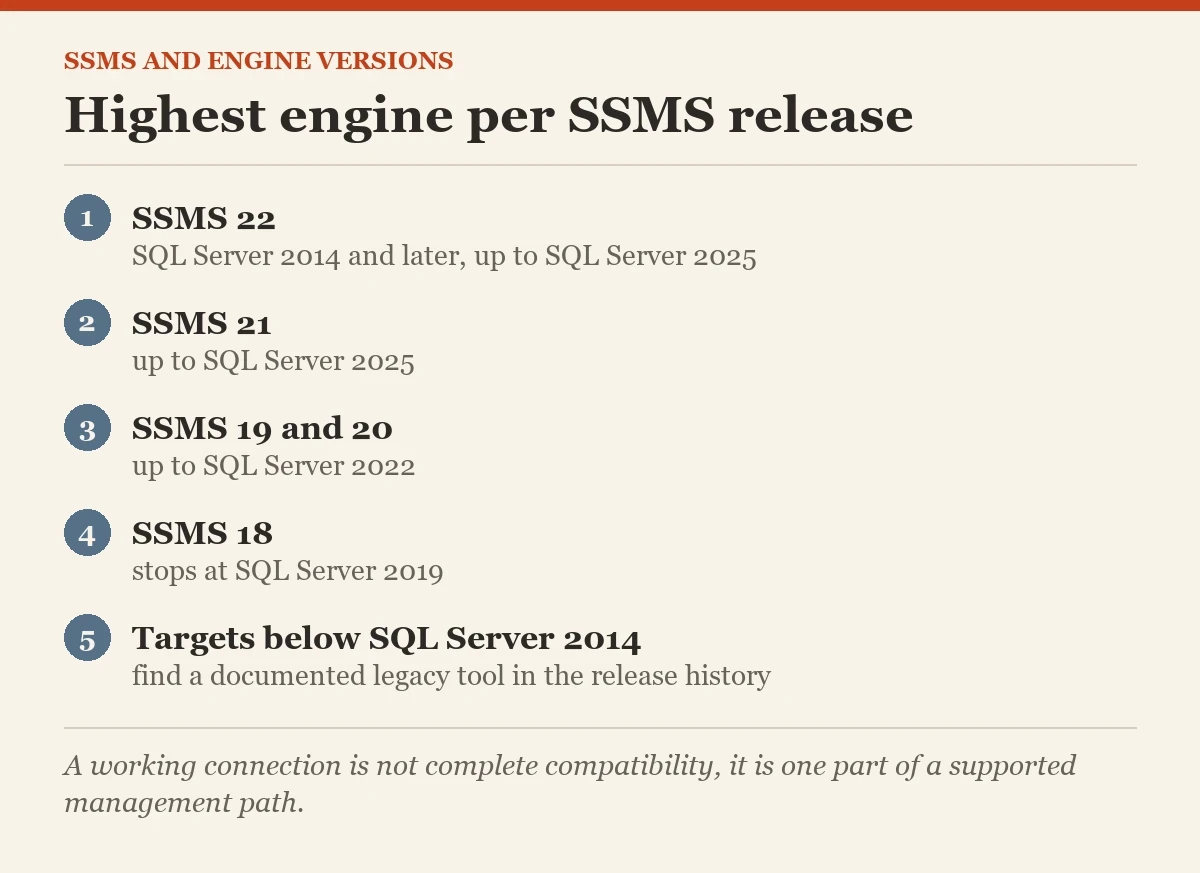

Match Each SSMS Version to Its Published Support Range

Microsoft's System requirements for SQL Server Management Studio lists SSMS 22 as working with SQL Server 2014 and later. Its highest supported Database Engine generation is SQL Server 2025. That makes the latest serviced SSMS 22 release the default for administering those supported targets, including an older server within that range. Check the current published requirements when selecting an installation.

The same table lists the highest supported engine for older tools. SSMS 21 reaches SQL Server 2025, SSMS 19 and 20 reach SQL Server 2022, and SSMS 18 stops at SQL Server 2019. That is a management support boundary, not a claim that every basic query against a later engine must fail. Older tools can connect and still lack the right dialogs, scripting support, or feature understanding.

These tool compatibility ranges do not extend an engine's lifecycle support. Check the server's servicing and support status separately, even when the current client supports managing that engine generation.

Historical SSMS 18 documentation covered SQL Server 2008 through SQL Server 2019. That historical compatibility does not make the old tool or server currently supported. For targets below the current minimum, use Microsoft's release history to identify a documented legacy tool and review its support status. Keep that access controlled while planning an engine migration. Do not call a successful connection a support contract.

Retire Enterprise Manager From Newer Targets

Enterprise Manager belongs to the SQL Server 2000 tool generation. SQL Server Management Studio replaced the combined Enterprise Manager and Query Analyzer workflow beginning with SQL Server 2005. Enterprise Manager is not the appropriate management tool for SQL Server 2005, 2008, or current engines. Use a tool documented for the target rather than trying to revive an unsupported management path.

I distinguish basic protocol connectivity from management completeness. A very old client can lack TLS support or current authentication features even before a SQL statement runs. An old metadata dialog can fail after a connection succeeds. Capture the exact stage and error. The connection test and the database designer are different components, so one working does not establish that the other is supported.

Keep Database Compatibility Level Out of the Tool Choice

A database compatibility level controls selected engine behavior and language support for that database. It does not change the server's product version. Lowering it does not make a new database file restorable on an old engine. It also does not teach an old SSMS dialog how to manage a feature introduced after that client was released.

SELECT name AS DatabaseName,compatibility_level,state_desc
FROM sys.databases
ORDER BY name;

Use the server version for the tool's target support check. Use each database's compatibility level when diagnosing the SQL it can execute and its query processing behavior. Record both for a language feature complaint. A query requiring a newer compatibility level can fail in a perfectly suitable current SSMS window. The editor sends SQL, while the engine decides whether that database can execute it.

Review Encryption When a New Tool Fails to Connect

SSMS 20 introduced Mandatory encryption as the default connection setting. Recent releases expose Encryption and Trust server certificate in the connection dialog. A newer client can reveal an existing certificate trust or name problem that an earlier connection path did not validate. Read the complete certificate error before changing authentication or restarting a healthy engine.

The durable fix is an appropriate server certificate, a trusted certificate chain, and a connection name matching the certificate identity. Trust server certificate skips certificate validation in relevant connection modes even while traffic remains encrypted. Treat that choice as an explicit, reviewed exception rather than the standard production fix. Turning encryption off to make a dialog close creates a different security contract.

Strict encryption uses newer protocol requirements supported by SQL Server 2022 and later. It is not the appropriate selection for an older engine that lacks that protocol. Review the documented mode for your target and policy. The engine's TLS configuration, Windows settings, and the client library all affect the handshake. Keep their errors separate from a login failure raised after that handshake succeeds.

Inspect the Current Session and Exact Destination

This query returns transport, encryption, and authentication information for the current SQL Server session. It cannot prove that every application connection uses the same settings. Run it through each actual client path you are validating. Monitoring permissions for connection metadata vary by engine release, so use an authorized identity when the view requires broader visibility.

SELECT session_id,net_transport,protocol_type,encrypt_option,auth_scheme,
       client_net_address,local_net_address,local_tcp_port
FROM sys.dm_exec_connections
WHERE session_id=@@SPID;
SELECT ORIGINAL_LOGIN() AS OriginalLogin,DB_NAME() AS CurrentDatabase;

For a named instance such as SERVER\INSTANCE, verify name resolution and the configured endpoint. An explicit approved TCP host and port can help separate instance discovery from the transport test. Check aliases too. A wrong endpoint can produce a plausible version result from the wrong server. The oldest troubleshooting trick remains asking which machine actually answered.

Install and Test the SSMS Version You Intend to Use

Current SSMS installs and updates independently of the engine, and recent releases use the Visual Studio Installer. Supported side by side installations help preserve a specific legacy workflow while validating the current tool. Name shortcuts clearly and check Help About after launch. Review specialized components separately, because legacy Integration Services service management has its own version alignment rules.

Test the tasks your team actually performs: queries, object scripting, backups, plans, security dialogs, and approved administrative extensions. A newer SSMS version is the right default for older engines within its documented range. Keep a justified exception for a specific unsupported legacy dependency, with an owner and replacement plan. Choose tools from documented compatibility and tested workflows, rather than from whichever shortcut has been on the desktop longest.

Related reading on this blog: SSMS and Execution Timeout: SQL in Sixty Seconds 209 and SQL SERVER 2022: Oldest Compatibility Level Supported.

A working connection is not complete compatibility, it is one part of a supported management path.
