Growth can push a database beyond the useful limits of its current design. Azure SQL Hyperscale separates major compute, storage, and log components, so its fit depends on the workload and recovery requirements.
Identify Which Limit the Database Is Reaching
Start with evidence of the constraint. Data size, write throughput, read demand, memory pressure, and query design are different problems. A slow query does not automatically indicate that the service tier is too small. Inspect execution plans, waits, resource metrics, and the application's latency before selecting an architectural change.
A database with substantial growth or a need for independent read compute is a reasonable candidate for evaluation. Check current service limits for the proposed configuration and region. Avoid treating a historical maximum or introductory feature description as the current capacity contract. I record the present limitation and the measurable requirement that the new design must satisfy.
Define normal and peak workloads separately. Include ingestion, reporting, index maintenance, and recovery exercises. The database can outgrow a storage boundary while its main performance issue remains an inefficient query. More capacity can accommodate that query without resolving why it reads so much data.

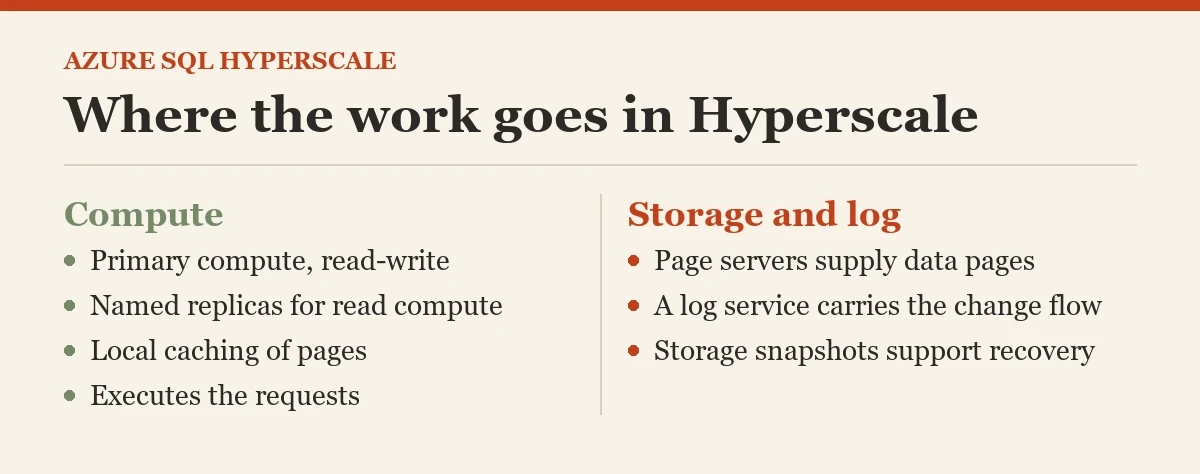

How the Hyperscale Architecture Splits the Work
The Hyperscale architecture separates database compute from distributed storage components. Page servers provide data pages, and a log service handles the log flow used by the system's components. Compute uses local caching as part of its page access behavior. This design differs from assuming one server holds all computation and storage in a single fixed resource boundary.
Separation changes the questions to ask during a test. Measure cached and less-cached reads, the effect of compute changes, write behavior, and the movement of data to replicas. Do not infer that every workload becomes faster merely because the storage architecture is different. The query still needs appropriate indexes and a workable access path.
Keep a simple mental model rather than assigning an invented speed guarantee to each component. The page service supplies pages, compute executes requests, and the log path supports durable change movement. Their combined behavior determines the application result. An architecture drawing can look impressively quiet while the workload is doing something expensive.
Check the Current Tier and Connection Role
Query the current Azure SQL Database properties through the database connection. Edition and service objective identify the deployed service configuration. Updateability helps distinguish a read-only connection from the primary's read-write context.
SELECT DB_NAME() AS DatabaseName,
DATABASEPROPERTYEX(DB_NAME(),'Edition') AS EditionName,
DATABASEPROPERTYEX(DB_NAME(),'ServiceObjective') AS ServiceObjective,
DATABASEPROPERTYEX(DB_NAME(),'Updateability') AS Updateability,
DATABASEPROPERTYEX(DB_NAME(),'ReplicaID') AS ReplicaID;Capture these values with each performance result. A test directed to a different replica or compute objective is not directly comparable without that context. Inspect pool membership and the service-management configuration if the deployment uses a pooled model. Check current limits for that exact arrangement instead of applying single-database assumptions to every deployment.
Do not interpret an unavailable property as proof of a different tier without reviewing the connection and platform scope. The script targets Azure SQL Database. A locally installed SQL Server instance exposes a different deployment model and does not become this service tier through a local compatibility-level change.
Test Hyperscale Reads on the Intended Replica
Named replicas provide separately addressable read compute for appropriate workloads. Give each read workload a deliberate destination and capacity choice. A named replica is not automatically selected merely because an application marks a primary connection as read-only intent. Verify the configured endpoint and the actual connection role.
Reporting and interactive reads can require different freshness and resource expectations. Measure the delay between accepted primary changes and visible replica data under representative conditions. Decide how the application handles that delay. A report requiring immediate visibility of its own write needs a reviewed routing strategy rather than an assumption that every read endpoint is current. Run the next check on the Azure SQL Database connection. Its resource view exists only there, so a local SQL Server instance reports an invalid object name.
SELECT DATABASEPROPERTYEX(DB_NAME(),'Updateability') AS Updateability,
DATABASEPROPERTYEX(DB_NAME(),'ReplicaID') AS ReplicaID;
SELECT TOP (20) end_time,avg_cpu_percent,avg_data_io_percent,
avg_log_write_percent
FROM sys.dm_db_resource_stats
ORDER BY end_time DESC;Run that diagnostic on each intended compute connection and label the result. Compare the workload's latency, resource pressure, and freshness there. I keep primary and replica results distinct so a successful report on spare read capacity does not hide pressure on the write path.
Include Cold Reads and Growth in the Trial
Test a representative data size and distribution rather than only a tiny schema copy. Include the frequently accessed working set and less-used historical data. Caching can make a narrow trial look better than a new compute instance or a first-time historical report. Record cache-related conditions as part of the comparison.
Inspect allocated object space to understand which structures drive growth. The following query reports a database's user-table allocation by object. It describes database pages, not the service's complete billable storage contract.
SELECT s.name AS SchemaName,t.name AS TableName,
SUM(p.reserved_page_count)*8.0/1024 AS ReservedMB,
SUM(p.used_page_count)*8.0/1024 AS UsedMB
FROM sys.dm_db_partition_stats AS p
JOIN sys.tables AS t ON t.object_id=p.object_id
JOIN sys.schemas AS s ON s.schema_id=t.schema_id
GROUP BY s.name,t.name
ORDER BY ReservedMB DESC;Project growth from the accepted retention and ingestion policy. Include temporary maintenance needs and the storage used by secondary structures. If removing unnecessary retained data addresses the original constraint, evaluate that simpler option too. Architecture should follow the service's actual requirement, including its data lifecycle.
Exercise Hyperscale Recovery and Migration
The service uses storage snapshots as part of its backup and restore design. That can reduce the relationship between recovery work and a traditional full-file copy, but it does not guarantee an instantaneous accepted service. Measure the restore scenario supported by the current service configuration, including the application checks afterward.
Test point-in-time recovery, destination access, authentication, and representative business validation. Review retention settings, regional recovery options, and any dependencies the database restore does not recreate. Check current limits and supported migration paths before moving. Entry into the tier and any supported reverse migration have conditions that require review for the actual source and target.
Which recovery scenario must work during a regional problem rather than a local mistake? Include it separately in the trial. A successful point-in-time restore in the same region cannot certify a different failure boundary. Keep achieved recovery point and complete recovery time with the tested scenario.
Make the Decision From Complete Service Evidence
Compare the current and proposed configurations using throughput, latency, read freshness, storage growth, maintenance behavior, recovery results, operating effort, and current pricing. Record any unsupported feature or migration condition that affects the application. Avoid promising a saving or performance percentage without the measured configuration.
Hyperscale can fit a database whose growth and compute separation requirements align with its architecture. Adopt it when the representative trial meets the accepted service criteria. Keep the evidence and the current configuration visible so later growth or workload changes can be evaluated against the original decision.
Related reading on this blog: Azure SQL Database or Managed Instance and Geo-Replication for Azure SQL.
A service tier is not a cure for every slow query, it is an architecture choice that must satisfy measured workload and recovery needs.
