A slow server can need more capacity, or it can be repeating unnecessary work. Before you scale up, identify the constrained resource and separate a small server from a bad access path.
Measure Pressure During the Complaint
Start with the business symptom: response time, throughput, missed batch windows, or growing queues. Capture a representative busy interval and the workload running then. A capacity decision based on an idle snapshot is little more than a shopping preference.
I ask which operation becomes slow before asking which component to replace. Hardware helps when demand exceeds usable capacity. It does not repair a wrong join, an application holding a transaction open, or repeated requests for data nobody uses. A bigger machine can repeat the same mistake with greater enthusiasm.
Use the read-only checks below with approved monitoring permissions. Most server performance DMVs on recent versions require VIEW SERVER PERFORMANCE STATE. Save timestamps and compare repeated observations. The scripts produce evidence to inspect on your own server, not universal thresholds or invented measurements.
Sustained CPU Demand as a Scale Up Signal
Use Windows performance monitoring to confirm sustained SQL Server process CPU demand. Then examine runnable workers on visible online schedulers. Workers waiting to run can support a CPU-capacity diagnosis, particularly when pressure persists throughout the complaint window.
Signal wait time measures the delay between a worker being signaled and actually running. It is included within total wait time. Compare interval deltas, not only lifetime totals. A large historical total blends unrelated workloads and cannot prove that today's processor is undersized.
A high CPU reading alone does not tell you whether more cores help. One serial query can be limited by a single core. Excessive parallel work can also consume capacity without useful throughput. Inspect the leading queries and their plans before changing processor count or parallelism settings.
SELECT scheduler_id, cpu_id, runnable_tasks_count,
current_tasks_count, active_workers_count, work_queue_count
FROM sys.dm_os_schedulers
WHERE status = N'VISIBLE ONLINE'
ORDER BY scheduler_id;
SELECT wait_type, waiting_tasks_count, wait_time_ms, signal_wait_time_ms
FROM sys.dm_os_wait_stats
WHERE signal_wait_time_ms > 0
ORDER BY signal_wait_time_ms DESC;Separate Memory Use From Memory Pressure
SQL Server uses available memory to cache data and support query execution. A large allocation is not automatically a problem. Look for pressure indicators, working-set changes, memory-grant waits, and repeated data reads that correspond to the complaint.
The next checks report Windows memory state, SQL Server process indicators, and page allocations grouped by clerk type. The clerk query describes its pages_kb allocations, not every category of memory in the process. Keep those scopes clear when comparing totals from different views.
Check max server memory and the demands of other processes before recommending additional RAM. An unnecessarily low configuration can constrain an otherwise capable machine. Conversely, giving SQL Server every possible byte can leave Windows or another required service short of memory. Fix the allocation policy when that is the actual limit.
SELECT total_physical_memory_kb, available_physical_memory_kb,
system_memory_state_desc
FROM sys.dm_os_sys_memory;
SELECT physical_memory_in_use_kb, memory_utilization_percentage,
process_physical_memory_low, process_virtual_memory_low
FROM sys.dm_os_process_memory;
SELECT TOP (15) type AS ClerkType, SUM(pages_kb) / 1024.0 AS PageAllocationMB
FROM sys.dm_os_memory_clerks
GROUP BY type
ORDER BY PageAllocationMB DESC;
SELECT name, value_in_use
FROM sys.configurations
WHERE name IN (N'max server memory (MB)', N'min server memory (MB)');Connect Page Reads to the Queries Causing Them
Repeated physical data-file reads can reflect a working set larger than the useful cache. They can also reflect unnecessarily large scans. Pair storage-read activity with query plans and logical reads before calling the problem a RAM shortage.
Use Query Store to identify statements contributing large read and CPU totals. Test their predicates, indexes, and returned columns on representative data. A selective query scanning a large table is a tuning lead. A well-tuned workload repeatedly touching more useful data than memory can hold is a capacity lead.
Memory-grant pressure also needs plan review. Poor cardinality estimates and excessive sorting can request too much workspace. More RAM provides room, but it does not explain why the query requested that room. Inspect estimates, spills, and concurrent grants before treating every pressure signal as a hardware order.
Measure Storage Latency Over an Interval
sys.dm_io_virtual_file_stats exposes read and write counts with accumulated stall time. Dividing stall time by operation count gives an average latency for that observation period. Lifetime averages mix quiet and busy periods, so capture before and after the workload you care about.
Run the first block, wait for the chosen workload interval, then run the second in the same session. The capture is local temporary evidence. It changes no database settings. Read and write latency are separate because data access and transaction-log hardening have different demands.
DROP TABLE IF EXISTS #IOBefore;
SELECT v.database_id, v.file_id, v.num_of_reads, v.num_of_writes,
v.io_stall_read_ms, v.io_stall_write_ms,
s.sqlserver_start_time AS EngineStartTime
INTO #IOBefore
FROM sys.dm_io_virtual_file_stats(NULL, NULL) AS v
CROSS JOIN sys.dm_os_sys_info AS s;
SELECT SYSUTCDATETIME() AS CapturedUtc;A restart or decreasing counter invalidates the subtraction. The next block detects those conditions for the files present in both snapshots. Newly added or removed files need separate handling. The comparison deliberately does not invent a delta for a file without a matching starting row.
DROP TABLE IF EXISTS #IOAfter;
SELECT v.database_id, v.file_id, v.num_of_reads, v.num_of_writes,
v.io_stall_read_ms, v.io_stall_write_ms,
s.sqlserver_start_time AS EngineStartTime
INTO #IOAfter
FROM sys.dm_io_virtual_file_stats(NULL, NULL) AS v
CROSS JOIN sys.dm_os_sys_info AS s;
IF EXISTS
(
SELECT 1 FROM #IOBefore AS b
JOIN #IOAfter AS a ON a.database_id = b.database_id AND a.file_id = b.file_id
WHERE a.EngineStartTime <> b.EngineStartTime
OR a.num_of_reads < b.num_of_reads OR a.num_of_writes < b.num_of_writes
OR a.io_stall_read_ms < b.io_stall_read_ms
OR a.io_stall_write_ms < b.io_stall_write_ms
)
THROW 50000, 'The file counter interval is invalid. Capture a new pair.', 1;
SELECT DB_NAME(a.database_id) AS DatabaseName, f.name AS FileName, f.type_desc,
a.num_of_reads - b.num_of_reads AS IntervalReads,
a.num_of_writes - b.num_of_writes AS IntervalWrites,
1.0 * (a.io_stall_read_ms - b.io_stall_read_ms)
/ NULLIF(a.num_of_reads - b.num_of_reads, 0) AS AverageReadMs,
1.0 * (a.io_stall_write_ms - b.io_stall_write_ms)
/ NULLIF(a.num_of_writes - b.num_of_writes, 0) AS AverageWriteMs
FROM #IOAfter AS a
JOIN #IOBefore AS b ON b.database_id = a.database_id AND b.file_id = a.file_id
JOIN sys.master_files AS f ON f.database_id = a.database_id AND f.file_id = a.file_id
ORDER BY AverageReadMs DESC, DatabaseName, FileName;
SELECT SYSUTCDATETIME() AS CapturedUtc;Prove the Useful Work Needs a Scale Up
Averages hide spikes, queue depth, and differences in I/O size. Compare the file results with workload rate, storage monitoring, and the application's latency target. There is no single average latency number that proves every storage system needs replacement.
I test the leading query improvements before finalizing a capacity recommendation. Compare the same business load after removing wasted reads or CPU. If sustained useful demand still exceeds the available resource, the evidence supports adding capacity rather than continuing to chase tiny query savings indefinitely.
Also check virtualization limits and edition limits. The operating system can expose resources that the configured SQL Server edition or allocation does not fully use. A purchase that leaves the engine's usable limit unchanged does not solve that limit. Verify the intended configuration before sizing the change.

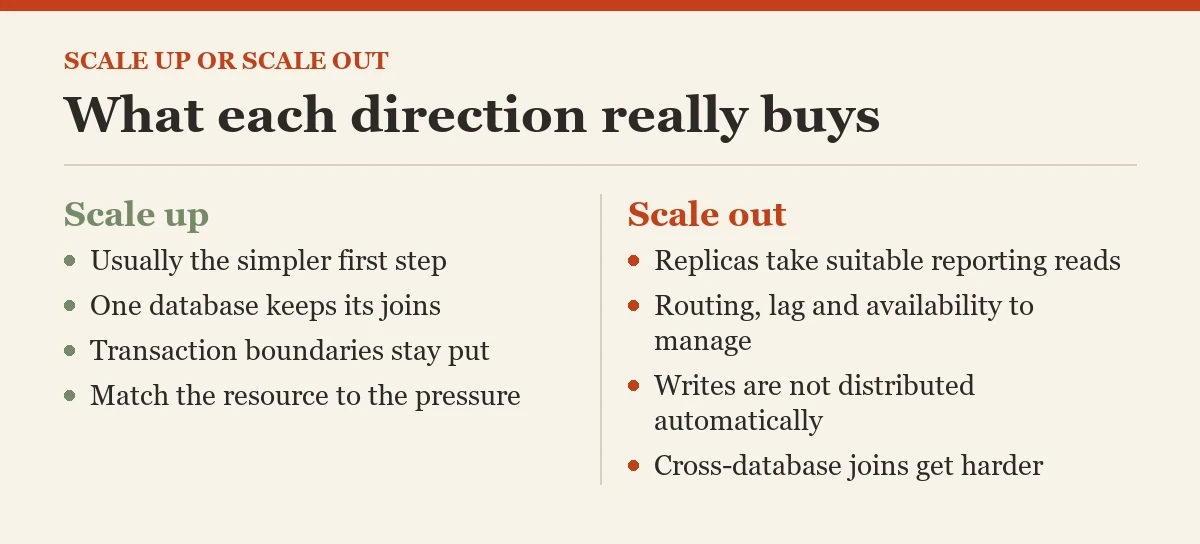

Scale Up Keeps Relational Operations Simple
For a relational database that needs additional useful capacity, scaling up is usually the simpler first step. One database retains its joins, transaction boundaries, and operational ownership. More usable memory, faster cores, or improved storage can relieve the identified constraint without splitting that model.
Choose the resource from evidence before you scale up. Additional cores do not fix a storage-bound commit path. More RAM does not remove lock contention. A faster storage device does not repair a serial CPU bottleneck. Match the change to the sustained pressure and validate its effect afterward. Which resource is actually limiting the useful work your users need?
Scale Out When the Work Can Be Separated
Readable replicas can move suitable reporting reads away from the writable primary. They introduce routing, lag, and availability considerations. They do not automatically distribute writes or make every read safe on a delayed copy. Decide which operations tolerate that behavior.
Splitting independent workloads or data domains across instances can be another valid step. Cross-database joins, coordinated transactions, and operational duplication become harder. Account for those costs before describing more servers as a transparent replacement for one larger server.
The choice to scale up should follow a measured capacity limit and a clear improvement target. Scale out when the workload can genuinely be divided. In either case, preserve comparable before and after evidence so the hardware decision has an answer beyond a new invoice.
Related reading on this blog: Choosing Hardware for SQL Server Now and Detecting CPU Pressure with Wait Statistics.
More hardware is not a diagnosis, it is a response to a measured capacity limit.
