Choosing Hardware for SQL Server Now

A bigger parts list does not guarantee a faster database. Choosing hardware for SQL Server now starts with the bottleneck. A larger core count, bigger memory pool, and faster storage can all help, but not equally for every system. Measure the bottleneck and buy the capacity that changes the result.

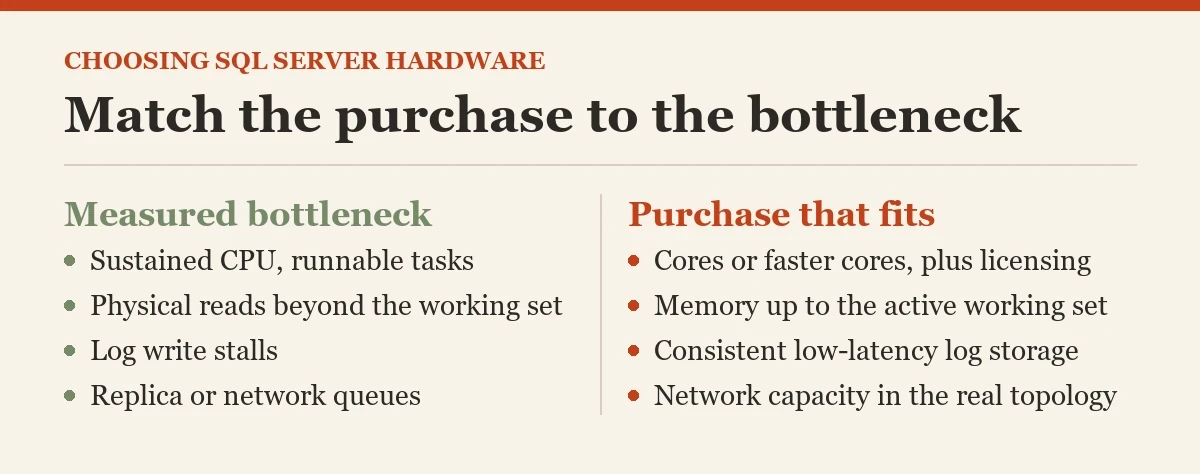

Start Choosing Hardware for SQL Server With the Current Bottleneck

Capture peak CPU, runnable tasks, memory grants, page reads, log waits, and file latency. A slow query caused by blocking is not fixed by a faster processor alone. A scan that reads unnecessary pages can consume any storage upgrade you buy. Tune obvious query and index issues before using hardware to compensate for them.

I separate one-off incidents from sustained demand. A server that hits high CPU for a few seconds during a maintenance task has different needs from one that runs saturated for hours. When choosing hardware for SQL Server, buy for an expected operating envelope with headroom, not for the tallest screenshot in a monitoring dashboard. Which upgrade removes the bottleneck you actually measured?

Balance Core Count and Speed

More cores support more concurrent CPU work, while faster cores help serial and latency-sensitive operations. SQL Server licensing can make added cores expensive, and edition limits can cap usable capacity. Compare workloads at realistic concurrency. A report with a parallel plan can benefit from cores, but poor parallelism settings or memory pressure can limit the gain.

I ask for per-core performance information and a practical benchmark, not just a marketing clock speed. Processor generation, cache, and memory bandwidth matter. Work with the licensing team on current terms before treating two hardware quotes as comparable.

Buy Memory for the Working Set

Memory holds frequently read pages, plans, and execution workspace. More memory can reduce physical reads when the active working set does not fit. Beyond that point, additional RAM can offer little benefit. Large memory grants can still cause concurrency issues if queries ask for more than they need.

Measure page reads, memory grants, and performance under peak load. Reserve memory for Windows and supporting processes. Check edition limits for the installed SQL Server version. I prefer a measured memory increase to a slogan such as one gigabyte per database gigabyte. Archive size is not the same as active data.

Pay Attention to Log Latency

The transaction log is central to commit speed. Consistent write latency under load matters more than a large sequential throughput number on an empty device. Ask how the storage behaves during concurrent backup, replica, and neighboring VM activity. Redundancy and durability requirements remain nonnegotiable.

The file-level query below shows cumulative log write stalls. Sample it twice over a known peak interval and calculate delta stall divided by delta writes. It is a diagnostic input, not a complete storage benchmark.

SELECT mf.name, mf.physical_name,
       vfs.num_of_writes, vfs.io_stall_write_ms,
       vfs.num_of_bytes_written
FROM sys.dm_io_virtual_file_stats(NULL, NULL) AS vfs
JOIN sys.master_files AS mf
  ON mf.database_id = vfs.database_id
 AND mf.file_id = vfs.file_id
WHERE mf.type_desc = 'LOG'
ORDER BY vfs.io_stall_write_ms DESC;

Test Data-File I/O Separately

Data-file reads and writes can be random, sequential, cached, or driven by scans and spills. A workload with a warm working set can care more about CPU than storage read latency. A reporting workload scanning beyond memory can care greatly about throughput. Ask the vendor for performance at the queue depth and block size your workload actually produces.

I compare SQL Server file stalls with host or array metrics at the same time. If the array reports healthy average latency while one database file stalls, inspect queueing and placement. Multiple databases can compete on one volume even when each has a different drive letter.

Account for Network and Replicas

Availability replicas, application traffic, backups, and bulk imports use network capacity. A primary can generate log faster than a remote secondary receives or replays it. Network design therefore belongs in hardware planning for high availability and distributed applications. Measure bandwidth and latency in the intended topology.

Do not buy a faster network merely because a database is slow. Check whether network waits or replica queues are the limiting factor. I include failover and backup traffic in tests because ordinary application usage can look fine until a recovery event requires extra capacity.

Consider Virtual and Physical Tradeoffs When Choosing Hardware for SQL Server

A virtual machine offers placement flexibility and simpler resizing, but its resource limits and neighbor contention need visibility. Physical hardware can provide predictable isolation, though it takes more planning to expand. Either choice can perform well if CPU, memory, storage, and recovery are engineered for the workload.

Document which team owns host placement, storage policies, and monitoring. A VM with reserved resources can be more predictable than an undermaintained physical server. I choose deployment mode for operational needs and measured performance, not from a blanket belief that one form is always faster.

Avoid Paying for Idle Capacity

Excess cores can raise license cost without helping a memory-bound query. Excess memory above the active working set can stay unused. A premium storage tier can be unnecessary for cold archives. Keep room for known growth, but distinguish headroom from waste. A staged upgrade path can be cheaper and easier to validate.

This inventory gives the instance’s current visible CPU count and memory setting. Use it beside workload measurements. It does not tell you what to buy.

SELECT cpu_count, scheduler_count,
       physical_memory_kb / 1024.0 AS physical_memory_mb
FROM sys.dm_os_sys_info;

SELECT name, value_in_use
FROM sys.configurations
WHERE name IN ('max server memory (MB)',
               'max degree of parallelism');

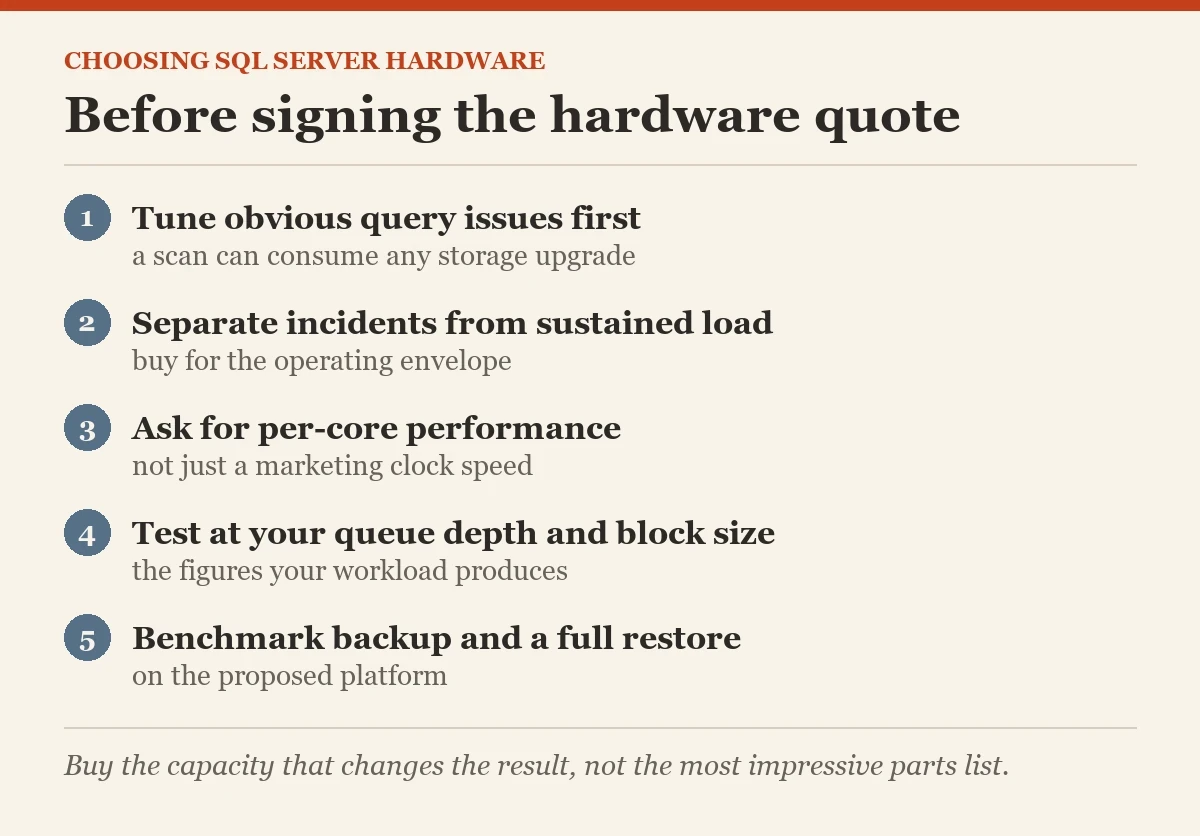

Prove the Decision When Choosing Hardware for SQL Server

Benchmark the important transactions and reports on the proposed hardware class. Include peak concurrency, data volume, backups, and a growth case. Compare total cost, license implications, and expected response times. A small pilot can reveal that the chosen upgrade moves the bottleneck rather than eliminating it.

Choosing hardware for SQL Server Now is about buying a measurable improvement. The best configuration is not the one with the most impressive parts list. It is the one that keeps the real workload responsive, recoverable, and affordable as demand grows.

A purchase comparison should include the cost of recovery. Faster primary storage has limited value if backups cannot finish or restores miss the agreed window. Test backup throughput and a full restore on the proposed platform. Include the replica or standby that would carry the workload during a failure.

Related reading on this blog: Navigating SQL Server CPU and Memory Usage Woes and How to Prevent Common SQL Server Performance Problems Efficiently With Smart Capacity Planning.

Choosing hardware for SQL Server Now is not buying the largest server, it is buying capacity the workload can use.
