Do not confuse the optimizer's timeout with an application's execution timeout. The early termination property describes why the optimizer stopped exploring alternatives.
Read the Early Termination Property First

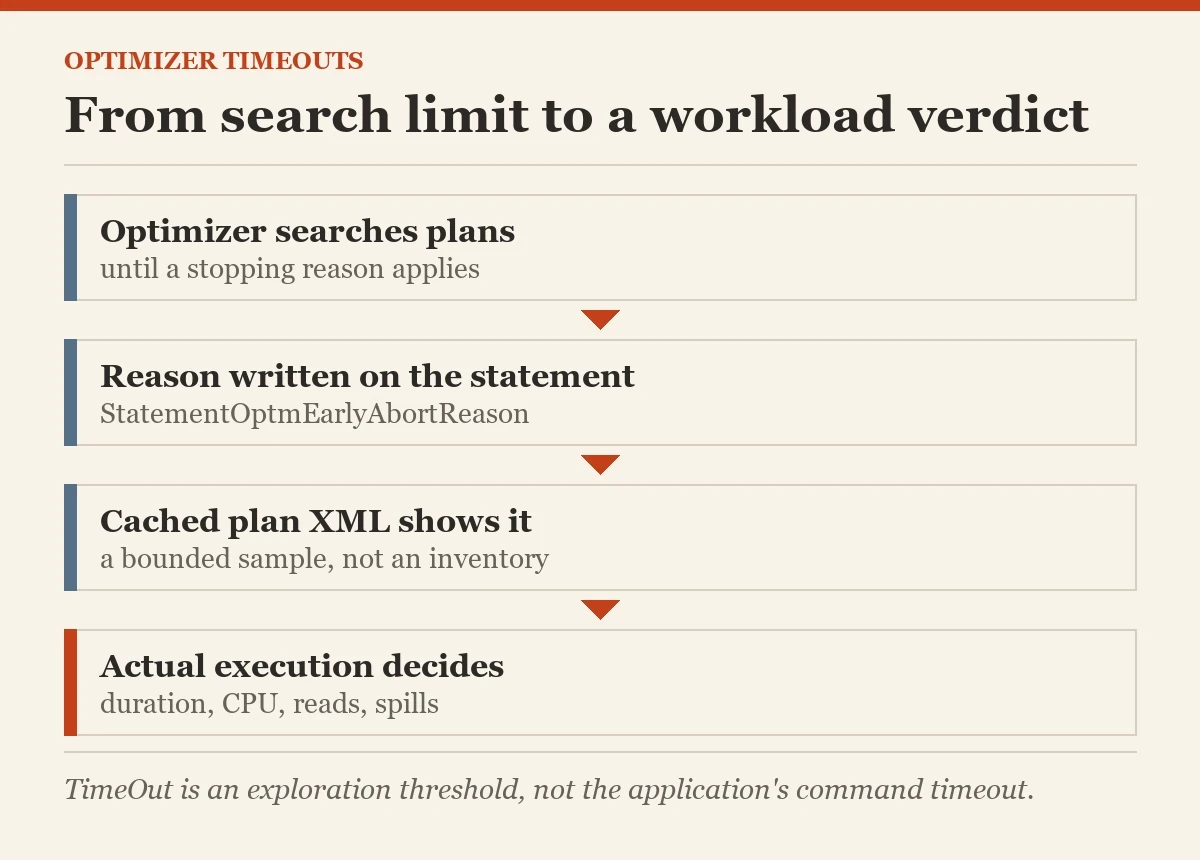

In SSMS, inspect the statement's Reason For Early Termination of Statement Optimization property. Its XML representation is StatementOptmEarlyAbortReason. The reason belongs to an optimized statement rather than every operator underneath it.

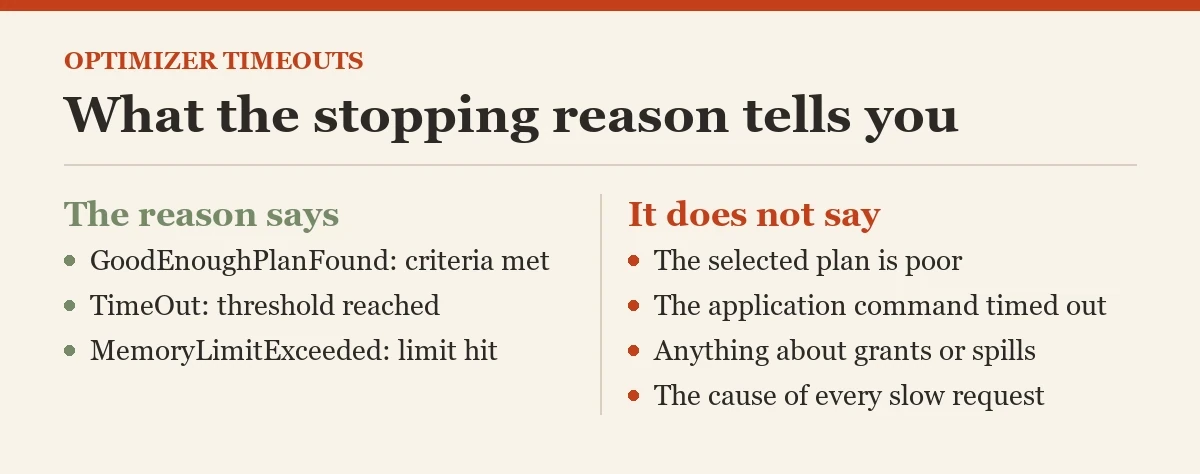

GoodEnoughPlanFound means the search found a plan satisfying its stopping criteria. That label is not an error message. A query with that reason can run efficiently and correctly.
TimeOut means the search reached its internal exploration threshold. That threshold concerns optimization work rather than a simple wall-clock duration. It is unrelated to the application's command timeout setting.
MemoryLimitExceeded indicates an optimization memory limit affected the search. It deserves a different investigation from an execution memory grant or sort spill. Do not merge those distinct memory concepts into one explanation.
I read the reason together with the statement's actual workload behavior. I also keep the plan's compilation context with the evidence. One XML attribute cannot explain every slow request by itself.
Find Early Termination Timeouts in the Plan Cache
The following query searches a limited sample of compiled cached plans. It returns individual statements carrying the TimeOut reason. The XML namespace is necessary because ShowPlan elements belong to that namespace.
Use an appropriately authorized diagnostic connection. SQL Server 2022 and later require the relevant server performance visibility permissions for these plan-cache diagnostics. Do not grant the application administrative access just to read plans.
WITH XMLNAMESPACES
(DEFAULT 'http://schemas.microsoft.com/sqlserver/2004/07/showplan'),
Candidates AS
(
SELECT TOP (50) plan_handle, usecounts
FROM sys.dm_exec_cached_plans
WHERE cacheobjtype = 'Compiled Plan'
ORDER BY usecounts DESC
)
SELECT C.plan_handle, C.usecounts,
S.Node.value('@StatementText', 'nvarchar(4000)') AS StatementText,
S.Node.value('@StatementOptmEarlyAbortReason', 'varchar(40)') AS AbortReason,
S.Node.value('@StatementSubTreeCost', 'float') AS EstimatedSubtreeCost,
P.query_plan
FROM Candidates AS C
CROSS APPLY sys.dm_exec_query_plan(C.plan_handle) AS P
CROSS APPLY P.query_plan.nodes
('//StmtSimple[@StatementOptmEarlyAbortReason="TimeOut"]') AS S(Node);The sample is deliberately bounded rather than a complete inventory. On my test instance it returned no rows, which is a normal result. An absent result says only that no matching statement appeared in that sample. Cache eviction, recompilation, and noncached execution affect what remains visible.
Usecounts describes cache use and is not a universal statement execution counter. Do not report it as the number of times the timed-out statement ran. A cached batch can contain several statements with different execution frequencies.
Cached plans contain compile-time choices rather than complete actual execution evidence. Capture an actual plan for a representative request when investigating runtime behavior. Protect query text because it can contain sensitive literal values.
Practice the XML Shape Without Manufacturing a Timeout
A small query does not reliably produce a real optimization timeout. Use a labeled XML fixture to practice extracting the property. That is safer than pretending an arbitrary join script always demonstrates the condition.
The fixture below contains only the elements needed for this extraction exercise. It is not an actual saved execution plan. Its synthetic reason and text are deliberately chosen inputs.
DECLARE @Fixture xml = N'
<ShowPlanXML xmlns="http://schemas.microsoft.com/sqlserver/2004/07/showplan">
<BatchSequence><Batch><Statements>
<StmtSimple StatementText="Synthetic example"
StatementOptmEarlyAbortReason="TimeOut"
StatementSubTreeCost="1.0" />
</Statements></Batch></BatchSequence>
</ShowPlanXML>';
WITH XMLNAMESPACES
(DEFAULT 'http://schemas.microsoft.com/sqlserver/2004/07/showplan')
SELECT S.Node.value('@StatementText', 'nvarchar(4000)') AS StatementText,
S.Node.value('@StatementOptmEarlyAbortReason', 'varchar(40)') AS AbortReason
FROM @Fixture.nodes('//StmtSimple') AS S(Node);The extraction can also report other reasons when its predicate changes. Keep the reason text distinct from a performance verdict. A diagnostic row identifies a candidate for review rather than proving that the selected plan is poor.
A complete search over a large cache can consume noticeable diagnostic resources. Narrow the scope to relevant database, query, or captured plan evidence. Coordinate broader collection with the workload owner when necessary.
Judge Plan Quality Through the Workload
A plan chosen after TimeOut can still be the best practical plan for the workload. Compare duration, CPU, reads, spills, and cardinality evidence. The reason only says that some possible alternatives remained unexplored.
A slow query without the property also deserves investigation. Blocking, data distribution, parameter sensitivity, and client behavior can dominate execution. Keep the search reason within the broader evidence rather than making it the default suspect.
Compare representative parameter values instead of one convenient request. A change that helps a large customer can hurt a small customer. Retain both result correctness and workload coverage when evaluating alternatives.
Version, compatibility level, statistics, and schema changes influence optimization. Record them with the original plan before testing a modification. A later compilation is not directly comparable without its surrounding context.
Simplify Repeated Work Deliberately
Expanded views and complex expressions can create a larger optimization problem than the visible statement suggests. Inspect their definitions before counting the tables in the outer query. Removing redundant joins can help when their semantics truly permit it.
A CTE gives a query a readable name but is not automatically materialized. Repeating a CTE reference can still leave repeated work in the optimization problem. A deliberate temporary intermediate table creates a different boundary with its own costs.
The following isolated example stages one grouped order result before joining customers. It illustrates a simplification pattern rather than a guaranteed timeout fix. Its small fixture is not expected to force an optimization timeout.
CREATE TABLE #DemoCustomer (CustomerId int NOT NULL PRIMARY KEY);
CREATE TABLE #DemoOrder
(
OrderId int NOT NULL PRIMARY KEY,
CustomerId int NOT NULL,
Amount decimal(12,2) NOT NULL
);
INSERT #DemoCustomer VALUES (1),(2),(3);
INSERT #DemoOrder VALUES (1,1,10),(2,1,20),(3,2,15);
SELECT CustomerId, COUNT_BIG(*) AS OrderCount,
SUM(Amount) AS TotalAmount, MAX(Amount) AS LargestAmount
INTO #OrderSummary
FROM #DemoOrder GROUP BY CustomerId;
CREATE UNIQUE CLUSTERED INDEX CX_OrderSummary
ON #OrderSummary(CustomerId);
SELECT C.CustomerId, COALESCE(S.OrderCount, 0) AS OrderCount,
COALESCE(S.TotalAmount, 0) AS TotalAmount, S.LargestAmount
FROM #DemoCustomer AS C
LEFT JOIN #OrderSummary AS S ON S.CustomerId = C.CustomerId;Preserve Correctness Across the New Boundary
Staging adds writes, reads, and tempdb usage to the execution. It can also change how statistics become available to later statements. Compare the full operation rather than only the final SELECT.
Multiple statements can observe changing source data at different moments. Use the approved consistency boundary when the result must describe one snapshot. Query simplification is not permission to relax the reporting contract.
Preserve outer-join behavior and NULL meaning during any rewrite. In the sample, a customer without orders has zero count and total. LargestAmount remains NULL because no actual order establishes a maximum.
Hints and forced join orders require stronger evidence than the timeout label alone. They can constrain choices that help other inputs. Start with understandable structure and current statistics before introducing a permanent optimizer constraint.
Decide Whether Early Termination Needs Intervention
Does the query already meet its service requirement across representative inputs? Then the reason alone does not justify a rewrite. Keep the evidence and revisit it when the workload or plan behavior changes.
I treat early termination as a useful clue during plan review. I evaluate the chosen plan before trying to enlarge the search. The optimizer does not owe every possible join order a farewell party.
For a justified change, compare equivalent results and complete resource costs before and after. Keep a practical reversal path for the approved deployment. Do not claim a performance improvement until actual representative executions support it.
Document the query meaning alongside the reason and tested alternative. Revisit the conclusion after major data or engine changes. A plan property is most useful when connected to a reproducible investigation.
Related reading on this blog: Execution Plans and Indexing Strategies: Quick Guide and Why Queries Recompile.
An optimization timeout is not a runtime failure, it is a search boundary whose practical effect needs evidence.
