SQL SERVER – 3 Queries to Detect Memory Issues

One of the most popular conversations during Comprehensive Database Performance Health Check is about CPU and memory issues. Detecting memory pressure is a pretty long process and it is not easy as well. If you are into analyzing the memory, this blog post is not for you.

SQL SERVER - 3 Queries to Detect Memory Issues sqlmemory-800x179

Memory Issues

This blog post is for people who just want to get started with memory pressure and understand at level 1 (not 100) if they have a memory issue or not.

Query 1: dm_os_sys_memory

SELECT total_physical_memory_kb/1024 [Total Physical Memory in MB],
available_physical_memory_kb/1024 [Physical Memory Available in MB],
system_memory_state_desc
FROM sys.dm_os_sys_memory;

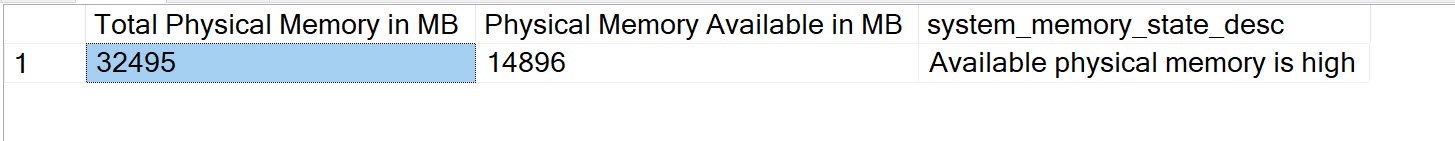

Here is the result of the query from my machine.

SQL SERVER - 3 Queries to Detect Memory Issues sqlmemory1

This query gives us Operating System’s Memory. In my machine, I have lots of physical memory available so the result says Available physical memory is high. This is good for the system and nothing to worry about.

Query 2: dm_os_process_memory

SELECT physical_memory_in_use_kb/1024 [Physical Memory Used in MB],
process_physical_memory_low [Physical Memory Low],
process_virtual_memory_low [Virtual Memory Low]
FROM sys.dm_os_process_memory;

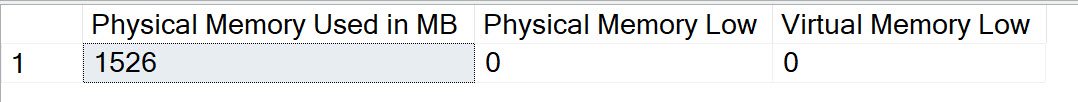

Here is the result of the query from my machine.

SQL SERVER - 3 Queries to Detect Memory Issues sqlmemory2

This query gives us the result of the SQL Server process running on the Operating System and also indicates if there is a memory low issue or not. In our case, both the values are zero and that is a good thing. If any of the LOW values is 1, it is a matter of concern and one should start investigating the memory issue.

Query 3: dm_os_sys_info

SELECT committed_kb/1024 [SQL Server Committed Memory in MB],
committed_target_kb/1024 [SQL Server Target Committed Memory in MB]
FROM sys.dm_os_sys_info;

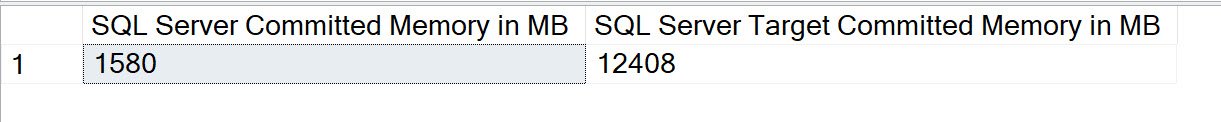

Here is the result of the query from my machine.

SQL SERVER - 3 Queries to Detect Memory Issues sqlmemory3

This query gives us how much memory has been committed to SQL Server and what is the current projection for the SQL Server target memory commitment. As the target committed memory is less than available memory for us, we are good in this query as well.

If there is a problem –

The most frequently asked question is what one should do if there is a problem. Well, I wish the answer was as simple as to ask you for increasing the memory. However, if there is a memory issue with your SQL Server configuration, database configuration, or how the query is set up, well, increasing the memory will not help.

If there is a memory problem, there needs to be a proper investigation into your system and we may have to start using other DMV’s as well as memory dump to identify where exactly the memory bottleneck is and how to fix it. I also take the help of the SQL Wait Stats to identify the overall server bottleneck.

Here are three things you can do if you have memory pressure in your SQL Server.

Step 1: Watch SQL Wait Stats for Performance and send the output to me for analysis. (Absolutely free)

Step 2: Fix Your Indexes with Missing Indexes and Unused Indexes script.

Step 3: Deep dive into memory analysis of your SQL Server. Read the memory-related blog posts here.

If you still have issues with SQL Server Performance, well there can be many other reasons for the bottleneck. Send me an email and let us start discussing, how can I help you run your SQL Server very fast.

Reference: Pinal Dave (http://blog.SQLAuthority.com)

, , ,
Previous Post
SQL SERVER – Map SQL Server Session ID to OS Thread ID
Next Post
Video Resources for 9 SQL SERVER Performance Tuning Tips

Related Posts

1 Comment. Leave new

  • subratmSubrat
    May 20, 2021 10:11 pm

    Good evening Sir.

    The Query 3: dm_os_sys_info is through error on version-

    “Microsoft SQL Server 2008 R2 (SP3-GDR) (KB4057113) – 10.50.6560.0 (X64)   Dec 28 2017 15:03:48   Copyright (c) Microsoft Corporation  Enterprise Edition (64-bit) on Windows NT 6.3 (Build 9600: ) ”

    Error getting as –
    Msg 207, Level 16, State 1, Line 1
    Invalid column name ‘committed_kb’.
    Msg 207, Level 16, State 1, Line 2
    Invalid column name ‘committed_target_kb’.

    I have verified the DMV “sys.dm_os_sys_info” as well.

    Can we use below as substitute for that to find committed and target memory for SQL Server as it is working good on mentioned version and edition –

    SELECT [counter_name], [cntr_value]
    FROM sys.dm_os_performance_counters
    WHERE
    [object_name] LIKE ‘%Memory Manager%’
    AND [counter_name] IN (‘Total Server Memory (KB)’, ‘Target Server Memory (KB)’)

    Regards,
    Subrat

    Reply
