SQL SERVER – Parameter Sniffing Simplest Example

Today we will see a very simple example of the Parameter Sniffing. I was asked by my client if I can explain to them what is the simplest example of the parameter sniffing during a recent consulting engagement of Comprehensive Database Performance Health Check. Let us see a very simple example of the same with the help of the latest sample database.

• SQL SERVER – Parameter Sniffing Simplest Example
  In this blog post, we discuss what actually is parameter sniffing and how we can overcome it with the help of recompiling the stored procedure.
• SQL SERVER – Parameter Sniffing and Local Variable in SP
  It is easy to overcome the parameter sniffing for the stored procedure by declaring the local variable inside the stored procedure.
• SQL SERVER – Parameter Sniffing and OPTIMIZE FOR UNKNOWN
  You can take advantage of the new query hint of Optimize For Unknown to simulate the local variable in the stored procedure. A very underutilized technique indeed.
• SQL SERVER – DATABASE SCOPED CONFIGURATION – PARAMETER SNIFFING
  This new database level enhancement was introduced recently which can help you overcome any issue with the parameter sniffing.
• SQL SERVER – Parameter Sniffing and OPTION (RECOMPILE)
  The oldest and most traditional technique to not cache the query plans and compile your stored procedure or queries every single time to get optimal performance.
• Performance and Recompiling Query – Summary
  This post summarizes the entire series of parameter sniffing, performance and recompiling query.

Parameter Sniffing

SQL Server creates an optimal plan for a stored procedure by using the parameters that are passed the first time to the stored procedure is executed is called Parameter Sniffing.

SQL Server does this exercise to build the execution plan once and use it multiple times without recreating the execution plan again and again. The compilation process of the stored procedure can take some precious time for the execution of the procedure is very large. This entire exercise is done to save those repeated moments recompiling the stored procedures.

While this works out great in most of the cases, there is often a negative impact of the parameter sniffing issue for the stored procedure.

Let us see a very simple example. To begin with, let us create the following stored procedure.

CREATE OR ALTER PROC GetCustomerOrders (@CustomerID INT)
AS
SELECT *
FROM WideWorldImporters.Sales.Orders
WHERE CustomerID = @CustomerID
GO

Now let us enable the actual execution plan for your query so we can, later on, inspect the execution plans.

First, run the stored procedure with the first value.

EXEC GetCustomerOrders 1060

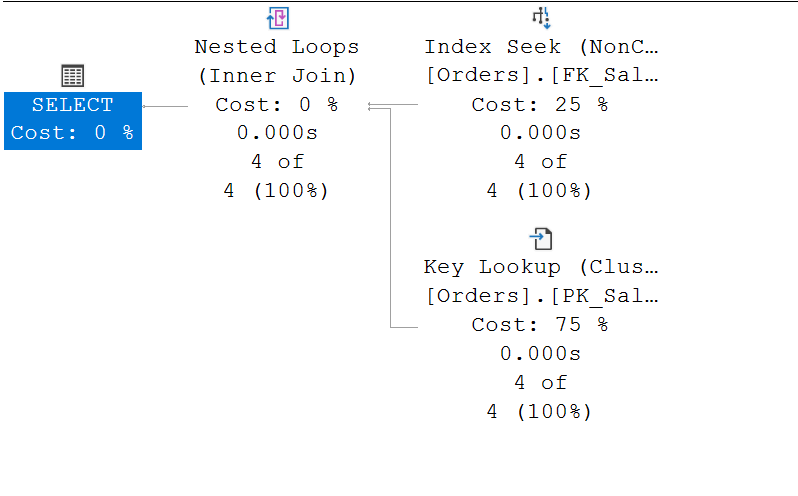

Let us observe the execution plan. You will notice in the execution plan we see operators reading 4 rows out of potential 4 rows.

Next, run the stored procedure with a different value.

EXEC GetCustomerOrders 90

Let us observe the execution plan. You will notice in the execution plan that the operator is reading 150 rows out of potential 4 rows.

Now let us look at the property of the execution plan by right-clicking on the left-most SELECT operator in the SSMS.

Pay attention to the parameter list. You will see here there is mention of the parameter @CustomerID. This will also demonstrate that the parameter is compiled with the value 1060 but currently it is running this with a value of 90.

This process of building the execution plan for the stored procedure with the initial run parameter is called Parameter Sniffing.

Performance Issue

In the real world, there is no performance issue of the execution plan of the new parameter is the same as the original execution plan. However, if the newer parameter is better suited for the different execution plan there can be huge potential performance degradation.

Let us understand this further by clearing the execution plan for our stored procedure by recompiling it.

EXEC sp_recompile 'GetCustomerOrders'

Now let us run the stored procedure again with the newer value of the 90 and you will see that the execution plan changes from the original execution plan. Earlier the execution plan displayed the count of the rows as 150 out of 4 which is not corrected as 150 of 150.

EXEC GetCustomerOrders 90

If you now run the stored procedure with the earlier parameter where we got 4 rows, you will notice that that query now uses this newer plan and display 4 out of 150. This may be a potential performance issue as the query may get more resources allocated.

EXEC GetCustomerOrders 1060

The simplest solution to overcome the parameter sniffing is to recompilation, however, it has also many different issues. I often discusses this in detail in my Comprehensive Database Performance Health Check.

Reference: Pinal Dave (https://blog.sqlauthority.com)
