Network Packet Size: When a Bigger Packet Helps Large Results

Large results can spend substantial time traveling from SQL Server to a client. Changing network packet size is worth testing only after the query, result volume, and client consumption are understood.

Separate Database Packets From Network Frames

SQL Server uses a packet size for its client communication protocol. That setting is not the Ethernet frame size or a direction to enable jumbo frames throughout a network. Different layers can divide and package the transmitted data independently. Keep the database setting, connection behavior, and physical network configuration distinct during the investigation.

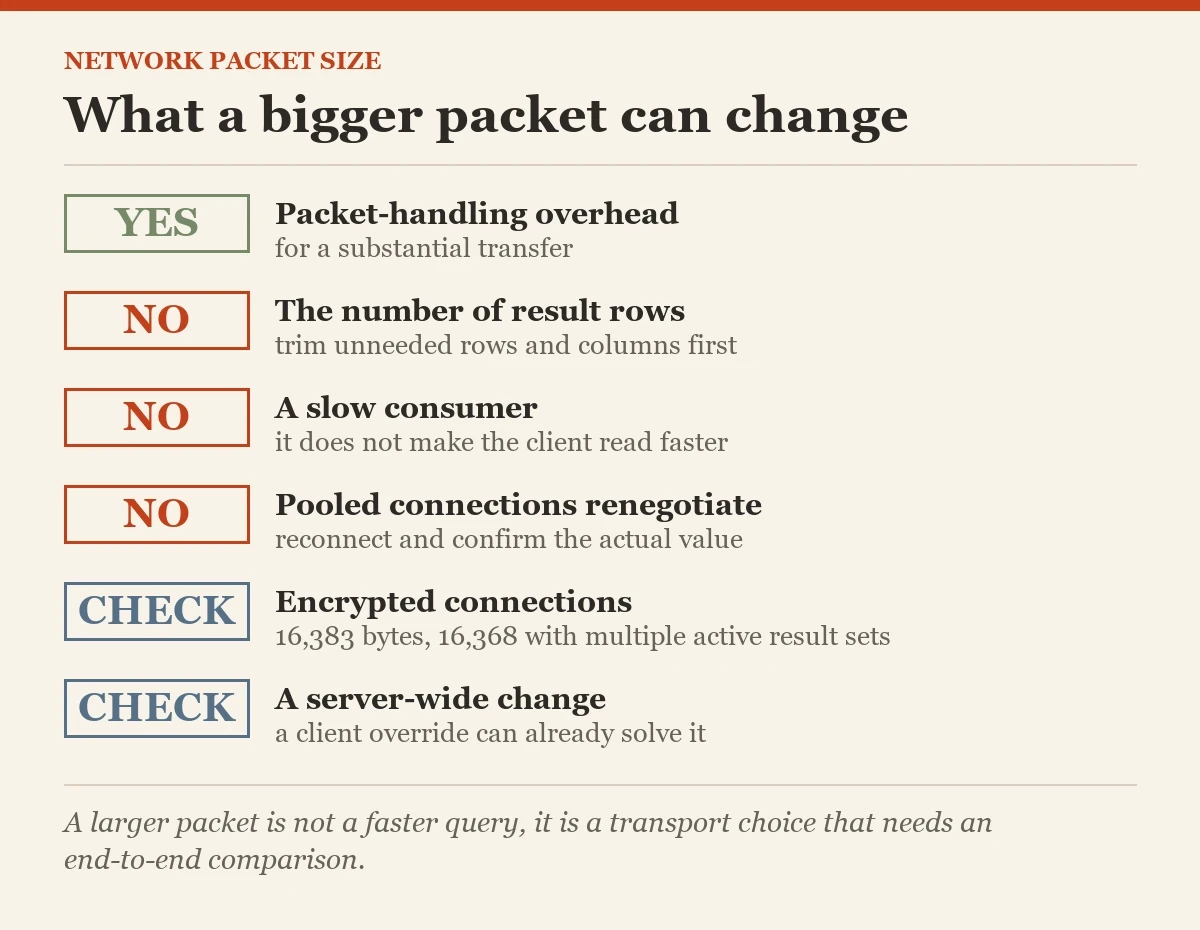

The server configuration defaults to 4,096 bytes, while a client can request its own value. A larger request can reduce packet-handling overhead for a substantial transfer, but it does not reduce the number of result rows or make a slow consumer read faster. I first verify what the workload sends and how the application consumes it.

Avoid changing a shared server setting just because one export is slow. A large transfer and a small transactional request have different characteristics. Test network packet size on the specific connection that performs the transfer and retain the normal workload as a comparison. The setting accepts a number without asking whether the result set needed to exist.

Read the Network Packet Size in Use

Read the configured default and the connection's negotiated size. Run the session-specific query through the same connection used by the application or test harness. A query-window connection can have a different setting from an application connection, even when both use the same instance.

SELECT name,value,value_in_use
FROM sys.configurations
WHERE name=N'network packet size (B)';
SELECT session_id,connection_id,net_transport,net_packet_size,
       encrypt_option,auth_scheme,client_net_address,
       connect_time,last_read,last_write
FROM sys.dm_exec_connections
WHERE session_id=@@SPID;

Broader inspection can join connections to sessions to identify the approved workload's program and host labels. Treat those labels as supplied client information, not proof of identity. Metadata visibility depends on the caller's permissions. SQL Server 2022 and later use the relevant server performance-state permission for these diagnostic views.

SELECT s.session_id,s.program_name,s.host_name,s.login_name,
       c.net_transport,c.net_packet_size,c.encrypt_option,
       c.connect_time
FROM sys.dm_exec_sessions AS s
JOIN sys.dm_exec_connections AS c ON c.session_id=s.session_id
WHERE s.is_user_process=1
ORDER BY s.program_name,s.session_id;

Record connection establishment time because a pooled application can reuse an older session. Changing a connection string does not retroactively renegotiate every connection already in a pool. Reconnect through the approved application process and confirm the actual value. Do not assume the requested number was accepted simply because it appears in configuration text.

Request a Network Packet Size From the Client

The following PowerShell example uses a Windows connection with integrated authentication and certificate validation. Replace the server and database placeholders with the approved isolated test destination. It requests 8,192 bytes, opens a new connection, and reads the negotiated value through that same session. Certificate validation needs a server certificate the client trusts, so a self-signed test certificate rejects this login until that is fixed.

# PowerShell
$Connection = New-Object System.Data.SqlClient.SqlConnection
$Connection.ConnectionString = 'Server=TestServer;Database=PacketLab;Integrated Security=True;Encrypt=True;TrustServerCertificate=False;Packet Size=8192'
try {
    $Connection.Open()
    $Command = $Connection.CreateCommand()
    $Command.CommandText = 'SELECT net_packet_size FROM sys.dm_exec_connections WHERE session_id=@@SPID;'
    $PacketBytes = $Command.ExecuteScalar()
    Write-Output $PacketBytes
} finally {
    $Connection.Dispose()
}

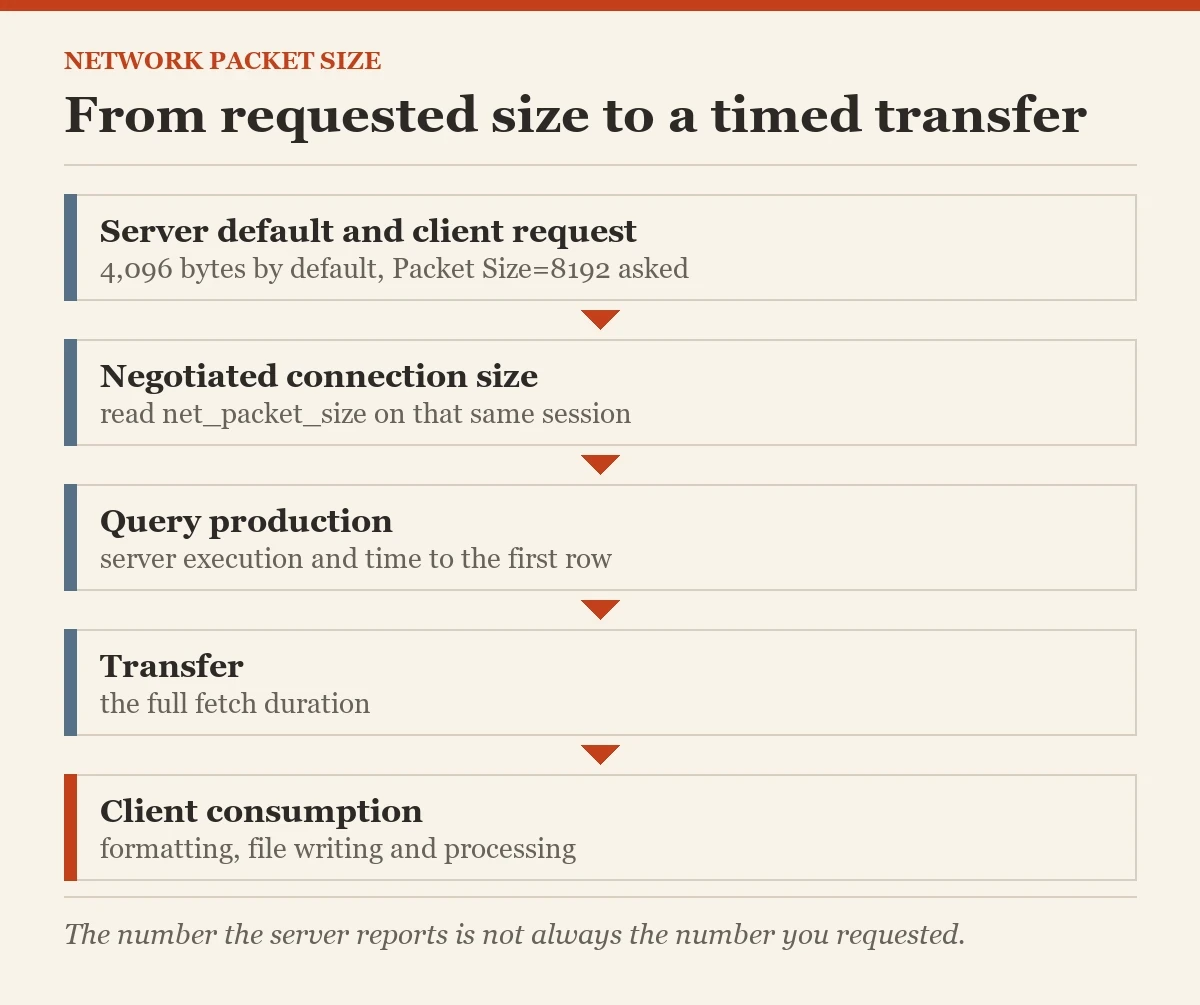

The number the server reports is not always the number you requested. Encryption and the client library can adjust it, so record both values. Keep every other connection option fixed between comparisons. Encryption, authentication, multiple active result sets, and the chosen client implementation can affect behavior. Test a supported size for that combination. Document the client build and requested value so another operator can repeat the experiment without guessing which defaults applied.

Encrypted connections have a documented maximum of 16,383 bytes. Multiple active result sets adds a protocol header and reduces that encrypted maximum to 16,368 bytes. Do not select the general unencrypted maximum for an encrypted connection or disable encryption to make a requested value work. An incompatible request is a configuration problem requiring a supported value.

Measure the Whole Large-Result Operation

Use the same query, data snapshot, destination, client, and row-consumption pattern for each run. Include connection setup consistently or measure it separately. Capture server execution time, time to the first row, full fetch duration, and the application's final processing time. Compare repeated runs so a single cache or network fluctuation does not become the conclusion.

Consume the entire result when the production operation does so. Fetching only its first rows cannot represent a full export. Conversely, do not load every row into memory if the production client streams them. Keep formatting, compression, file writing, and downstream processing consistent because those actions can dominate the transfer.

Which stage accounts for the delay after the first row arrives? That question distinguishes slow production, transfer, and client processing. I retain the baseline until the new connection setting improves the measured operation without worsening resource use or correctness. A larger packet has no special knowledge of application latency.

Understand Where a Larger Value Can Help

Bulk transfer and large text or binary results are reasonable candidates for a controlled comparison. The benefit depends on the data volume and communication overhead rather than the table's total size. A query returning a few narrow rows has less opportunity to benefit. Reducing unnecessary columns or rows can have a larger effect than changing transport packaging.

Check for a slow row-by-row consumer, excessive presentation work, or constrained client memory before attributing the delay to packets. Correlate ASYNC_NETWORK_IO waits with application behavior, but do not treat that wait name as proof of a defective network. The server can be waiting because the client is busy processing already delivered data.

If the application uses several connection roles, scope an accepted override to the relevant transfer role. Keep ordinary traffic on its reviewed settings. Confirm behavior after connection pooling, reconnects, and failover. An improvement seen only in a manually opened session needs another test before it becomes an application deployment decision.

Change the Server Network Packet Size Only With Evidence

A server-wide change affects connections that inherit that default. Review the broader client inventory, preserve the existing value, and arrange a reversal plan. The following administrative example sets a proposed lab value after that review. It needs the ALTER SETTINGS server permission, so run it only on an instance you are approved to change. Record the old advanced-options state and restore it afterward if the change process temporarily enabled it.

SELECT name,value_in_use FROM sys.configurations
WHERE name IN(N'show advanced options',N'network packet size (B)');
EXEC sys.sp_configure N'show advanced options',1;
RECONFIGURE;
EXEC sys.sp_configure N'network packet size',8192;
RECONFIGURE;

Verify newly established connections and repeat the accepted workload comparison. The configuration can take effect without an instance restart, but existing connection behavior still needs inspection. Include other affected applications in acceptance. If the specific client override already solves the measured problem, a global change requires its own justification.

Keep the Accepted Result and Its Limits

Record requested and negotiated sizes, encryption state, workload shape, measured durations, resource observations, and the selected setting. Revisit the decision after substantial client or workload changes. Avoid promising a universal percentage improvement from a synthetic test.

Network packet size is one transport parameter in an end-to-end data operation. An accepted change should improve that operation under its real constraints. Keep the smallest justified scope and retain the evidence that explains why it was selected.

Related reading on this blog: FIX: Error 17836: Length Specified in Network Packet Payload Did Not Match Number of Bytes Read; the Connection has been Closed and Network Protocol and IP Address.

A larger packet is not a faster query, it is a transport choice that needs an end-to-end comparison.
