SQL SERVER – Fix Error – Cannot use the backup file because it was originally formatted with sector size 4096 and is now on a device with sector size 512

Here is a recent email which I received from Madhu. He is a beginner in the SQL Server and when he tried to take a backup from SSMS (SQL Server Management Studio), he got error related to backup file. As soon as he sent me an email I knew what was the exact problem, he was facing and I was able to help him quickly. Let us first recreate the same error and later on see how to fix the same.

When he tried to take backup of his database, he received following error:

System.Data.SqlClient.SqlError: Cannot use the backup file because it was originally formatted with sector size 4096 and is now on a device with sector size 512. (Microsoft.SqlServer.Smo)

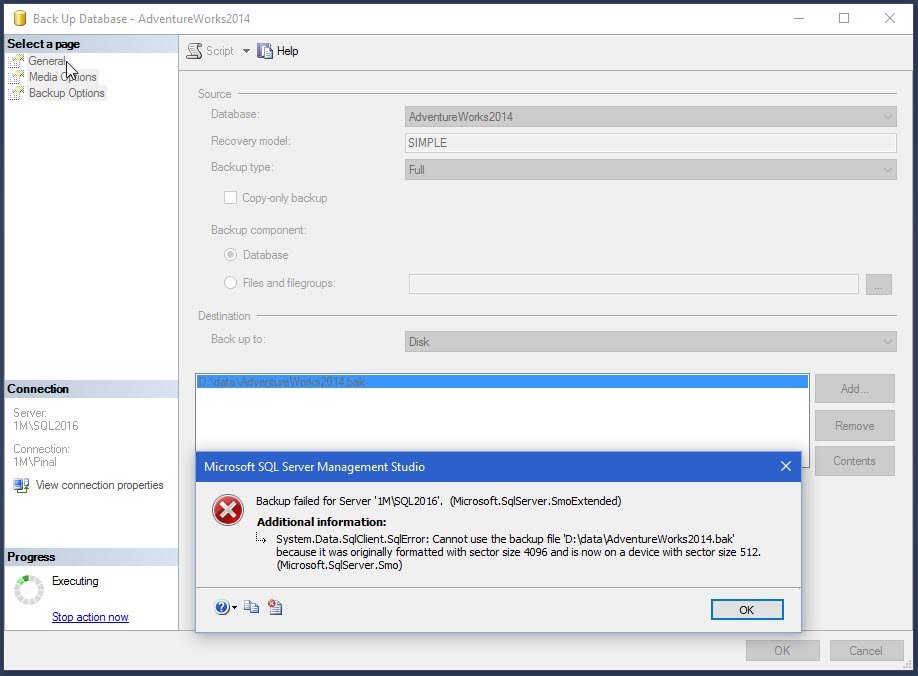

You can see in the following image the error window in SSMS.

SQL SERVER - Fix Error - Cannot use the backup file because it was originally formatted with sector size 4096 and is now on a device with sector size 512 sectorerror1

Well, the solution for the same is very easy.

Solution / Workaround:

The reason for the error is that the backup file which was created was created with different sector size and it is not possible to use it now. In the SSMS we can see there is already one file in the Destination.

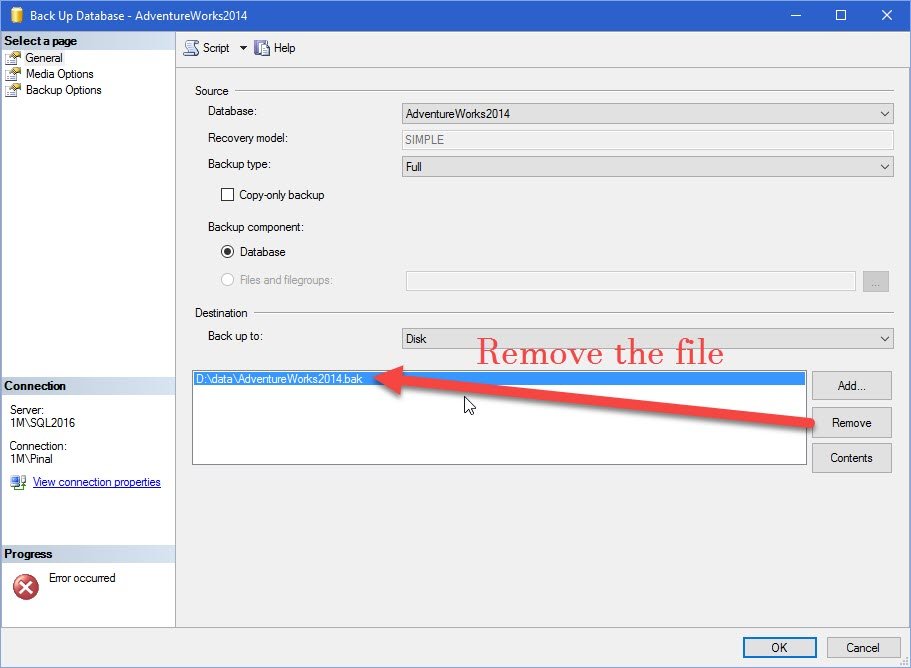

First remove the existing file in SSMS.

SQL SERVER - Fix Error - Cannot use the backup file because it was originally formatted with sector size 4096 and is now on a device with sector size 512 sectorerror2

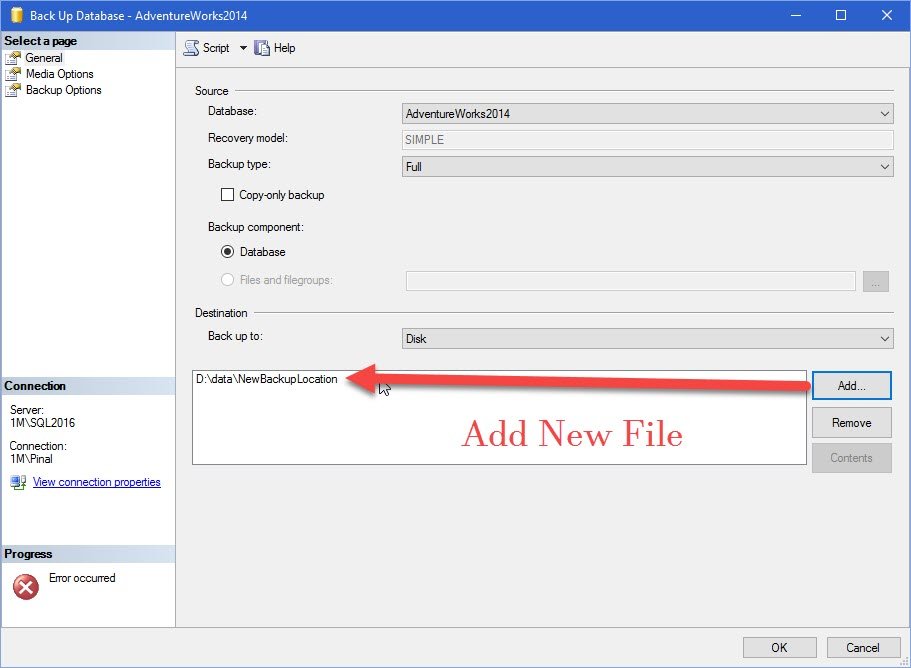

Next, add a new file to the backup location.

SQL SERVER - Fix Error - Cannot use the backup file because it was originally formatted with sector size 4096 and is now on a device with sector size 512 sectorerror3

That’s it! We are done!

Reference: Pinal Dave (https://blog.sqlauthority.com)
