Putting an image in the database makes ownership straightforward and retrieval easy to misuse. A varbinary(max) column stores the file's bytes without interpreting the picture. Those bytes then join the database's reads, logging, backups, and recovery responsibilities.
Define the File Record Around the varbinary(max) Bytes
Keep a stable image identity and useful metadata beside the payload. Original name, content type, and upload time help the application handle the file. Don't treat a filename extension as proof of the actual format.
Validate permitted content and size at the intake boundary. SQL Server stores binary values. It doesn't certify that those values are a safe or valid image for another component to decode.
I ask how the application will read metadata before designing the table. Most lists need names and dimensions, not every payload. Keep that access pattern efficient.
The sample below stores one placeholder file in a disposable database. It doesn't download anything or invent a measured image size. You supply a harmless local file and verify that the server-side access context can read it.
CREATE TABLE dbo.ImageStorageDemo
(
ImageId int NOT NULL PRIMARY KEY,
OriginalName nvarchar(260) NOT NULL,
ContentType varchar(100) NOT NULL,
Payload varbinary(max) NOT NULL,
UploadedAt datetime2 NOT NULL DEFAULT SYSUTCDATETIME()
);
INSERT dbo.ImageStorageDemo(ImageId,OriginalName,ContentType,Payload)
SELECT 1,N'sample.jpg','image/jpeg',BulkColumn
FROM OPENROWSET(BULK N'C:\SqlMedia\sample.jpg',SINGLE_BLOB) AS f;Read the File From the Server Context
OPENROWSET with SINGLE_BLOB returns the complete file as one binary value. The path is evaluated by SQL Server, not by the SSMS desktop. The file must exist on an accessible server path. If it is missing or unreadable, the INSERT fails with error 4860.
Required bulk permissions and filesystem access need review. A successful Windows open under your own account doesn't establish that the SQL execution context can read the same file.
Use application parameters for ordinary uploads when that matches the architecture. A server-local bulk file path is useful for controlled import, but it isn't a public upload interface. Don't build arbitrary BULK paths from untrusted input.
Keep the accepted storage source under the application's file policy. The database should receive approved bytes and metadata. It shouldn't read arbitrary paths submitted by a caller.
Return Bytes Only When They Are Needed

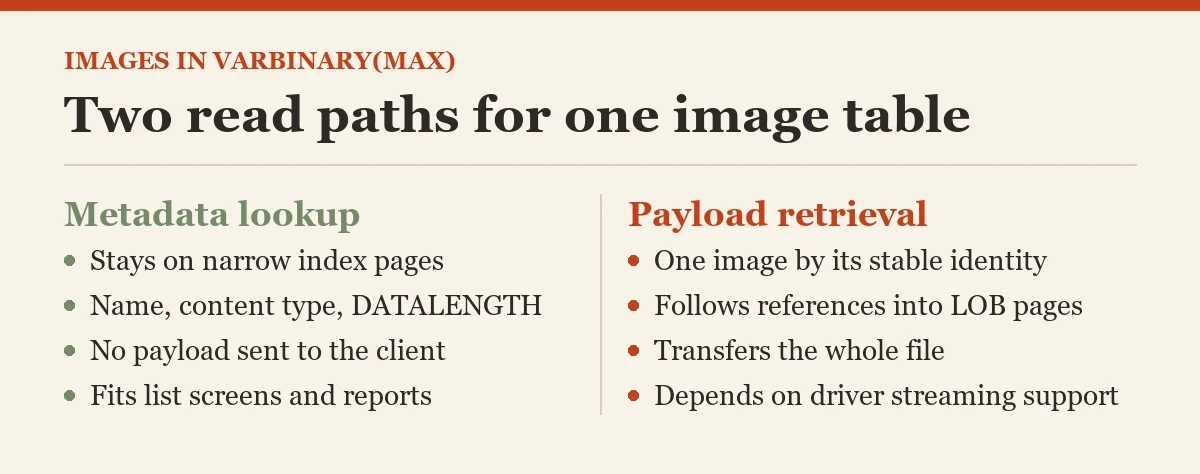

Retrieve the payload by its stable identity for a specific request. A metadata list can return DATALENGTH as the stored byte count without sending every image to the client. Check the application driver's streaming support for large results.
Buffering the entire value in application memory creates a separate resource cost. Using varbinary(max) doesn't decide how efficiently the consumer handles the response.
I review SELECT star queries when binary payloads enter an existing table. A query once returning small records can suddenly transfer all attachments. Use an explicit column list in list screens and background reports.
The payload belongs in a deliberate retrieval path. A thumbnail grid doesn't need to deliver every original photo. Remove accidental payload retrieval from its old SELECT star query.
SELECT ImageId,OriginalName,ContentType,DATALENGTH(Payload) AS PayloadBytes,UploadedAt
FROM dbo.ImageStorageDemo;
SELECT Payload FROM dbo.ImageStorageDemo WHERE ImageId = 1;
See Where varbinary(max) Lands: In-Row or LOB
Small large-value data can fit in-row when row space and settings allow. Larger values use off-row LOB storage with references from the base row. That changes the pages a payload retrieval needs to visit.
A narrow metadata index can avoid reading the large value for many requests. Allocation depends on stored data and table settings. Inspect it instead of assuming identical placement for every value.
The allocation DMV reports base and LOB page usage for the object. These are storage counters, not a per-image attribution. Keep index_id in the result to understand what is being reported.
Reading it needs VIEW DATABASE STATE, or VIEW DATABASE PERFORMANCE STATE on SQL Server 2022 and later. Read the server's values and compare a representative workload. Don't assign a precise page cost to each image from the sample file's displayed length alone.
SELECT index_id,row_count AS ApproximateRows,
in_row_used_page_count,lob_used_page_count,row_overflow_used_page_count
FROM sys.dm_db_partition_stats
WHERE object_id = OBJECT_ID(N'dbo.ImageStorageDemo');Include Logging and Recovery in the Cost

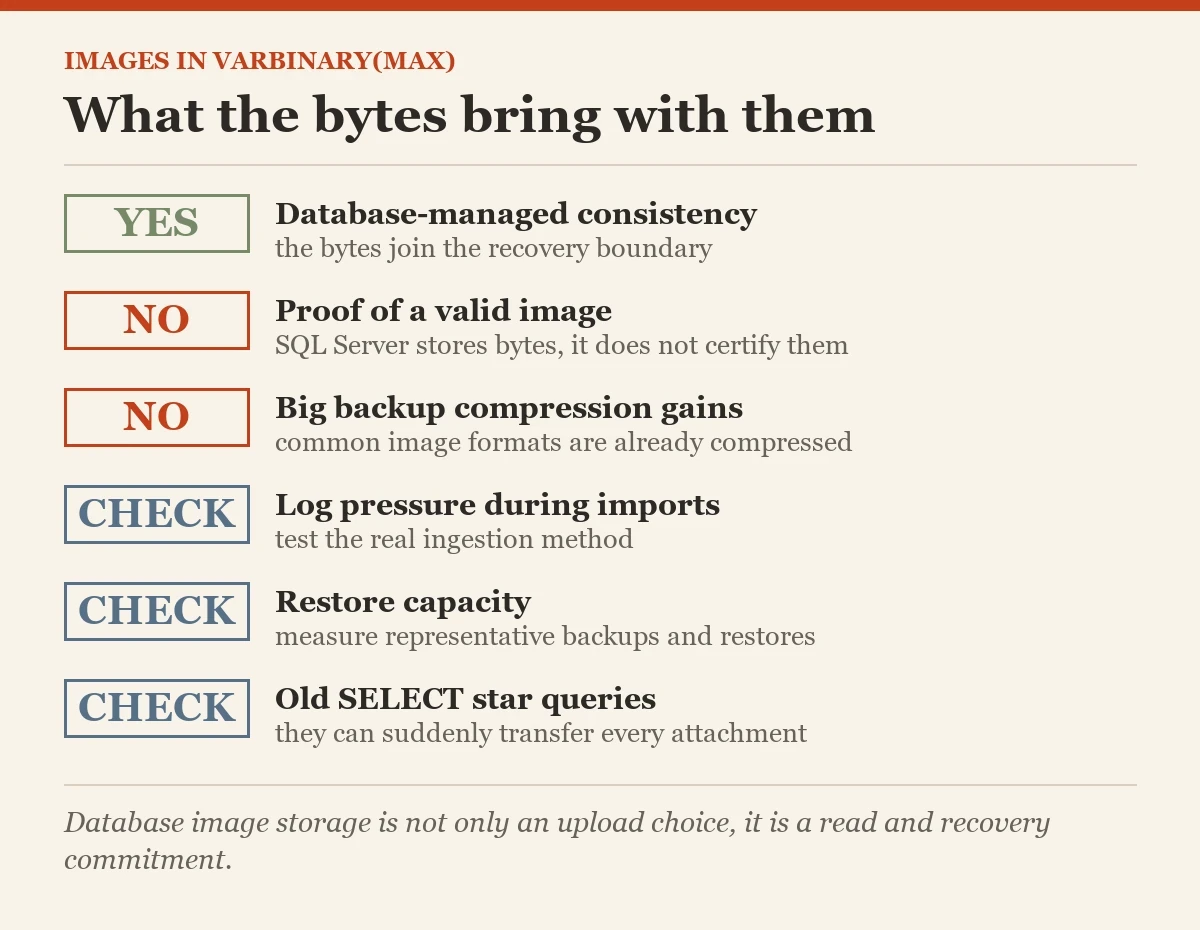

Inserting and changing payloads adds database write and logging work. Large imports can increase log pressure and extend maintenance windows. Test the actual ingestion method, recovery model, and backup schedule together.
A storage design that is easy for one upload needs a separate review for a batch of attachments. Keep maximum accepted file size in the application contract instead of leaving the type's capacity as the only limit.
Backups include stored payload data, and restores need capacity for it. Common image formats are already compressed, so database backup compression doesn't promise a large reduction for those bytes. Measure representative backups and full restores on your own server.
The binary column carries recovery benefits, including database-managed consistency, and recovery costs. Both belong in the design discussion before the file collection grows.
Compare a Path Column and FILESTREAM
A path column keeps content outside the database and records its location. That can simplify database backups but moves file consistency, permissions, retention, and recovery into another process. A database row and an external file can become separated if one operation succeeds and the other fails.
Plan reconciliation and ownership carefully. Cheaper database storage isn't the whole operational cost of that choice.
FILESTREAM keeps large binary content in database-managed file storage with its own setup and access model. It deserves evaluation for appropriate Windows workloads. It isn't a drop-in promise that every small image retrieval becomes faster.
Compare the deployed interfaces and recovery requirements. Which component should own the authoritative file? Answer that first, then select the storage option that supports the chosen ownership reliably.
Measure the varbinary(max) Requests You Actually Serve
Capture actual plans, STATISTICS IO, and application transfer behavior for metadata and payload requests separately. LOB reads appear in the resource evidence when those pages are accessed. Keep client buffering and network time distinct from database CPU.
A fast metadata query says little about delivery of a large original file. Those are separate paths with different operational limits and user-facing expectations.
Use varbinary(max) when database ownership and transactional consistency justify the bytes joining your recovery boundary. Keep payload access deliberate and intake limits explicit. Test backups and restores before scaling the collection.
The image doesn't become smaller because it fits neatly inside a row definition. A photograph in the database still expects disk space, bandwidth, and a place in the recovery plan.
Related reading on this blog: FileTable: Files You Can Open in Explorer and Query in T-SQL and Converting Deprecated TEXT, NTEXT and IMAGE Columns Safely.
Database image storage is not only an upload choice, it is a read and recovery commitment.
