Designing a Date Dimension

Every report seems to invent its own definition of a week. A date dimension puts those rules in one table with one row per calendar date. Fiscal periods and holidays become data the team can review instead of expressions repeated across dashboards.

Start the Date Dimension With One Row per Date

A date dimension has one row for each day in a planned range. The primary key can be a date or an integer date key, depending on warehouse convention. Useful columns include calendar year, month, day, weekday, month start, quarter, and readable labels. Keep definitions consistent across reports.

I ask how many calendars the business uses. A retail fiscal year and a standard calendar year can coexist, but they must not share ambiguous column names. The table should make the difference obvious to a reader.

Choose a Useful Date Range

Build dates far enough back for historical facts and far enough ahead for plans, subscriptions, or forecasts. Keep the range bounded and review it before the final year runs out. A calendar table is small relative to a fact table, so there is little benefit in generating only the current month.

I include leap days and year boundaries in tests. A script that works for ordinary Tuesdays can still fail the first report spanning December and January. Date logic collects edge cases like a magnet collects paper clips.

Create the Core Date Dimension Table

This example uses DateValue as the primary key and includes calendar fields. It leaves fiscal and holiday fields for a later controlled load because those rules vary by organization. Run it in a test database before adapting it to production naming and indexes.

One row per date is a constraint, not an aspiration. A primary key prevents duplicate dates even when the load is rerun.

CREATE TABLE dbo.DimDate
(
    DateValue date NOT NULL
        CONSTRAINT PK_DimDate PRIMARY KEY,
    CalendarYear smallint NOT NULL,
    CalendarMonth tinyint NOT NULL,
    DayOfMonth tinyint NOT NULL,
    MonthStart date NOT NULL,
    CalendarQuarter tinyint NOT NULL,
    IsWeekend bit NOT NULL,
    FiscalYear smallint NULL,
    FiscalPeriod tinyint NULL,
    IsHoliday bit NOT NULL
        CONSTRAINT DF_DimDate_IsHoliday DEFAULT (0)
);

Build Dates Repeatably

The following script builds one calendar year with a recursive CTE. Adjust start and stop dates to the needed range. DATENAME depends on language, so the weekend test uses a known anchor date and modular arithmetic instead. Validate that convention in your environment and test known Saturdays and Sundays.

I make the load idempotent with NOT EXISTS. That lets a scheduled extension add future dates without replacing established fiscal or holiday flags.

DECLARE @StartDate date = '2026-01-01';
DECLARE @EndDate date = '2027-01-01';
WITH d AS
(
    SELECT @StartDate AS DateValue
    UNION ALL
    SELECT DATEADD(day, 1, DateValue)
    FROM d
    WHERE DateValue < DATEADD(day, -1, @EndDate)
)
INSERT INTO dbo.DimDate
    (DateValue, CalendarYear, CalendarMonth,
     DayOfMonth, MonthStart, CalendarQuarter, IsWeekend)
SELECT d.DateValue, YEAR(d.DateValue), MONTH(d.DateValue),
       DAY(d.DateValue), DATEFROMPARTS(YEAR(d.DateValue), MONTH(d.DateValue), 1),
       DATEPART(quarter, d.DateValue),
       CASE WHEN DATEDIFF(day, '1900-01-01', d.DateValue) % 7 IN (5, 6)
            THEN 1 ELSE 0 END
FROM d
WHERE NOT EXISTS
    (SELECT 1 FROM dbo.DimDate AS x WHERE x.DateValue = d.DateValue)
OPTION (MAXRECURSION 0);

Model Fiscal Calendars Explicitly

A fiscal calendar can start in a different month or use a 4-4-5 pattern. A simple DATEADD formula is not enough for every business. Store fiscal year, period, week, and period start from an approved calendar source. Version the rules if the organization changes them.

I ask finance to confirm dates around fiscal year-end. That review is more valuable than an elegant formula no one trusts. For multiple businesses, use a calendar identifier or separate mapping table rather than forcing incompatible definitions into one fiscal column.

Treat Holidays as Managed Data

Holiday rules vary by country, region, employer, and year. Some holidays move when they land on a weekend. Store a holiday calendar with date, jurisdiction, name, and observance rule. Load it from an approved source and review it annually. Do not hard-code a few fixed dates and call the problem solved.

A report can join the holiday mapping to DimDate or use a scoped IsHoliday flag when there is only one business calendar. I prefer a separate table when several regions are involved. One date can be a working day for one office and a holiday for another.

Connect Facts Through the Date

A fact table can store the actual transaction timestamp and a date key for common reporting joins. Preserve the timestamp for detailed analysis. Derive the reporting date using the correct business time zone and cutoff. Filtering facts by a half-open timestamp range remains useful for direct queries.

I test a late-night transaction near a time-zone boundary. No calendar table can repair a date key computed from the wrong zone. The ETL rule needs to be documented with the reporting calendar.

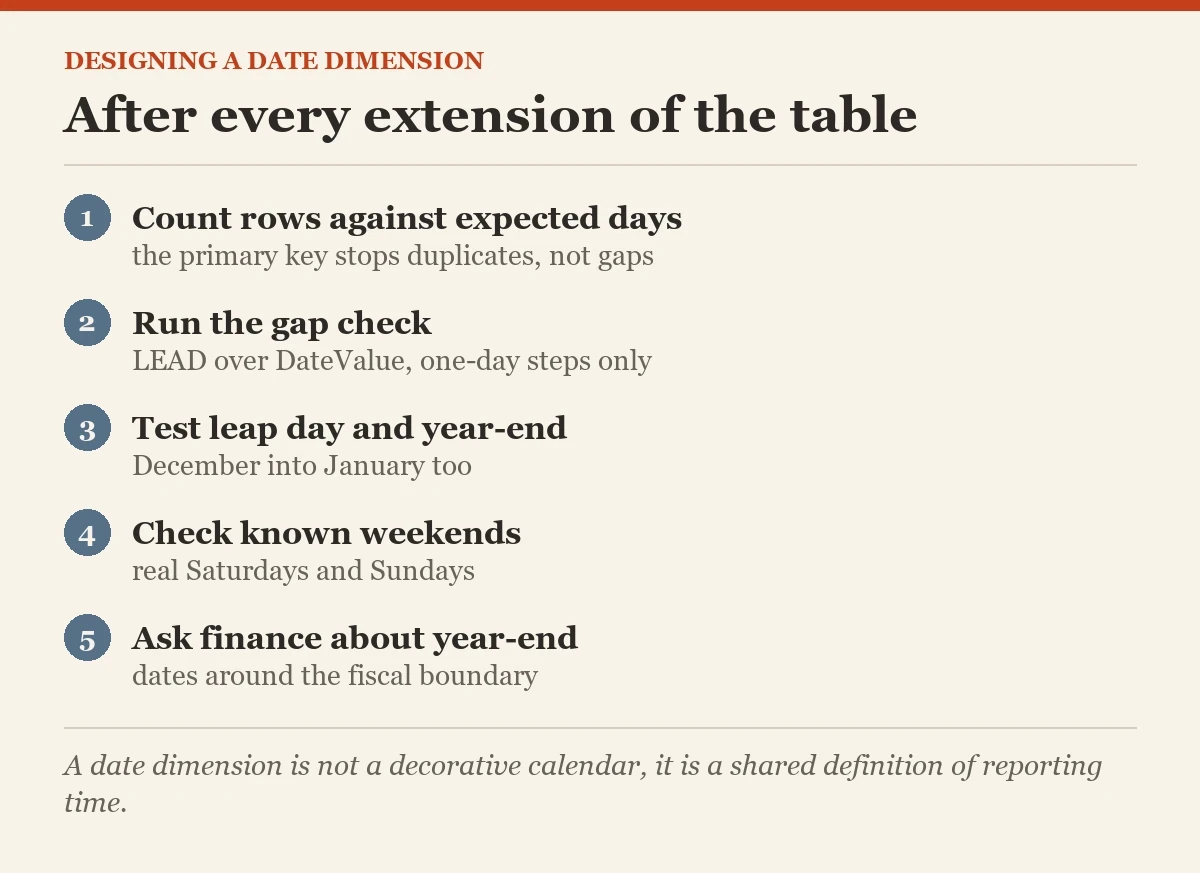

Check the Date Dimension for Gaps and Duplicates

Count rows against the expected number of days and look for missing dates. The primary key prevents duplicates, but it does not guarantee every date exists. Check leap day, year-end, fiscal boundaries, and known holidays. Run these checks after each extension of the table.

This query finds gaps by comparing consecutive rows. The expected one-day step is simple enough to audit.

WITH dates AS
(
    SELECT DateValue,
           LEAD(DateValue) OVER (ORDER BY DateValue) AS NextDate
    FROM dbo.DimDate
)
SELECT DateValue, NextDate
FROM dates
WHERE NextDate <> DATEADD(day, 1, DateValue)
ORDER BY DateValue;

Make the Table a Shared Contract

Use the same calendar table across marts when the calendar definition is shared. Give columns plain names and document fiscal and holiday sources. Add only attributes that reports actually need. A table with dozens of unexplained flags can become harder to use than a date expression.

A date dimension earns its place when two reports stop disagreeing about the same day. Build it once, test the boundaries, and let business owners approve the calendars. The SQL script creates rows; the agreed meaning makes them useful.

A date dimension should be generated from a controlled range and checked after every extension. Verify one row per calendar date, consecutive dates, expected weekdays, and fiscal boundary transitions. Holiday flags need an owner because holidays and observed dates can change by location and year.

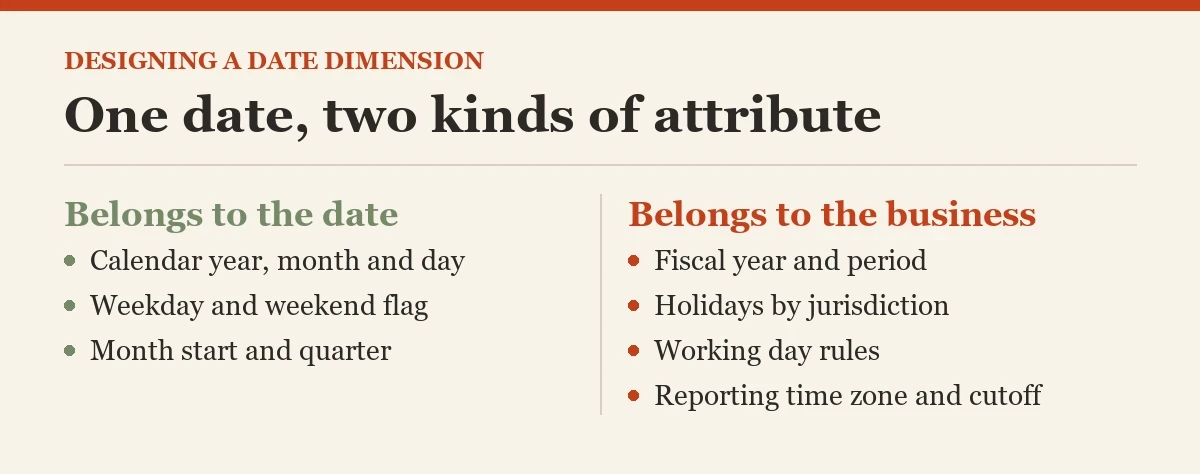

I separate universal date attributes from business calendars. Day of week and calendar month belong to the date. Fiscal periods and working day rules belong to an organization’s policy. A shared table can carry both when ownership is clear, but do not call a hard-coded holiday list permanent. Reports should join to a known date key and use the same fiscal definition. Otherwise two dashboards can disagree while both claim to use the same calendar table.

Who owns the fiscal calendar and holiday changes when a new year is added to the table?

When the range extends, rerun gap checks across the whole boundary between old and new dates. A script that starts one day late creates a missing date that only a future report will notice. A unique date constraint catches duplicates, not omissions.

Related reading on this blog: Find Business Days Between Dates and A Walkthrough: DATETRUNC Function in SQL Server.

A date dimension is not a decorative calendar, it is a shared definition of reporting time.
