When a node fails, what needs to move with the data? Availability groups or failover cluster instances answer that question differently. An availability group protects selected databases through separate replicas. A failover cluster instance moves an entire SQL Server instance between nodes that use shared storage. The failure you need to survive should lead the design.
Define the Failure First
List the failures the service must survive: SQL process crash, Windows node failure, storage failure, site outage, or accidental data change. Also define recovery time and acceptable data loss. No single feature covers all of these equally. A backup remains necessary even with a highly available replica, because deletion or corruption can propagate.

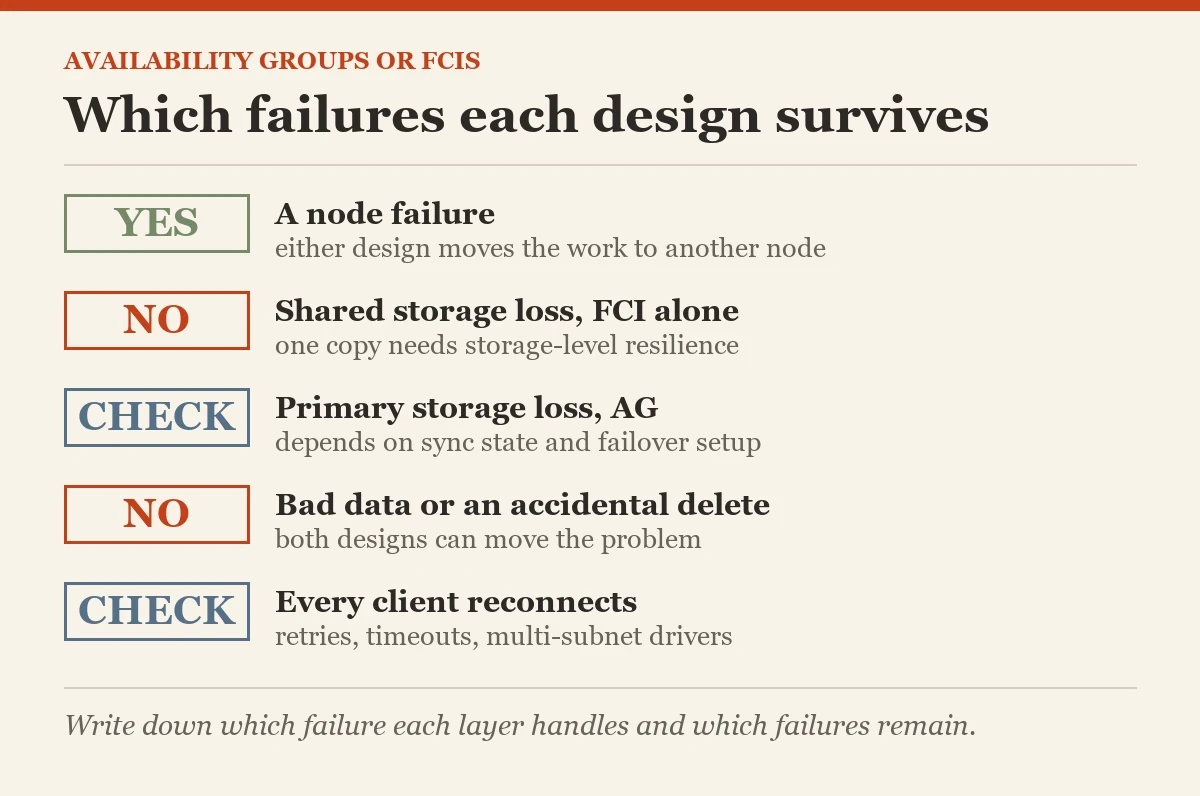

I write a small failure matrix before choosing a feature. That forces the team to say whether storage redundancy is part of the cluster design and whether a remote copy is needed. A green health dashboard is less useful than knowing what happens when a specific component disappears. What happens to this design if the shared storage fails?
What an Availability Group Protects
An availability group sends database log changes from a primary replica to secondary replicas on separate instances with separate storage. It can support synchronous or asynchronous data movement according to design and edition. The protected unit is a group of databases, not every instance-level object. Jobs, logins, linked servers, and other dependencies need their own synchronization or deployment process.
Readable secondaries can serve suitable reports where supported, but they add resource and licensing considerations. I check every application dependency, because a database that fails over without a matching login or job can be online yet incomplete as a service.
What a Failover Cluster Instance Protects
A failover cluster instance, or FCI, moves ownership of a SQL Server instance between Windows cluster nodes. The instance-level configuration and databases move together, making it useful when many databases and jobs must fail over as one unit. The nodes depend on shared storage that must itself be highly available.
An FCI protects against a node failure, but a single shared copy of data does not by itself protect against storage loss or logical corruption. Storage redundancy, backups, and possibly another recovery method still matter. I test the shared storage failure scenario explicitly instead of assuming two nodes mean two data copies.
Inspect the Current Topology
This query shows local availability group replicas and their roles when AGs exist. A separate server property indicates whether the current instance is clustered. These are inventory checks, not a complete high availability audit. Compare them with Windows cluster configuration, storage design, and application connection strings.
A server can host an AG replica and also be an FCI in supported designs, with specific restrictions. Do not infer the topology from an instance name alone.
SELECT SERVERPROPERTY('IsClustered') AS is_clustered,
SERVERPROPERTY('Edition') AS edition;
SELECT ag.name AS availability_group,
ar.replica_server_name,
ars.role_desc, ars.connected_state_desc
FROM sys.availability_groups AS ag
JOIN sys.availability_replicas AS ar
ON ar.group_id = ag.group_id
JOIN sys.dm_hadr_availability_replica_states AS ars
ON ars.replica_id = ar.replica_id;
Compare Storage Failure in Availability Groups and Failover Cluster Instances

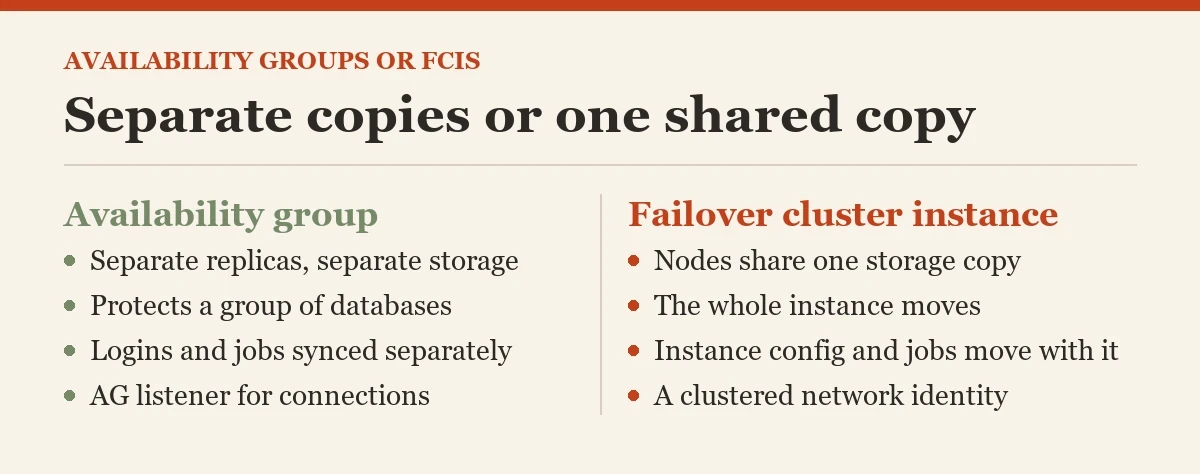

AG replicas have separate database copies, so a primary’s storage failure can leave another copy available, subject to synchronization state and failover configuration. FCI nodes share the instance’s storage, so node failover cannot recover from loss of that shared data path without storage-level resilience. The distinction should be visible in the architecture diagram.
Synchronous commit can reduce data-loss exposure but can add commit latency when the replica path is slow. Asynchronous replicas can span distance more comfortably but can lag. I align mode with recovery objectives and measure send and redo queues. Feature names do not guarantee a particular recovery point.
Consider Application Connections
An AG listener provides a stable endpoint for databases in the group, while an FCI has a clustered network identity for the instance. Applications still need tested retry behavior, timeouts, and correct database selection. Multi-subnet deployments need client driver and connection-string review. A successful SQL failover does not prove every application reconnects promptly.
I include connection pools, background jobs, and reporting clients in drills. Some clients hold old connections or connect to a physical node name. Those hidden dependencies can turn a short database transition into a long service outage. The application path is part of the design.
Account for Edition and Licensing in Availability Groups and Failover Cluster Instances
Feature support and replica capabilities vary by SQL Server edition and version. Readable secondaries and additional replicas can require licensing. Verify current product documentation and the organization’s license agreement before approving a topology. Do not assume a passive node can serve reports without changing cost or entitlement.
Hardware, storage, Windows clustering, monitoring, and operational skills also contribute to total cost. An FCI can be simpler for instance-level movement in some environments. An AG can provide independent data copies and read offload in others. I cost the full service, including backup and failover testing.
Keep Backups and Consistency Checks
Both availability groups and failover cluster instances can move a problem if the primary writes bad data. Neither replaces full, differential, and log backup strategy where required, nor regular restore tests and integrity checks. Plan how backups run on replicas where supported and what happens after failover. Avoid leaving the recovery plan attached to a node that is no longer primary.
I verify that logins, jobs, certificates, and external services remain usable after a planned transition. The SQL engine can report a healthy replica while an application dependency is missing. A complete recovery target is an application working for users, not a green cluster icon.
Choose Availability Groups or Failover Cluster Instances by the Protection Boundary
If the requirement is instance-level movement and shared storage is robust, an FCI can fit. If independent database copies, remote recovery, or readable replicas are central, an AG can fit. Some architectures combine them, adding complexity for a reason. Write down which failure each layer handles and which failures remain.
Availability groups or failover cluster instances should be selected through a tested failure matrix, recovery objectives, and operational capacity. The acronym on the architecture slide is the easy part. The restore and failover drill is where the design becomes credible.
SELECT DB_NAME(database_id) AS database_name,
is_primary_replica,
synchronization_state_desc,
synchronization_health_desc
FROM sys.dm_hadr_database_replica_states
WHERE is_local = 1;Related reading on this blog: Steps to Change IP Address of SQL Server Failover Cluster Instance and Find Instance Name for Availability Group Listener.
The choice between availability groups and failover cluster instances is not a feature contest, it is a choice of protection boundary.
