After an AG failover, one application reconnects quickly while another waits through a long timeout. The difference usually starts with how each client handles a listener with addresses in several subnets.
Understand the Listener Address Set

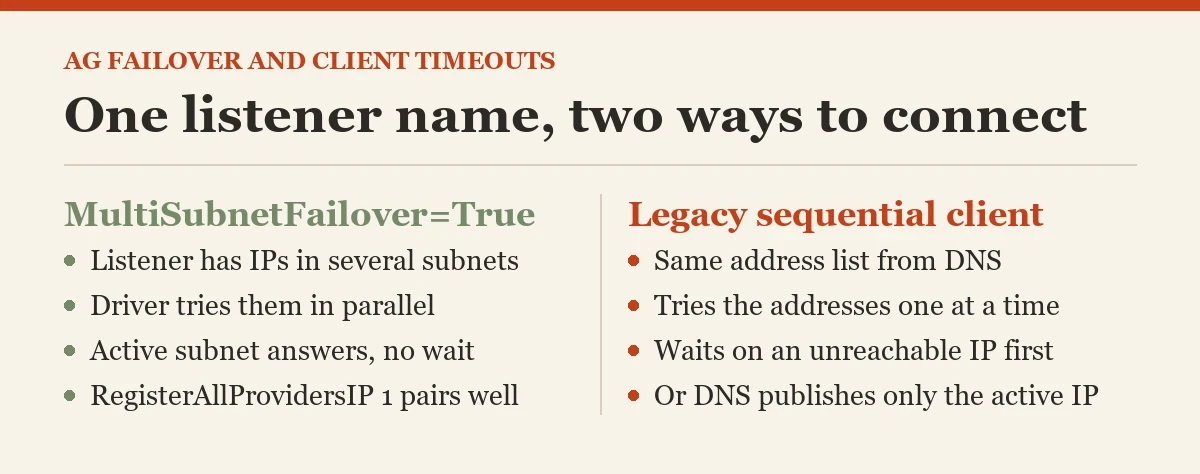

A multi-subnet availability group listener can register several IP addresses in DNS. Only the address for the active subnet is reachable for the primary connection at a given moment. A client that tries addresses sequentially can wait on an unreachable address before trying the active one. A supported driver using MultiSubnetFailover=True tries the addresses in parallel and avoids that delay. I compare the actual driver and connection string for fast and slow applications. The server failover time can be short while client reconnection remains slow.
Resolve the listener name from each application host. DNS caches and site-specific resolution can differ. Do not assume the DBA's laptop sees what the application server sees.
Set the Client Keyword
Use a current Microsoft SQL driver that supports the keyword, and add MultiSubnetFailover=True to the actual application connection string. Recycle connection pools after the change. Test both initial connection and a planned cross-subnet failover in a nonproduction AG. Keep connection timeout large enough for the complete authentication and routing path, but do not use a huge timeout to hide a sequential DNS problem. I include application retry behavior because an open transaction will not resume just because a new connection succeeds.
# PowerShell
$builder = [System.Data.SqlClient.SqlConnectionStringBuilder]::new()
$builder['Data Source'] = 'ag-listener.internal'
$builder['Initial Catalog'] = 'AppDb'
$builder['Integrated Security'] = $true
$builder['MultiSubnetFailover'] = $true
$builder.ConnectionStringInspect DNS and Cluster Settings
RegisterAllProvidersIP controls whether the listener registers all IP addresses or only the active one. A value of one pairs well with clients using parallel connection attempts. Legacy clients without MultiSubnetFailover can suffer long sequential waits. For those clients, setting RegisterAllProvidersIP to zero makes DNS publish the active address, but a failover then relies on DNS updates and cache expiry. HostRecordTTL controls the DNS record's time to live and trades faster refresh for more DNS traffic. I change these cluster settings only through the approved availability-group procedure. Run the check on a cluster node, and replace ‘AG Listener Name’ with the listener's network name resource from Failover Cluster Manager.
# PowerShell
Get-ClusterResource 'AG Listener Name' | Get-ClusterParameter RegisterAllProvidersIP,HostRecordTTL
Resolve-DnsName 'ag-listener.internal'Test the Legacy Route Through an AG Failover
If the client driver cannot use MultiSubnetFailover, plan RegisterAllProvidersIP and HostRecordTTL together. Lowering TTL alone cannot make a client parallelize attempts when several addresses remain registered. Changing registration can improve that client but alter behavior for others. I inventory all listener consumers before changing cluster parameters. The change needs a failover rehearsal, DNS observation from application hosts, and a rollback plan.
Do not edit a listener's cluster resource in the middle of an unplanned outage without understanding the cluster state. A quick local fix can create a slower recovery path for the next failover.
Measure the Whole Reconnect After an AG Failover

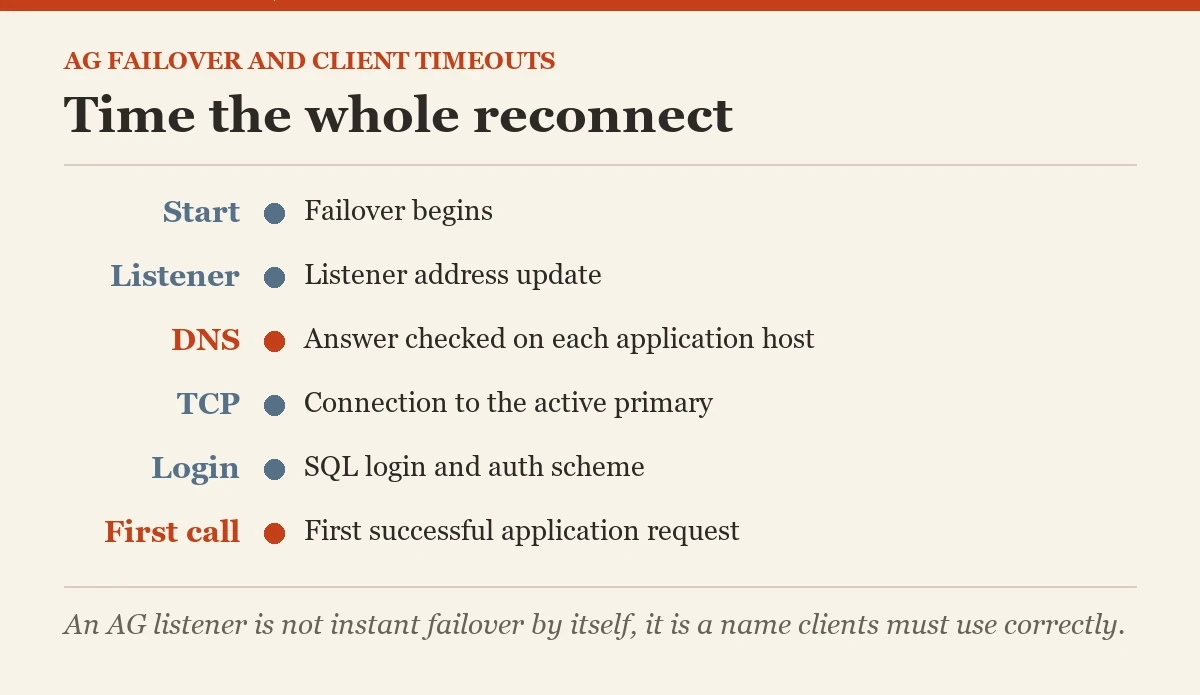

Record failover start, listener address update, DNS result on each host, TCP connection, login, and first successful application request. That timeline distinguishes cluster delay, DNS caching, driver behavior, authentication, and application retry policy. I use the same test account and connection string as the application where possible. A ping test is not a SQL login test, and a successful SSMS connection does not prove the service driver is configured.
What happens to work in flight? The application needs to detect failure, discard the broken connection, and retry safe operations. MultiSubnetFailover improves finding the new primary, not recovery of an open transaction.
Check Authentication After Routing
A listener connection that reaches the new primary can still change authentication behavior. When Windows integrated security is used, check SPNs for the listener name and service account, then query auth_scheme from the application session. A fallback from Kerberos to NTLM can break delegation even while a basic connection succeeds. I include one test that reaches a downstream resource when the application needs a double hop. DNS, TCP, SQL login, and Kerberos are separate milestones in the reconnect timeline.
The test should use the real application host and identity. A DBA connecting from a workstation with a different driver and credential cannot certify the service path. I record the listener DNS answer, chosen IP, driver version, and auth scheme together so the network and identity teams can see which layer failed.
Keep AG Failover Testing Repeatable
Run a planned cross-subnet failover in a test environment with representative clients. Record the last successful request before failover and first successful request after it, along with timeout and retry errors. Then reverse the failover. A one-direction test can miss DNS or routing asymmetry. I inspect the same application operation, not just a SELECT 1 from a new SSMS session. An active transaction should fail clearly and be handled by the caller's recovery policy.
What if a client caches DNS longer than HostRecordTTL? The configured TTL does not force every runtime to discard its cache immediately. Check operating system and application DNS behavior. For legacy clients, measure actual reconnection after changing RegisterAllProvidersIP, rather than assuming the new record alone solves it. The useful result is a client that reliably reaches the active primary within the business recovery target.
Test clients after the listener DNS record changes and after their connection pools are recycled. A new process can resolve the active address while an old pool still reports failures from stale connections. I record both cases. The difference helps separate DNS behavior from application retry handling and prevents changing cluster settings to solve a client lifecycle problem.
Leave a Client Inventory
Document driver versions, keyword support, connection strings, listener DNS settings, and owners for every important consumer. Recheck after driver upgrades or application migrations. A new service can omit the keyword and recreate the problem despite a healthy AG. I compare its failover timing with the known-good client during testing. That side-by-side evidence is more persuasive than simply saying "the cluster is fine."
The best fix usually sits at the client that times out. Cluster DNS settings remain an option for legacy clients, but their effect belongs in a measured design rather than a blind toggle.
Related reading on this blog: Find Instance Name for Availability Group Listener and Always On Availability Group Listener Missing in SSMS but Working Fine in Failover Cluster Manager.
An AG listener is not instant failover by itself, it is a name clients must use correctly.
Published by Pinal Dave on SQLAuthority. More of my work at pinaldave.com.
