Star Schema Queries and How SQL Server Runs Them

A report asks for sales by region and month, but the fact table holds every order line. Star schema queries connect that large table to small dimensions so filters and labels stay clear. SQL Server’s plan shows whether the join and storage design support the question.

Keep Fact and Dimension Roles Clear

A fact table stores events or measurements at a declared grain. Dimension tables store descriptive attributes such as region, category, or calendar period. Queries join surrogate dimension keys to facts, filter dimensions, then aggregate measures. The model keeps repeated descriptions out of every fact row.

I begin by naming the grain. Is one row an order, an order line, or a daily summary? A query can produce convincing totals while double-counting when that answer is unclear. The execution plan cannot fix a modeling error.

Filter Dimensions Early in Star Schema Queries

A selective dimension predicate can reduce the fact rows that need full processing. The optimizer chooses join order based on estimates, indexes, and table sizes. A small dimension filter does not guarantee an efficient plan when statistics are stale or the fact key lacks a useful access path.

I check estimated and actual rows on both sides of the join. A region with a small number of customers can behave differently from a region containing half the business. Test representative values rather than one convenient label.

Read Bitmap Filters in Star Schema Queries

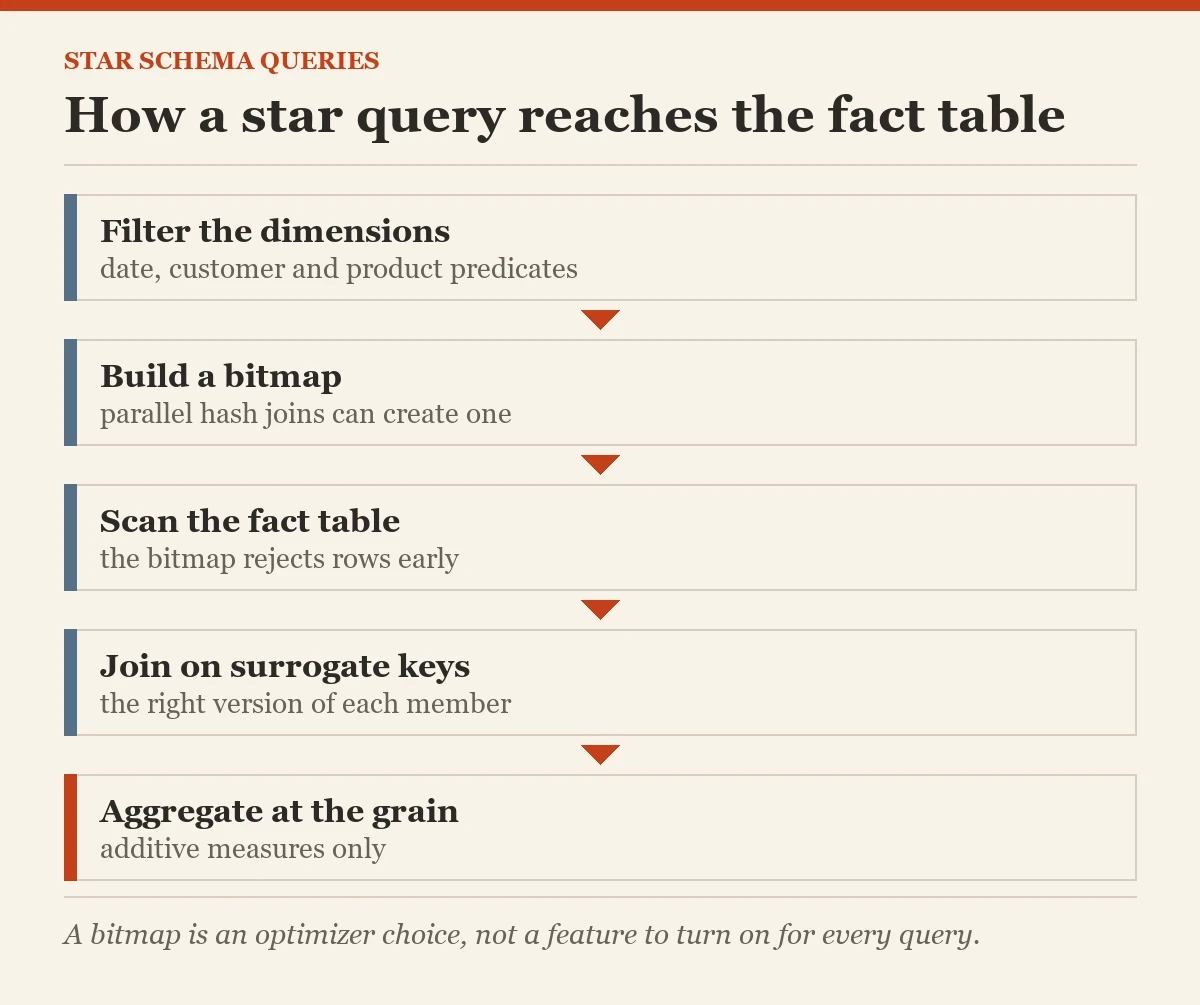

Parallel hash joins can create bitmap filters that reject fact rows before a later join. In a star query, a filtered dimension can contribute a bitmap applied during a fact scan. This can reduce unnecessary row processing. The plan shows where the bitmap is built and applied.

A bitmap is an optimizer choice, not a feature you turn on for every query. I look at actual rows flowing through the scan and join. A plan with a bitmap label is useful only if the workload benefits. Do not force a parallel plan merely to see a pretty operator.

Write the Query at the Right Grain

This example aggregates order-line amounts by month and region. It assumes each fact row has one DateKey and one CustomerKey. The query filters through the date dimension and joins the customer dimension for region. Adapt column names to your model and check that the amount is additive at this grain.

I compare totals with a trusted source query before tuning. A faster incorrect aggregation is still incorrect.

SELECT d.CalendarYear, d.CalendarMonth,
       c.RegionCode,
       SUM(f.SalesAmount) AS SalesAmount
FROM dbo.FactSales AS f
JOIN dbo.DimDate AS d ON d.DateKey = f.DateKey
JOIN dbo.DimCustomer AS c
  ON c.CustomerKey = f.CustomerKey
WHERE d.CalendarYear = 2026
GROUP BY d.CalendarYear, d.CalendarMonth,
         c.RegionCode;

Consider Fact Table Indexes

A rowstore fact table can benefit from indexes on dimension keys or a composite key matching frequent filters. Every extra index adds load cost. A clustered columnstore index can compress and scan large reporting fact tables efficiently, especially for broad aggregates. Point lookups and small updates can favor rowstore paths.

I test the report set and load path together. One index built to accelerate a monthly query can slow every daily insert. The best design reflects total workload, not the most dramatic plan screenshot.

Use Columnstore Where It Fits

Columnstore stores values by column and can process large scans in batches. It can be effective when queries aggregate a few columns across many fact rows. Segment elimination and predicate pushdown help when data ordering and filters cooperate. Small selective queries still need evaluation, and nonclustered rowstore indexes can remain useful in some designs.

The catalog query below lists table indexes and types. It helps confirm whether a fact table has clustered columnstore, nonclustered columnstore, or rowstore structures. It does not decide which is best.

SELECT name, index_id, type_desc,
       is_disabled, has_filter
FROM sys.indexes
WHERE object_id = OBJECT_ID(N'dbo.FactSales')
ORDER BY index_id;

Watch Dimension History

A Type 2 dimension has several rows for one natural key. Facts must join to the surrogate key representing the right version. Joining facts directly to the natural key can duplicate measures or assign old sales to current attributes. Validate the key path before tuning the join.

I test a customer whose region changed during the reporting period. The old and new facts should follow the chosen historical rule. If the report wants current-region restatement instead, make that a separate query definition, not an accidental join.

Inspect the Actual Plan for Star Schema Queries

Look at join types, row estimates, actual rows, memory grants, spills, and parallelism. A hash join over a large columnstore scan can be appropriate. An index seek with millions of key lookups can be worse. Logical reads and total CPU help compare plans, while duration reflects concurrency and waiting.

I use actual plans for representative parameters and a query window that is safe for the server. Collecting every actual plan during peak production traffic can itself add overhead. Query Store history can point to the plan worth examining.

Balance Load and Query Cost

Warehouse tables are loaded as well as read. Columnstore rowgroup quality, batch size, partition alignment, and index maintenance affect both paths. Test a realistic load and the main reports before choosing a physical design. A report that improves while the nightly load misses its window is not a complete win.

Star schema queries are simple to read when facts and dimensions have clear roles. SQL Server can then use joins, bitmaps, and columnstore to reduce work. The model gives the optimizer a fair chance, and the plan tells you what it actually did.

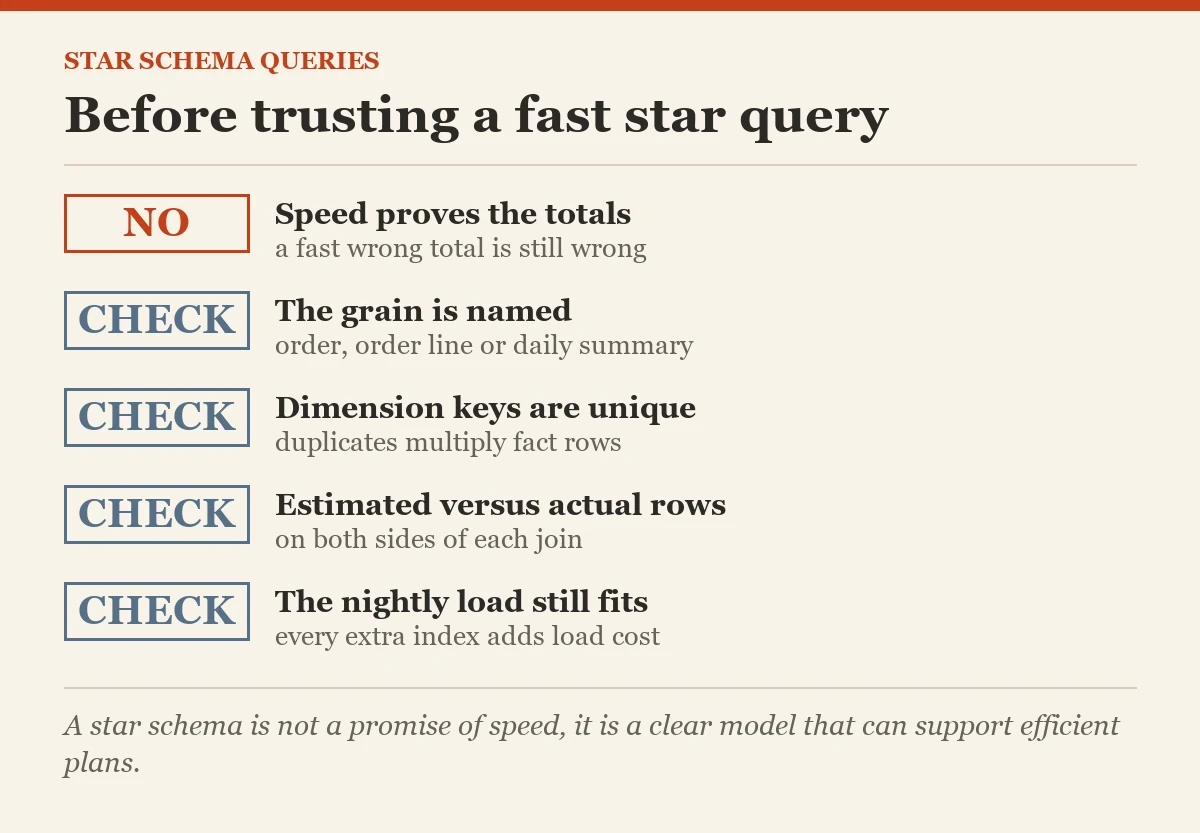

Star schema queries should group at the intended fact grain. Joining a dimension with duplicate business keys can multiply the fact rows before aggregation. Check dimension key uniqueness and Type 2 date logic before tuning the plan. A fast wrong total is still wrong.

I inspect the actual plan for bitmap filters and columnstore operators only after confirming row counts and filters. An optimizer choice can change with statistics and parameter values. Compare representative queries, not one handpicked filter. If a report groups by a high cardinality attribute, consider whether a precomputed summary would better serve it. Fact indexes, columnstore, and summary tables are tools for different query shapes. The right answer comes from workload evidence and a correct model.

Related reading on this blog: What Is a Star Schema? and Execution Plans and Indexing Strategies: Quick Guide.

A star schema is not a promise of speed, it is a clear model that can support efficient plans.
