Partitioning a Large Fact Table

A fact table reaches a size where last month’s cleanup owns the maintenance window. Partitioning a large fact table can make ranges easier to load and retire. The partition key, index alignment, and switch process determine whether that promise holds.

Choose the Key for Partitioning a Large Fact Table

A date column is common when facts arrive and expire by month. The key should support retention and common filters. Partitioning by date does not guarantee faster queries; a query must restrict the date range to benefit from elimination. A badly chosen key can complicate unique indexes and joins.

I write the load and purge calendar before creating a function. Which data range can be moved as one unit without changing business meaning? If the answer is unclear, partitioning a large fact table can add complexity without an operational win.

Define Boundaries Precisely

A partition function maps each row to a partition. RANGE RIGHT with month-start boundaries puts a boundary date in the partition on its right. A partition scheme maps partitions to filegroups, which can all be one filegroup or several. Use typed date values and a future empty partition for sliding-window maintenance.

I draw sample dates around every boundary before deployment. Midnight and month-end mistakes are easier to catch on paper than after a large load. The query below creates a small example function and scheme in a test database.

CREATE PARTITION FUNCTION pf_FactSaleDate (date)
AS RANGE RIGHT FOR VALUES
('2026-08-01', '2026-09-01', '2026-10-01');

CREATE PARTITION SCHEME ps_FactSaleDate
AS PARTITION pf_FactSaleDate
ALL TO ([PRIMARY]);

Put the Table on the Scheme

Create the fact table on the partition scheme using the same date column. Decide clustered key and uniqueness requirements carefully. Unique partitioned indexes have rules involving the partitioning column. A natural key from the source can still be stored, but its uniqueness enforcement needs a design that matches partitioning.

This example is intentionally small and uses a composite primary key that includes the partition key. Adapt the grain and key to your fact model. Run it after creating the partition function and scheme in a test database.

CREATE TABLE dbo.FactSale
(
    SaleDate date NOT NULL,
    SaleID bigint NOT NULL,
    CustomerKey int NOT NULL,
    Amount decimal(19, 4) NOT NULL,
    CONSTRAINT PK_FactSale
        PRIMARY KEY CLUSTERED (SaleDate, SaleID)
        ON ps_FactSaleDate(SaleDate)
)
ON ps_FactSaleDate(SaleDate);

Keep Indexes Aligned When Partitioning a Large Fact Table

An aligned index uses the same partitioning scheme as the base table. Alignment is central to simple partition switching. A nonaligned index can block or complicate the switch and its rebuild can become expensive. Add indexes for actual query patterns, but inspect their partition placement before deploying a sliding window.

I review every index after a reporting team requests a new covering path. One index created on the default filegroup can undo a carefully planned maintenance process. Index design and partition operations belong in the same change review.

Load Through a Matching Stage

A switch-in uses a staging table with matching columns, data types, nullability, indexes, compression, and a trusted check constraint proving the rows belong to the target partition. The destination partition must be empty. These conditions allow a metadata movement instead of copying each row. The staging load and validation still take time.

I test the exact stage definition before scheduling the first production month. If a switch fails, the error usually points to a structural mismatch that should have been found in rehearsal. Keep the stage isolated from readers until it is validated.

See Which Partition Holds Rows

sys.partitions reports row counts per index and partition. Use the clustered index or heap to avoid counting the same rows through every nonclustered index. Join to the partition function metadata for boundary analysis when needed. A row count confirms distribution, not correctness of business values.

I compare partition counts with source batch counts before and after a switch. The query below provides a simple table view.

SELECT p.partition_number, p.rows
FROM sys.partitions AS p
WHERE p.object_id = OBJECT_ID(N'dbo.FactSale')
  AND p.index_id = 1
ORDER BY p.partition_number;

Switch Out for Retention

An old partition can be switched to an empty matching table, then archived or removed under policy. This can avoid a giant row-by-row delete, but the target table must satisfy alignment and constraint rules. Log, backup, and replication interactions still need planning. A switch is metadata-efficient, not exempt from schema locks.

I make the retirement step reversible until validation and archive checks finish. Dropping the switched-out table immediately leaves little room for a mistaken boundary. Retention is a business rule, not just a maintenance trick.

Watch Locks and Query Plans

ALTER TABLE SWITCH needs schema modification locks, so it can wait behind long readers and block new work briefly. Choose a controlled window and measure blockers. Partition elimination also needs predicates that reference the partition key in a searchable form. A function applied to every date value can defeat an otherwise good design.

I test a representative range query and inspect its actual plan. Partitioning can make some queries no faster, and that is acceptable when the primary gain is loading or retention. State the intended benefit before measuring it.

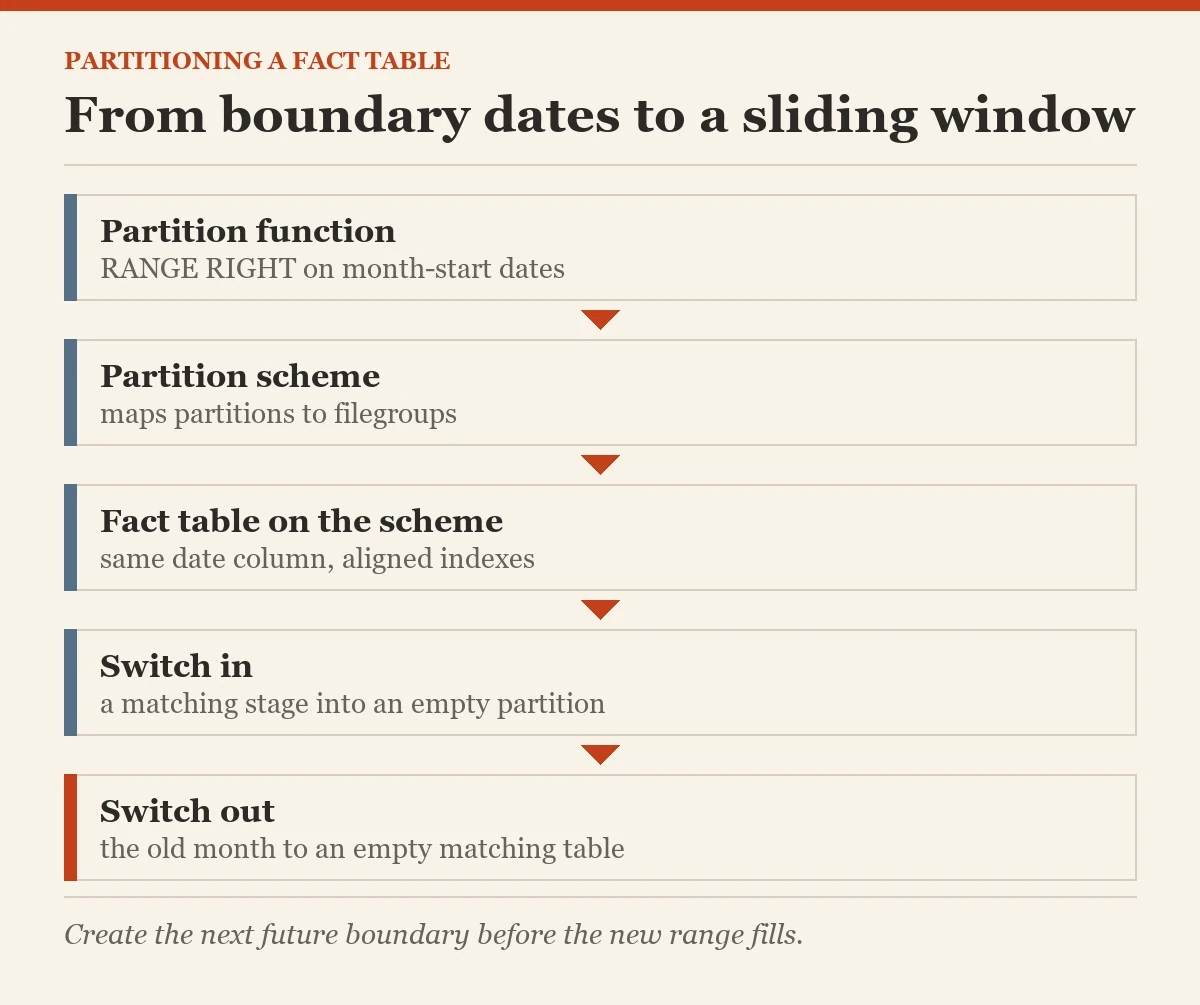

Maintain the Sliding Window After Partitioning a Large Fact Table

Create a future boundary before the new range fills. Load and switch current data, then switch out old data and merge only empty ranges according to the plan. Track the next boundary date and automate checks that refuse to proceed when a stage contains out-of-range rows. A manual calendar reminder is fragile.

Partitioning a large fact table works when boundaries, indexes, loads, and retirement all agree. Keep the design simple enough to rehearse in a test database. A partition diagram should be a map for operations, not a puzzle for the next DBA.

A sliding window deserves its own rehearsal script. Create the next boundary before loading the new range, verify the staging constraint, switch the old range out, and then remove or archive it under the retention policy. Partition numbers can shift when boundaries change, so calculate them from the current function at execution time.

I compare row counts and key totals before and after every switch. The command can complete successfully while the staged data is wrong for the business. Keep the old partition table until the new range passes validation. Also check plans for the main reports. A query that does not filter on the partition key can still scan many partitions. Partitioning helps operations only when the load and query design both respect its boundaries.

Related reading on this blog: Aligned and Non-Aligned Indexes for Partitioning and Script to Get Partition Info Using DMV.

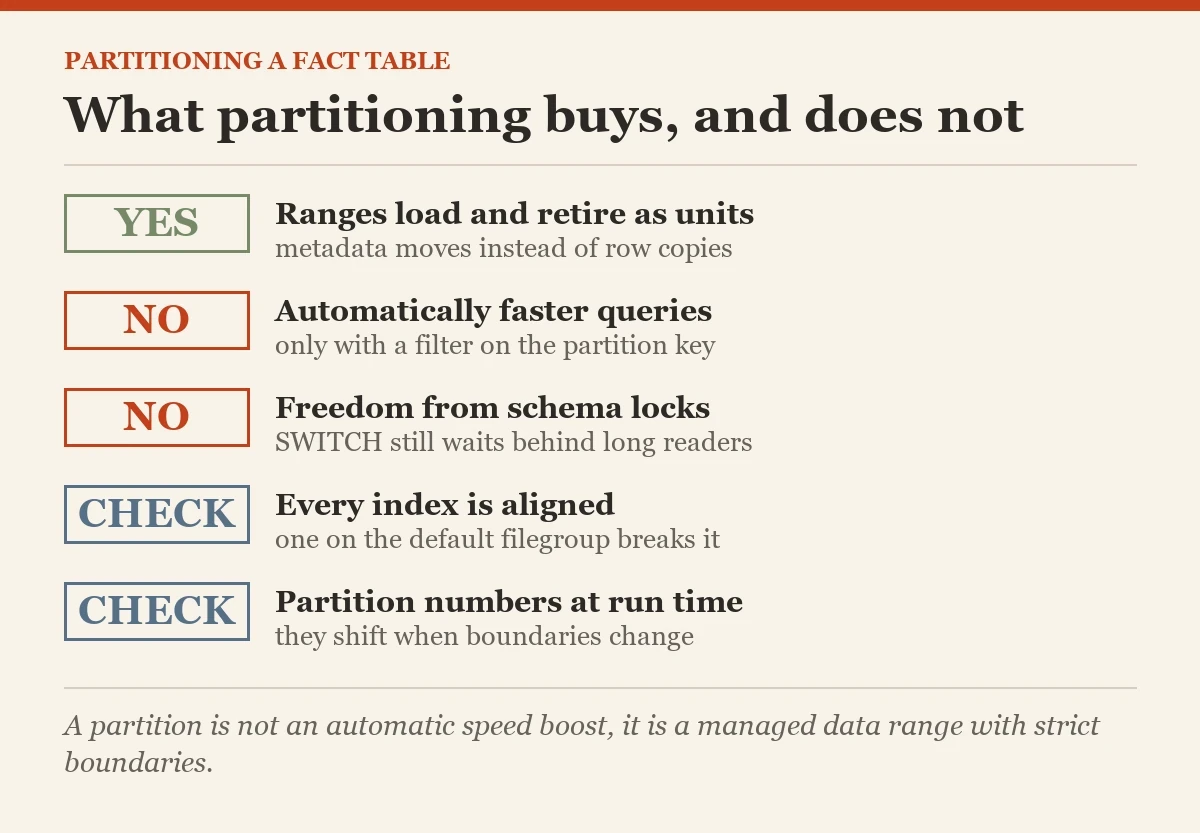

A partition is not an automatic speed boost, it is a managed data range with strict boundaries.
