Windows can show more processors than one instance can use. Checking how many CPUs SQL Server really uses starts inside the engine. Edition limits, affinity settings, and offline schedulers determine the capacity available to one instance. Check the instance’s own view before assuming it can use every core in a hardware quote.

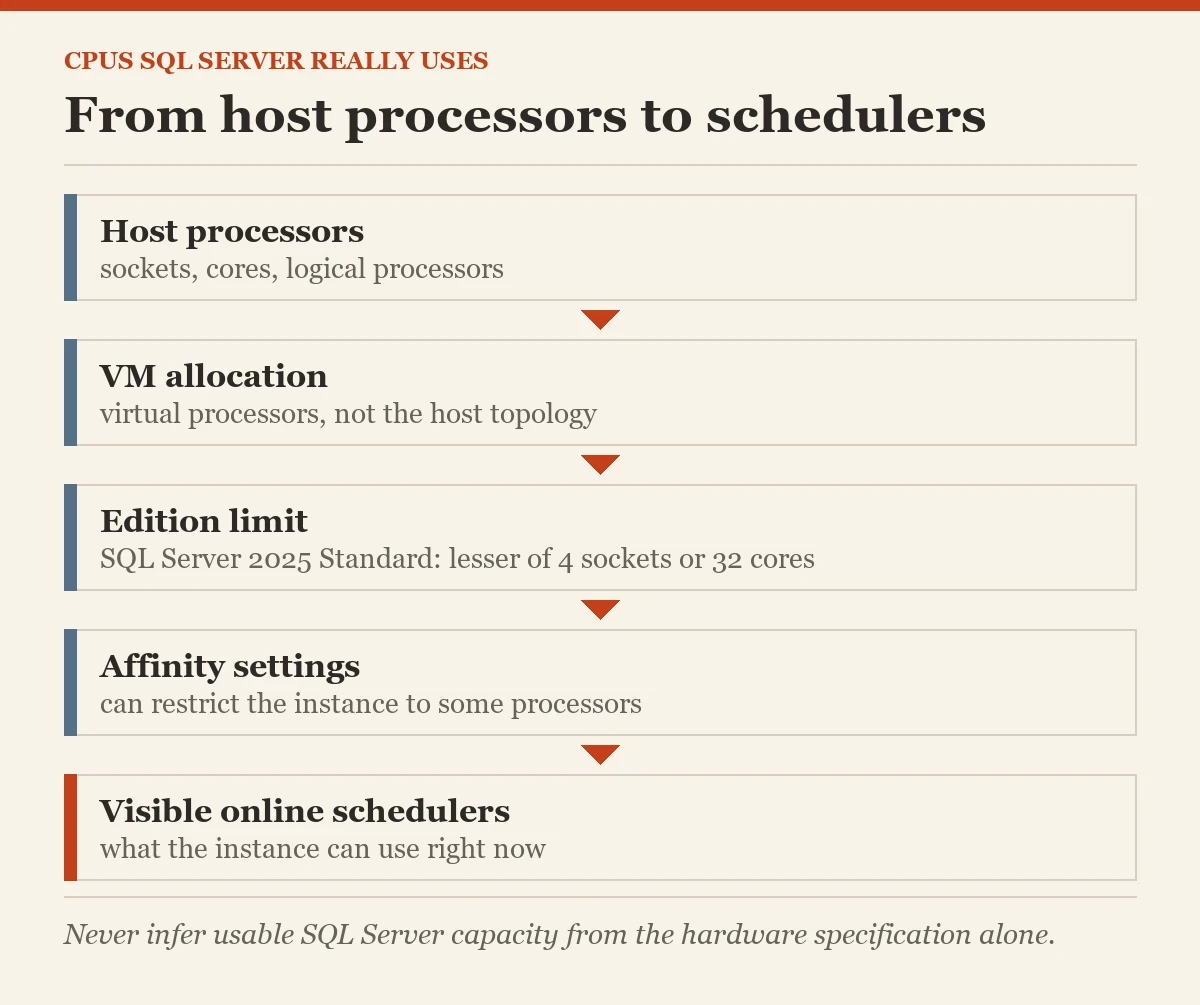

Distinguish Cores and Logical Processors
A physical processor can contain multiple cores, and simultaneous multithreading can expose multiple logical processors per core. Virtual machines expose virtual processors rather than the host’s full physical topology. SQL Server scheduling and edition limits use definitions that depend on physical or virtual deployment. A simple Task Manager number can therefore be misleading.
I record physical sockets, cores, logical processors, and virtual processor count separately. That prevents a conversation about 32 CPUs from mixing four different units. The instance needs capacity that its edition and configuration can actually schedule. How many visible online schedulers can this instance use now?
Check Version and Edition Limits
SQL Server editions impose compute capacity limits for one Database Engine instance. For SQL Server 2025, Standard edition is limited to the lesser of four sockets or 32 cores. Older versions have different limits. Express is more constrained. Enterprise Core licensing can use operating system capacity, subject to supported platform limits.
Verify the installed version and current official limit before planning an upgrade. Licensing terms are separate from the technical limit and need review with the licensing owner. A host can have many processors while one instance uses only its edition allowance. I never infer the CPUs SQL Server really uses from the hardware specification alone.
Count Visible Online Schedulers to See the CPUs SQL Server Really Uses
sys.dm_os_schedulers shows schedulers that SQL Server uses for user work. Filter to VISIBLE ONLINE to exclude hidden internal schedulers and offline affinity slots. This count is a practical instance-side view of the CPUs SQL Server really uses at that moment. Compare it with sys.dm_os_sys_info and the VM or host configuration.
The following query groups by parent node and includes runnable tasks. Runnable counts are snapshots. Repeated samples are needed to understand sustained CPU pressure.
SELECT parent_node_id,
COUNT(*) AS visible_online_schedulers,
SUM(runnable_tasks_count) AS runnable_tasks_now
FROM sys.dm_os_schedulers
WHERE status = 'VISIBLE ONLINE'
GROUP BY parent_node_id
ORDER BY parent_node_id;Inspect Affinity Settings
CPU affinity can restrict an instance to selected processors. It can be useful in specific multi-instance or specialized environments, but manual affinity creates maintenance risk when hardware or VM topology changes. An unexpected low scheduler count can be caused by affinity rather than licensing or missing vCPUs.
This query shows configured affinity-related values. Interpret them with the actual scheduler list and current version. Do not change affinity during an incident without understanding NUMA and workload effects. I prefer the default automatic behavior unless a measured reason supports a restriction.
SELECT name, value_in_use
FROM sys.configurations
WHERE name IN ('affinity mask',
'affinity64 mask',
'affinity I/O mask',
'affinity64 I/O mask');
Include Virtualization Limits on the CPUs SQL Server Really Uses
A VM uses the virtual processors assigned to it, while host contention affects how promptly those processors run. The guest cannot see every scheduling delay at the hypervisor. Compare SQL runnable tasks with host CPU ready or equivalent metrics. More vCPUs do not guarantee more delivered CPU if the host is busy or the VM’s placement is poor.
Virtual NUMA topology matters for large VMs. Coordinate with the virtualization team when resizing across NUMA boundaries. I test actual query throughput and latency after a topology change because a count alone cannot describe memory locality or host contention.
Read CPU Pressure Correctly
High CPU utilization is not automatically a fault. It can mean useful work is using available capacity. Look for sustained runnable queues, rising response time, and CPU-heavy queries during the same interval. Conversely, low guest CPU with slow requests can indicate waits on locks, I/O, memory grants, or host scheduling.
Query Store and plan cache can identify statements consuming CPU. Tune expensive repeated work before increasing processor count. A query scanning a large table can use every core offered. The right outcome is more completed business work per unit of CPU, not simply a lower percentage on a dashboard.
Consider Parallelism Settings
max degree of parallelism limits processors used by an individual parallel plan, not the total processors the SQL Server instance can use for concurrent requests. Cost threshold for parallelism influences when parallel plans are considered. These settings affect how CPU capacity is shared. A server with many schedulers can still have serial queries, and a four-worker query can coexist with many other requests.
I check actual plans and waits before changing MAXDOP. Increasing it can speed one report while hurting concurrency. Reducing it can stabilize the workload but lengthen a critical batch. Test with the real query mix after any CPU topology change.
Watch Multiple Instances
Several SQL Server instances can share one Windows host. Each has its own memory and configuration, while all compete for underlying CPU. A technical edition cap applies per instance, but the host has a finite total. Affinity or resource governance can coordinate sharing, yet they need a clear operational plan.
Collect instance-side scheduler and workload data for each instance, plus host CPU pressure. I avoid assigning all visible host capacity to every instance in planning spreadsheets. The sum of simultaneous peak demands matters, especially during backup or maintenance overlap.
Validate the CPUs SQL Server Really Uses With Work
Count visible online schedulers, verify edition and affinity, then test representative concurrency. Measure completed requests, CPU time, runnable tasks, and high-percentile latency. If an upgrade adds processors but throughput does not improve, inspect the next bottleneck. The processors can be unused because the workload waits elsewhere.
How Many CPUs SQL Server really uses is an instance-specific question. The answer changes with version, edition, VM allocation, and settings. Read the live scheduler view, then connect that count to actual work rather than treating it as a trophy number.
One more trap is a configuration change that leaves schedulers offline. The operating system can still list those processors, yet user requests cannot run on them. Compare the visible online count before and after a resize or affinity change. If the count changed unexpectedly, correct the configuration before purchasing more cores.
Related reading on this blog: Visible Offline Scheduler and Performance and Get CPU Details: SQL in Sixty Seconds #164.

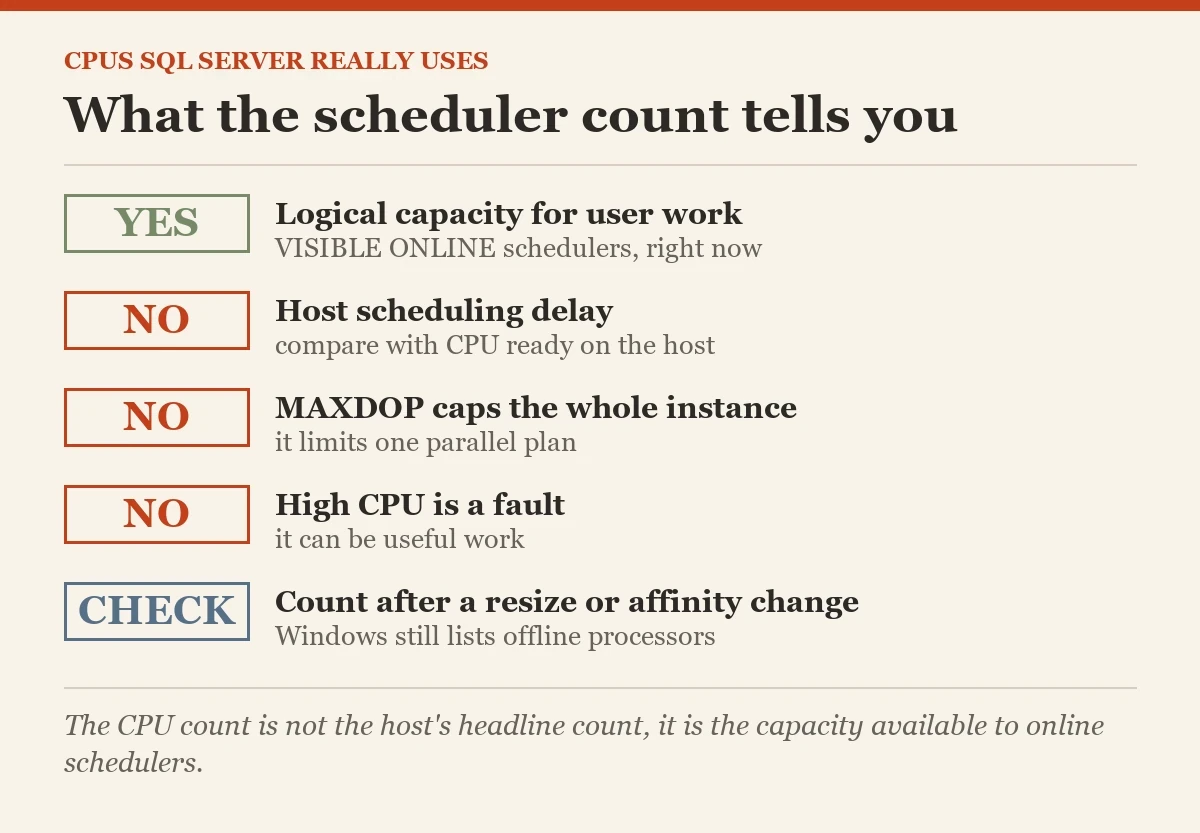

The CPU count is not the host’s headline count, it is the capacity available to online schedulers.
