Estimating How Much Memory SQL Server Needs

Database file size is a poor RAM target. Estimating how much memory SQL Server needs starts with the active working set. SQL Server keeps useful pages and plans in memory, but it also needs workspace for concurrent queries. Estimate the active working set, observe pressure at peak, and leave room for Windows.

Separate Database Size From Active Data

A large database can contain years of cold history while users repeatedly read a small recent set. That active set is the working set relevant to memory sizing. Indexes, plans, and query workspace add to it. Conversely, a smaller database with many concurrent sorts can demand substantial memory. A fixed percentage of database size ignores both patterns.

I ask which tables and indexes are touched during peak work and how much physical reading occurs. The goal is to keep frequently used pages available without starving other processes. More RAM helps when it removes real physical I/O or grant waits, not merely because the database file is large. Which pages and grants must stay active during your busiest hour?

Observe Current Memory Use

Compare SQL Server total memory and target memory, process physical memory, and Windows available memory over time. SQL Server normally grows to use memory it is allowed to keep, so high utilization alone is not pressure. Look for paging, low available host memory, or queries waiting for grants. Capture business peaks and maintenance overlap.

This query reports SQL process memory and the configured ceiling. It is one snapshot. Use Windows counters and trends to understand host pressure. A single number cannot size a future workload.

SELECT physical_memory_in_use_kb / 1024.0
           AS sql_process_memory_mb,
       locked_page_allocations_kb / 1024.0
           AS locked_pages_mb
FROM sys.dm_os_process_memory;

SELECT name, value_in_use
FROM sys.configurations
WHERE name = 'max server memory (MB)';

Treat Page Life as a Trend

Page life expectancy reflects how long pages remain in the buffer pool on average under recent activity. A sudden drop can be a clue that useful pages are being displaced. A fixed universal threshold, such as an old rule of thumb, ignores memory size, workload, and NUMA nodes. Compare the metric with its own baseline and with physical reads.

A large table scan can lower page life without implying the server needs more RAM. I correlate the timing with queries and I/O. If repeated normal workloads churn the same pages and storage reads remain high, more memory or better access paths can help. The counter starts a question. It does not answer it.

Check Grants and Spills

Sorts and hash operations request memory grants. If many queries wait on RESOURCE_SEMAPHORE, or plans spill to tempdb, memory allocation deserves review. Poor estimates and unnecessarily broad queries can create bad grants even on a large server. More RAM can provide headroom, but it should not be the only proposed fix.

This view lists current requests for query memory. Capture it during the slow period, because grants come and go. Compare requested, granted, and used amounts with plans and row estimates.

SELECT session_id, requested_memory_kb,
       granted_memory_kb, required_memory_kb,
       used_memory_kb, wait_time_ms
FROM sys.dm_exec_query_memory_grants
ORDER BY requested_memory_kb DESC;

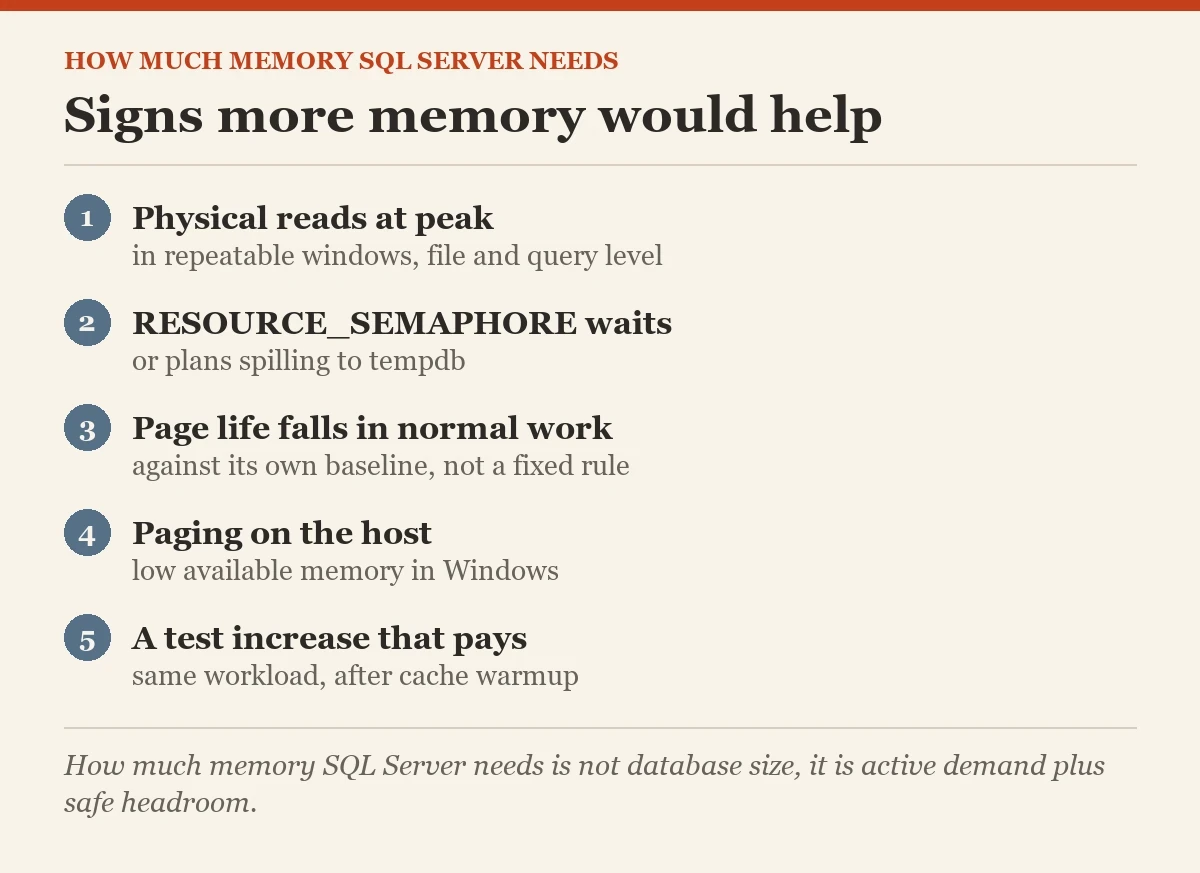

Measure Physical Reads to See How Much Memory SQL Server Needs

Physical reads show that pages had to come from storage, though read-ahead and cache state affect counts. Compare file-level reads and query-level physical reads across repeatable peak windows. A memory increase has value if it reduces meaningful storage work and user delay. Logical reads remain important because an inefficient query can touch too many pages even when cached.

I test a query and index improvement before buying RAM to hold pages the application should not read. A full scan every few seconds can consume any new buffer pool. Sizing should follow an efficient workload where practical, with honest headroom for remaining work.

Reserve Room for Windows

Do not set max server memory equal to installed RAM. Windows, SQL Server components outside the main memory manager, backup software, monitoring agents, and other instances need space. The reserve depends on server role and workload. Monitor actual host available memory and paging after setting the ceiling.

Virtual machines need a stable assigned memory budget and attention to hypervisor policy. A guest can appear adequately sized while the host is under pressure. I document both allocated memory and the observed available amount at peak, then revisit the limit after application or platform changes.

Consider Edition and Growth in How Much Memory SQL Server Needs

Edition limits can cap memory use for specific SQL Server components, and those limits vary by version. Verify current product documentation for the installed edition. Adding physical RAM beyond a usable limit will not enlarge the affected cache. New features, more users, larger active ranges, and reporting changes can all expand the working set.

Forecast how much memory SQL Server needs by workload, not only by file size. If archived data grows but hot data remains stable, memory need can stay similar. If active tenants and concurrent reports grow, memory demand can rise faster than storage. I plan a review trigger based on measured pressure rather than a fixed annual purchase.

Know When More Stops Helping

Increase memory in a controlled test and observe the same workload. If physical reads, grant waits, and user latency improve, the added capacity has evidence behind it. If those metrics barely change, the next increment can have diminishing returns. CPU, blocking, network, or log latency can now dominate.

A benchmark should include enough time for cache warmup and normal query mix. A cold-cache run favors bigger memory less than a repeated working-set run. I keep the test conditions visible so a purchasing decision can be explained without promising an exact speedup from each gigabyte.

Set a Practical Estimate of How Much Memory SQL Server Needs

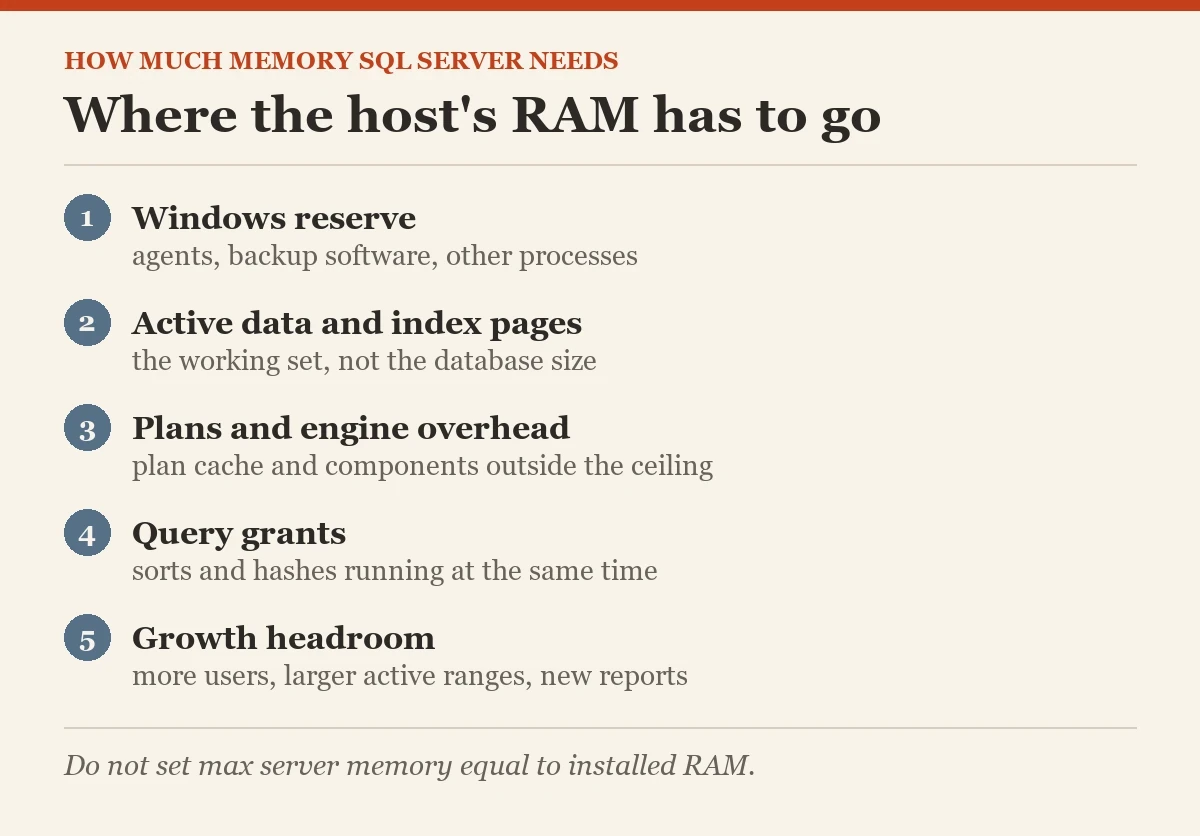

Begin with the active data and index footprint, concurrent grant demand, plan and engine overhead, Windows reserve, and growth headroom. Compare that estimate with observed pressure on the current system or a representative pilot. State uncertainty where the workload is new. A range with a clear upgrade path is more useful than a false precise figure.

How much memory SQL Server needs is answered by what the workload repeatedly touches and waits for. The database’s total size provides context, not the target. Buy enough memory to remove demonstrated pressure and keep the host healthy, then measure where the next bottleneck moved.

Related reading on this blog: Understanding Maximum Server Memory and 3 Queries to Detect Memory Issues.

How much memory SQL Server needs is not database size, it is active demand plus safe headroom.
