A WHERE clause on an indexed column can still read the whole table. Implicit conversions deserve inspection when the parameter and indexed column use different types.
Follow the Conversion to the Expression It Affects
SQL Server compares expressions using its data-type precedence and conversion rules. When the types differ, one expression can be converted to the required comparison type. A conversion on the indexed column can complicate the access path or estimates. A conversion on a parameter or constant can have a different effect.

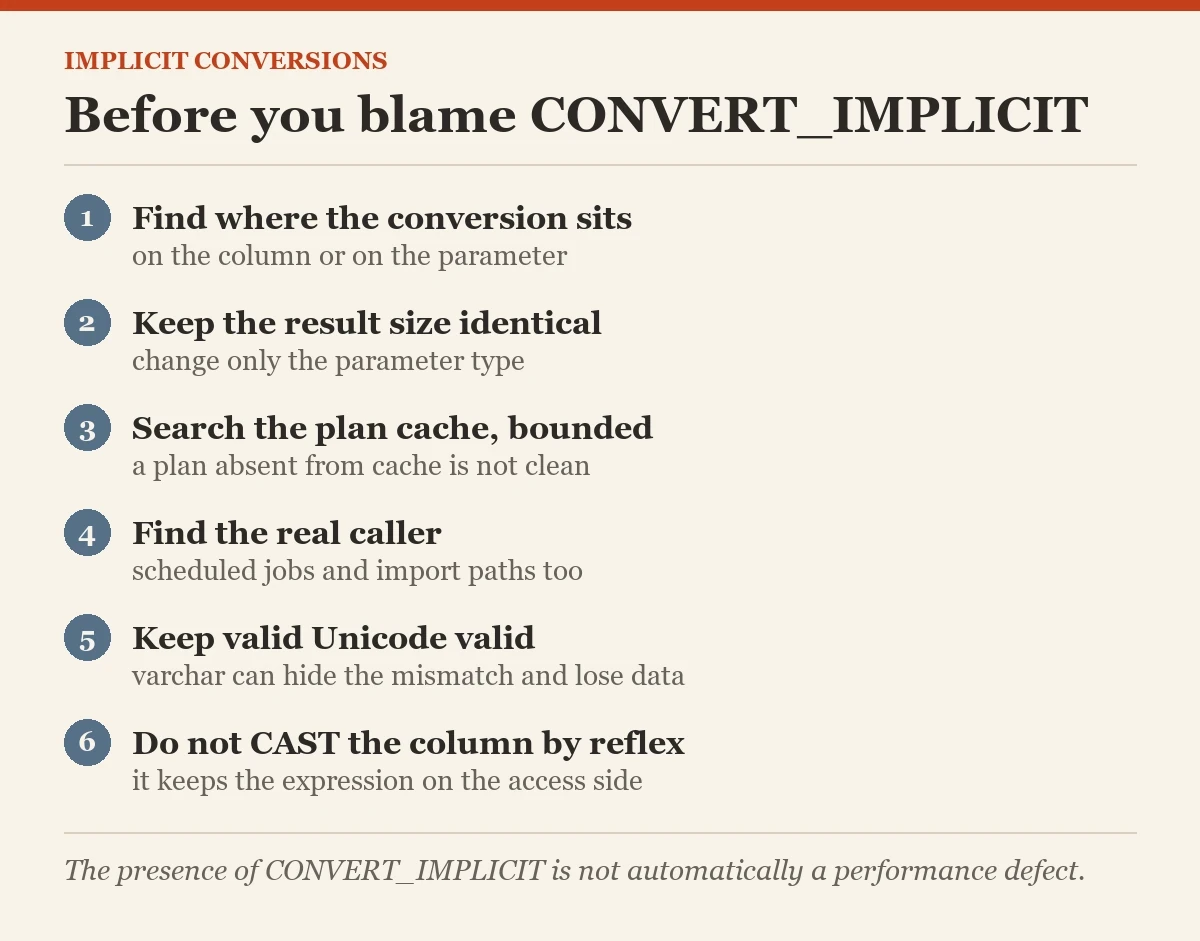

The presence of CONVERT_IMPLICIT is not automatically a performance defect. Some conversions are harmless or still permit a useful seek. Collation and the exact type combination matter. I inspect the conversion's location and the actual access predicate before deciding that it caused a scan.
A scan itself is not proof of an error. Returning a large share of the table can justify one. Compare the result contract, estimated and actual rows, reads, and selected operator. A warning is a clue about the plan, not a complete explanation of every slow execution.
Reproduce Implicit Conversions With a String-Type Lab

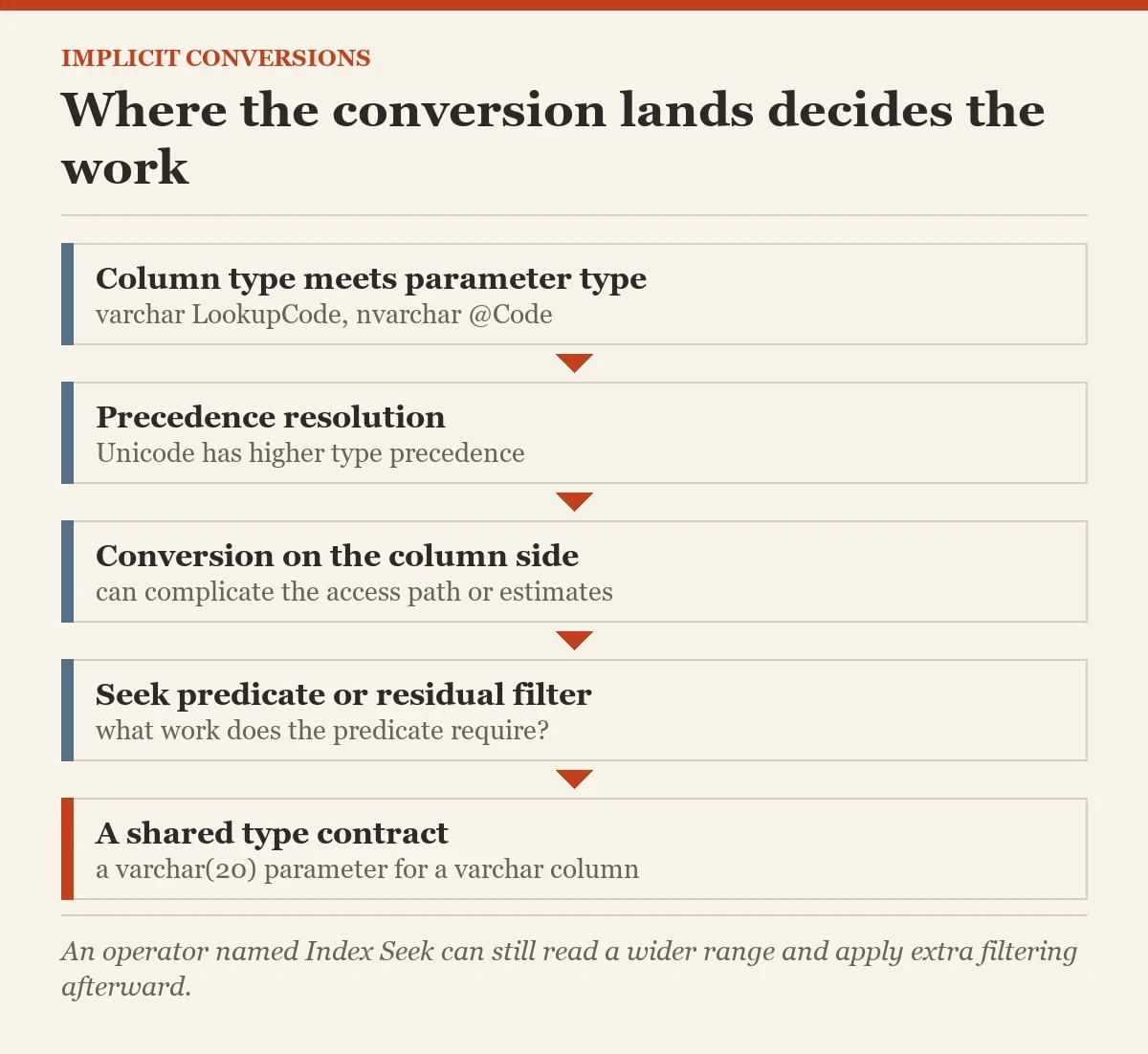

A common mismatch compares a varchar column with an nvarchar parameter. Unicode has higher type precedence, so the comparison can convert the stored column expression. The following SQL Server 2022 or later lab uses a SQL collation and generated test values to make the comparison explicit.
CREATE TABLE dbo.ConversionLab
(
ItemID int PRIMARY KEY,
LookupCode varchar(20) COLLATE SQL_Latin1_General_CP1_CI_AS NOT NULL,
Payload nvarchar(50) NOT NULL
);
INSERT dbo.ConversionLab(ItemID,LookupCode,Payload)
SELECT CONVERT(int,value),CONCAT('Code',value),N'Synthetic payload'
FROM GENERATE_SERIES(1,100000,1);
CREATE INDEX IX_ConversionLab_Code
ON dbo.ConversionLab(LookupCode) INCLUDE(Payload);
DECLARE @Code nvarchar(20)=N'Code50000';
SELECT ItemID,Payload FROM dbo.ConversionLab WHERE LookupCode=@Code;The generator requires compatibility level 160 or higher. Capture the actual plan for the final statement and inspect its predicates. The example supplies a mismatch to investigate; it does not invent a measured scan count or runtime. A different collation can affect whether a conversion still supports seek behavior, so retain that detail with the observation.
Look for conversion expressions attached to the stored LookupCode value and any plan-affecting warning. Distinguish a seek predicate from a residual filter. An operator named Index Seek can still read a wider range and apply extra filtering afterward. The useful question is what work the predicate requires.
Compare With a Matching Parameter Definition
Use a parameter that matches the intended varchar column contract and compare the resulting plan under equivalent conditions. The selected value and required output remain the same. Do not change result size while claiming the only difference is parameter typing.
SET STATISTICS IO ON;
SET STATISTICS TIME ON;
DECLARE @Code varchar(20)='Code50000';
SELECT ItemID,Payload FROM dbo.ConversionLab WHERE LookupCode=@Code;
SET STATISTICS TIME OFF;
SET STATISTICS IO OFF;Capture both plans and resource measurements in the same approved environment. Verify row values as well as duration. Client consumption and cache state can influence elapsed time, so record the test sequence. A single faster run is weaker evidence than consistent access-path and read differences under the controlled comparison.
For an application using parameterized execution, set the actual type and length explicitly. A database-side example does not prove what the client sends. Inspect the real parameter contract and avoid a client default that silently uses a different string type. Preserve the application's valid Unicode requirements while correcting the mismatch.
Search Cached Plans for Implicit Conversions
A bounded cache search can find plans containing conversion nodes or plan-affecting conversion warnings. It is a current cache inspection, not a complete historical audit. Plan XML and SQL text can contain private values, so restrict the diagnostic output to the approved review scope. The XML exist method needs QUOTED_IDENTIFIER ON. SSMS sets it by default, and the first line sets it for sqlcmd, which defaults to OFF.
SET QUOTED_IDENTIFIER ON;
WITH XMLNAMESPACES(DEFAULT 'http://schemas.microsoft.com/sqlserver/2004/07/showplan')
SELECT TOP (50) cp.plan_handle,cp.usecounts,t.text AS BatchText,
qp.query_plan
FROM sys.dm_exec_cached_plans AS cp
CROSS APPLY sys.dm_exec_query_plan(cp.plan_handle) AS qp
CROSS APPLY sys.dm_exec_sql_text(cp.plan_handle) AS t
WHERE qp.query_plan.exist('//Warnings/PlanAffectingConvert')=1
ORDER BY cp.usecounts DESC;
WITH XMLNAMESPACES(DEFAULT 'http://schemas.microsoft.com/sqlserver/2004/07/showplan')
SELECT TOP (50) cp.plan_handle,t.text AS BatchText,qp.query_plan
FROM sys.dm_exec_cached_plans AS cp
CROSS APPLY sys.dm_exec_query_plan(cp.plan_handle) AS qp
CROSS APPLY sys.dm_exec_sql_text(cp.plan_handle) AS t
WHERE qp.query_plan.exist('//Convert[@Implicit="1"]')=1
ORDER BY cp.usecounts DESC;The first search focuses on a warning; the second has broader coverage and more harmless candidates. Review each relevant predicate and workload impact. A plan absent from the cache cannot be declared clean. Eviction, recompilation, restart, and encrypted or unavailable text limit the inventory.
Searching for implicit conversions requires the appropriate server diagnostic permissions and consumes resources itself. Scope and schedule it deliberately. For recurring investigation, use the approved historical plan capture where available rather than repeatedly scanning every cached XML document. Keep the plan identity and capture time with the finding.
Correct the Contract at the Right Boundary
Matching the application parameter to the column can be the simplest fix when the column's type accurately represents the business data. The following parameterized statement demonstrates that intended type explicitly.
EXEC sys.sp_executesql
N'SELECT ItemID,Payload FROM dbo.ConversionLab WHERE LookupCode=@Code;',
N'@Code varchar(20)',@Code='Code50000';If the business requires Unicode data that the chosen varchar collation cannot represent, changing the parameter to varchar merely hides the mismatch while risking data loss. Review a schema and index change that supports the actual contract instead. Conversion performance is secondary to preserving valid stored and searched values.
Avoid wrapping the indexed column in an explicit CAST as a reflex. That can retain the problematic expression on the access side. A reviewed parameter-side conversion requires range and representation validation too. Numbers, dates, precision, scale, and collation can create similar mismatches with different correctness risks.
Which caller supplies the mismatched type? Include scheduled jobs and import paths as well as the main application. I fix the authoritative parameter contract and test the real caller, rather than improving only a hand-written query. A deployed change should survive the client's normal serialization and connection behavior.
Verify Estimates, Access, and Correctness Together
Record whether the accepted change belongs to the schema, client parameter definition, or database module. Coordinate those changes so an old caller cannot silently restore the mismatch after deployment. Include rollback behavior and error handling for invalid conversions in the acceptance check. A corrected plan is useful evidence, but the complete result is a consistent contract across every supported calling path.
Re-run boundary values, valid non-ASCII input where relevant, NULL behavior, and the normal workload after the accepted change. Compare plans, reads, latency, and concurrency. Keep the original mismatch and the corrected definitions in the review record so the change remains explainable.
Implicit conversions are useful candidates when a predicate unexpectedly loses an efficient access path. Confirm that the conversion is responsible, then preserve the correct type contract across storage and callers. Do not turn a plan warning into an indiscriminate campaign to cast every expression.
Related reading on this blog: How to Fix CONVERT_IMPLICIT Warnings? and Find All Queries with Implicit Conversion in SQL Server: Interview Question of the Week #107.
A conversion warning is not a diagnosis by itself, it is evidence to connect with types, predicates and measured access behavior.
