Merge Operations can combine conditional inserts, updates and deletes. I inspect the plan before making any claim about scans or speed.
This began with a T-SQL Tuesday discussion hosted by Jorge Segarra. A reader asked how the plan proved a single pass. Number of Executions describes one operator. It doesn’t count every read across the plan.
Keep the original student example
CREATE TABLE #StudentDetails (StudentID int PRIMARY KEY, StudentName varchar(15));
CREATE TABLE #StudentTotalMarks (StudentID int PRIMARY KEY, StudentMarks int);
INSERT INTO #StudentDetails VALUES (1,'SMITH'),(2,'ALLEN'),(3,'JONES'),(4,'MARTIN'),(5,'JAMES');
INSERT INTO #StudentTotalMarks VALUES (1,230),(2,255),(3,200);
SELECT StudentID, StudentMarks FROM #StudentTotalMarks ORDER BY StudentID;
MERGE #StudentTotalMarks AS stm
USING #StudentDetails AS sd ON stm.StudentID = sd.StudentID
WHEN MATCHED AND stm.StudentMarks > 250 THEN DELETE
WHEN MATCHED THEN UPDATE SET stm.StudentMarks = stm.StudentMarks + 25
WHEN NOT MATCHED BY TARGET THEN INSERT (StudentID, StudentMarks) VALUES (sd.StudentID,25)
OUTPUT $action AS action_taken, inserted.StudentID AS new_id, deleted.StudentID AS old_id;
SELECT StudentID, StudentMarks FROM #StudentTotalMarks ORDER BY StudentID;
DROP TABLE #StudentTotalMarks;
DROP TABLE #StudentDetails;

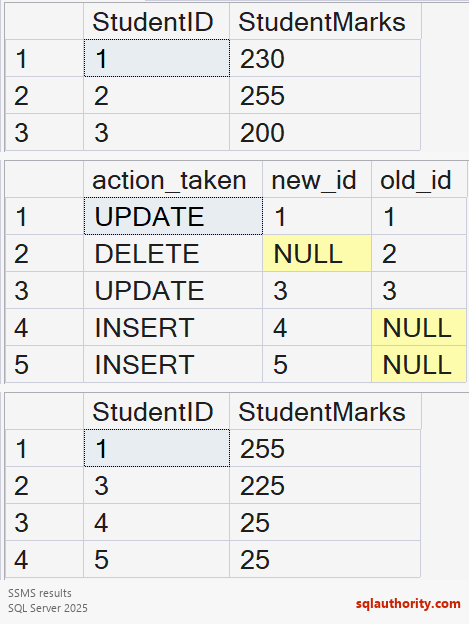

The final marks are 255 for student 1 and 225 for student 3. Students 4 and 5 receive 25 each. Student 2 is deleted because the matched original mark 255 exceeds 250. OUTPUT action order is not guaranteed.
Inspect the actual workload
The worked example uses temporary tables and keeps the student-mark outcomes. It avoids changing a shared schema. If using permanent parent and child tables, drop the child first during cleanup.
I use a unique matching key and inspect source duplicates. I also test concurrency, triggers and actual plans before choosing MERGE. Separate DML statements remain another option to evaluate.
Reference: MERGE reference.
One MERGE statement is not proof of one scan, it is one statement whose actual work needs measurement.
