Planning for Data Growth

Storage rarely runs out without leaving clues first. Planning for data growth means collecting the trend, allowing for peaks, and ordering capacity while there is still time to install it.

Measure the Right Thing When Planning for Data Growth

Allocated file size, used pages, backup size, and volume free space answer different questions. A growing backup file can reflect more data, different compression, or a changed backup method. A large data file can contain free space that SQL Server will reuse. Gather more than one measure before planning for data growth. Keep units and capture times explicit.

I start with the volume that will run out, then trace which files on it are growing. A database-level average can hide one log file with bursts or one index filegroup with rapid change. Which physical volume needs capacity, and when does the procurement process require a decision? That question makes the analysis useful.

Use Backup History as a Signal

msdb backupset holds backup sizes and finish times. Full backup history can show a trend, but compressed backup size depends on compression ratio and data content. Compare backup_size and compressed_backup_size and note when backup settings changed. msdb retention can prune old history, so record the available window.

The query below returns recent full backups by database. Run it on your own instance and inspect the pattern rather than copying somebody else’s growth rate. I use it as one input, then compare it with actual database file usage and storage monitoring.

SELECT database_name,
       backup_finish_date,
       backup_size / 1024.0 / 1024 AS backup_mb,
       compressed_backup_size / 1024.0 / 1024 AS compressed_mb
FROM msdb.dbo.backupset
WHERE type = N'D'
  AND database_name IS NOT NULL
ORDER BY database_name, backup_finish_date DESC;

Record Current File Allocation

sys.master_files reports the allocated size of database files. Capture it regularly with server and database identity. A growing allocation line shows when files expanded, not exactly how much live data was added. An auto-growth event can create a step that remains flat while the workload fills the new space. Keep the file’s growth increment beside the size.

I compare data and log separately. Logs respond to transaction patterns and backup or reuse problems; they do not follow the same line as table data. A full recovery database with failed log backups can fill storage quickly even while table data barely changes. The query below supplies a current allocation snapshot.

SELECT DB_NAME(database_id) AS database_name,
       name AS logical_name,
       type_desc,
       physical_name,
       size * 8.0 / 1024 AS allocated_mb,
       growth,
       is_percent_growth
FROM sys.master_files
WHERE database_id > 4
ORDER BY database_id, file_id;

Account for Business Events in Planning for Data Growth

Historical growth is a starting point, not a promise. New customers, retention changes, data imports, index builds, and application releases can change the curve. Ask product and operations teams about known events in the forecast window. Include maintenance working space and backup staging. A volume sized exactly to the projected data file is already too small.

I make assumptions visible. If a planned import is uncertain, show a range rather than one precise date. A forecast with three decimal places does not become more reliable because it looks mathematical. The owner needs to know the likely capacity window and the lead time to act. Precision should match the evidence.

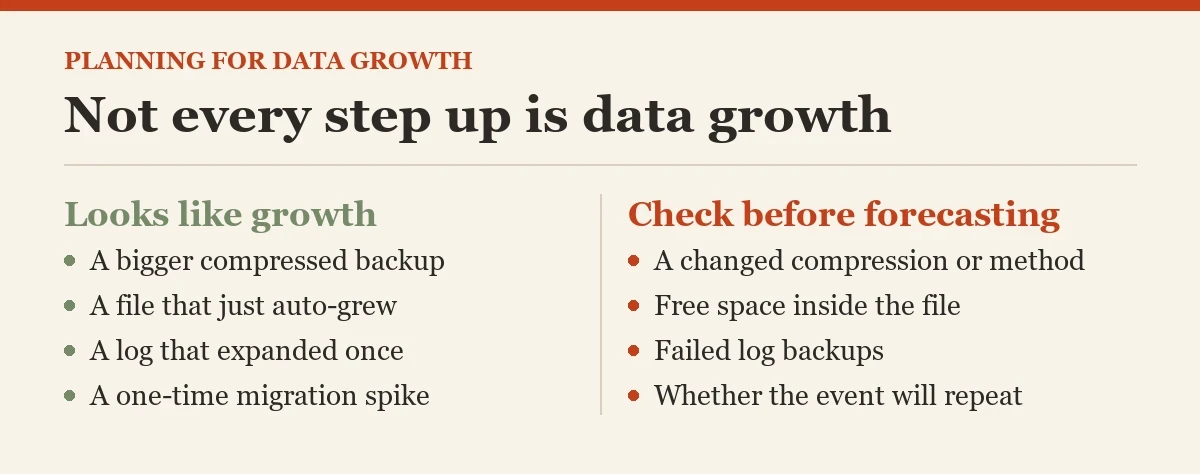

Separate Steady Growth From Spikes

Daily or weekly snapshots reveal a slope; peak events reveal headroom needs. A database that grows slowly most days can need temporary room for an index rebuild or batch load. A log file can expand during one long transaction and keep that allocation afterward. Look at the largest observed events and ask whether they will repeat.

I keep a note of unusual days in the trend. Otherwise a one-time migration spike can distort a straight-line forecast. Conversely, excluding every inconvenient spike produces a plan that fails during normal maintenance. Decide which events are part of regular operations and reserve room for them.

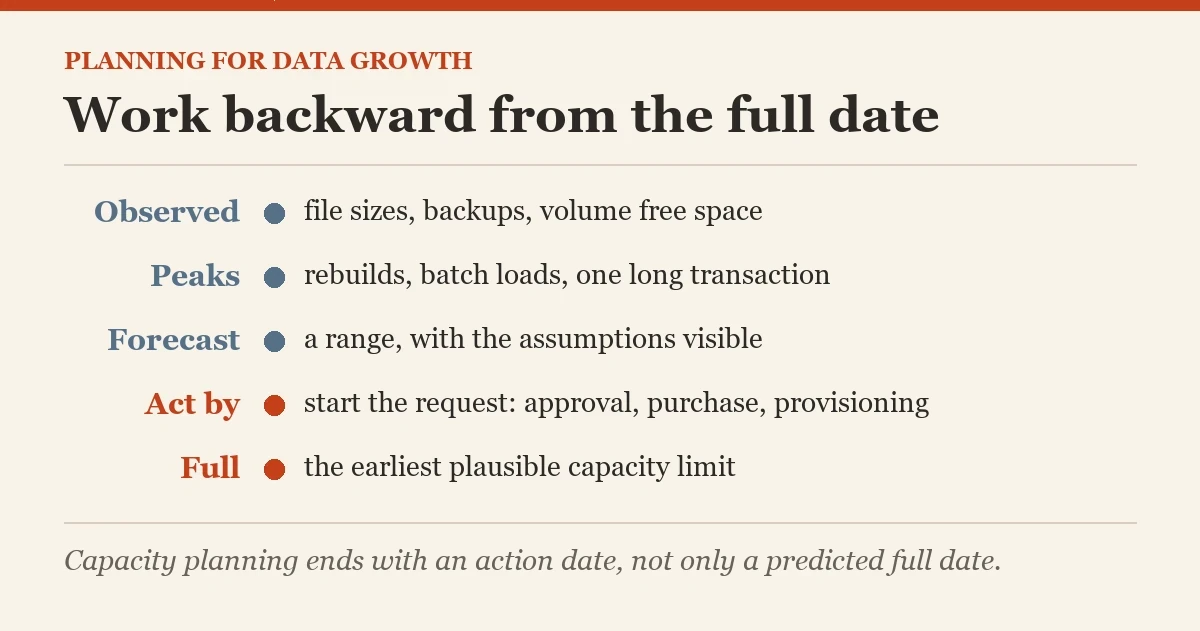

Include Lead Time and Safety Margin

Planning for data growth ends with an action date, not only a predicted full date. Storage approval, purchase, provisioning, testing, and a change window can take longer than expected. Work backward from the earliest plausible capacity limit. Add room for forecast uncertainty and operational peaks. Define who will request capacity and who will verify it after provision.

I prefer a plan that says when to start the request and what evidence to attach. A graph with no owner is decoration. Ask the infrastructure team what lead time applies to this storage class. Then set alerts early enough that the team can follow the normal process. Midnight emergency storage is a poor substitute for a calendar reminder.

Watch the Host Volume

SQL Server file queries do not by themselves show every consumer of a Windows volume. Backups, dumps, trace files, and other applications can use the same space. Combine SQL file trends with volume free-space monitoring. Check where tempdb and backup staging live. A data volume with healthy database files can still fill because another process writes beside them.

I verify paths rather than assuming a drive letter means the same thing on every server. Mount points and cluster storage can complicate the picture. The capacity report should identify the physical target, its owner, and all important consumers. That makes the request understandable to the team providing storage.

Review File Growth Settings

Set file growth to deliberate increments rather than tiny steps or uncontrolled percentages. Auto-growth protects against unexpected demand but can pause a workload and consume the last free space. Pre-size for known growth where practical. Revisit max-size limits and alerts when storage is added. A larger volume does not help a file capped below the required size.

I check log growth separately from data growth. A log that expands repeatedly can signal a backup or long-transaction issue, not a need to buy more storage. Fix the cause when possible before forecasting the pattern as normal. Growth settings and capacity plans should agree on what happens at the next peak.

Refresh Your Planning for Data Growth

Update the trend after major releases, migrations, and retention changes. Compare forecast with actual allocation and explain the gap. A useful model gets corrected as the workload changes. Keep old forecasts so you can see whether the assumptions were too optimistic. This is a practical feedback loop, not a one-time spreadsheet exercise.

What date will your current free-space margin become uncomfortable? Answer it from the available trend and lead time, then put a review on the calendar. The best storage request is the one made while the system still has room to wait for it.

Related reading on this blog: How to Prevent Common SQL Server Performance Problems Efficiently With Smart Capacity Planning and Monitoring Database Autogrowth Settings.

A growth chart is not a storage plan, it is evidence for a dated capacity decision.
