Consolidating Small Instances Onto One Server

A rack of quiet SQL Server instances looks like easy savings. Consolidating small instances onto one server can work, but each instance carries settings, jobs, logins, and peaks that do not show in a CPU average. Inventory them before moving the first database.

Inventory More Than Databases Before Consolidating Small Instances

List versions, editions, collations, databases, file sizes, logins, jobs, linked servers, endpoints, certificates, and application connections. Include restore targets and vendor support requirements. A small user database can depend on a large set of instance-level objects. Moving the MDF file alone is not a migration.

I ask for the strangest job step and the oldest vendor application. Those are the items that turn a neat consolidation chart into a weekend recovery exercise. Capture owners before any shutdown decision.

Measure Overlapping Peaks When Consolidating Small Instances

Low average CPU across several servers does not prove they can share one host. Their peaks can coincide during month-end close, backups, index work, or imports. Collect CPU, memory, I/O, log write rate, and response time on a common timeline. Add headroom for a failure or unusual burst.

A single consolidated instance also changes isolation. One runaway report can affect more applications. I measure which workloads require hard resource boundaries and consider separate SQL instances or Resource Governor where appropriate. More databases on one machine share real hardware even when their names remain separate.

Compare Instance Settings

Collation, max server memory, MAXDOP, cost threshold, trace flags, and security configuration can differ. Some are database-scoped, while others are instance-scoped. Two applications requiring conflicting server collation or legacy settings cannot simply be placed together without a compatibility test.

This query captures a few settings and server identity values for each source. Save results with instance names before comparing. I do not change settings to a common value until the application tests show the effect.

SELECT @@SERVERNAME AS server_name,
       SERVERPROPERTY('Edition') AS edition,
       SERVERPROPERTY('Collation') AS server_collation;

SELECT name, value_in_use
FROM sys.configurations
WHERE name IN ('max server memory (MB)',
               'max degree of parallelism',
               'cost threshold for parallelism');

Plan Memory and tempdb

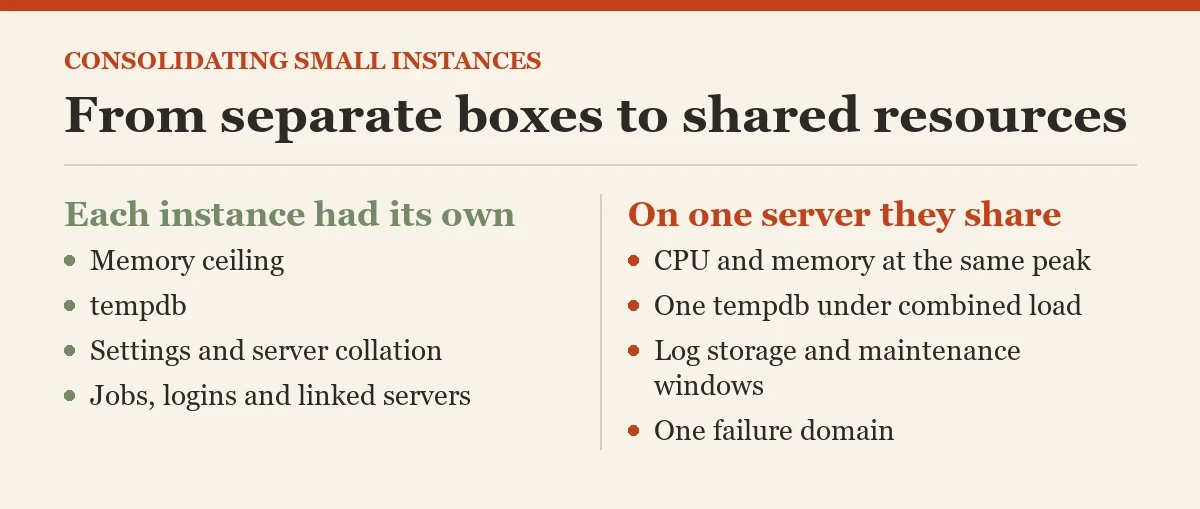

Each source instance had its own memory ceiling and tempdb. On one server, the combined workload competes for both. If retaining separate instances, set memory limits that leave room for Windows and each other. If moving databases into one instance, inspect tempdb and grant pressure under combined load.

I test simultaneous reports and loads, not one application at a time. A migration can pass every isolated smoke test and fail the first Monday when all jobs run together. The calendar is part of capacity planning.

Check Names and Security

Instance names, database names, login SIDs, credentials, SQL Agent job names, and linked-server names can conflict. Applications can connect with hard-coded server names. Windows authentication and service accounts can have different permissions on the new host. Scripts that use three-part names need attention.

I build a mapping from old endpoint to new endpoint and identify every caller. A DNS alias can help some applications, but it does not fix a job step that references a local path or a server-scoped credential. Test the actual application identity rather than an administrator account.

Review Licensing Before Consolidating Small Instances to Save Money

SQL Server licensing depends on edition, core allocation, virtualization rights, and agreement terms. Consolidation can lower or raise license cost depending on the target hardware and topology. Verify current rules with the licensing team. Include passive recovery capacity and test environments in the comparison.

A larger machine is not automatically cheaper just because it replaces several smaller boxes. I put license, storage, backup, monitoring, and operations in the same calculation. Otherwise the project saves rack space and discovers a bigger invoice.

Record Database and File Footprint

This query lists database state and allocated file size on each source instance. It is a starting inventory, not a capacity forecast. Add actual used space, growth history, and peak log usage. A database with little used space can still have a large file because it once grew during a load.

I keep the output dated so a later migration plan does not rely on stale sizes.

SELECT d.name, d.state_desc,
       SUM(m.size) * 8.0 / 1024 AS allocated_mb
FROM sys.databases AS d
JOIN sys.master_files AS m
  ON m.database_id = d.database_id
WHERE d.database_id > 4
GROUP BY d.name, d.state_desc
ORDER BY allocated_mb DESC;

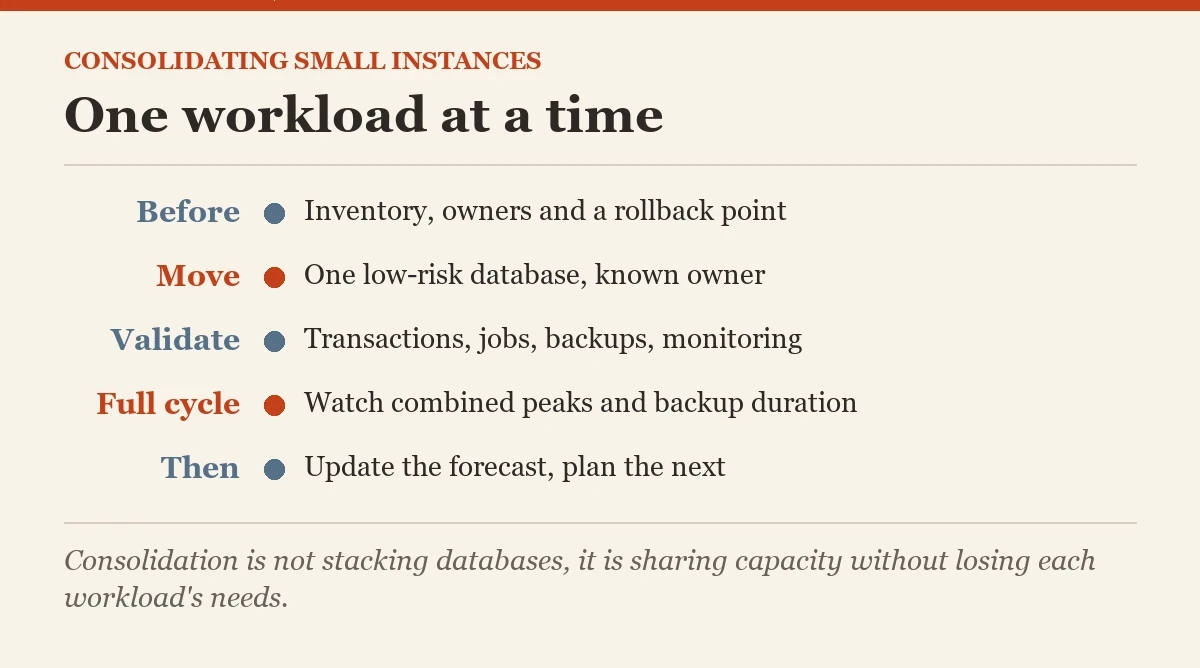

Move One Workload at a Time

Choose a low-risk database with a known owner, clear dependencies, and a rollback plan. Move it, validate user transactions, jobs, backups, and monitoring, then observe through a full business cycle. Only then schedule the next. This keeps a failure attributable to one move rather than a simultaneous migration wave.

I retain the source long enough for a controlled rollback, with writes clearly directed to one location. A split-brain period where both databases accept updates is worse than a delayed migration. The cutover plan must say when ownership changes.

Reassess the Shared Server

After each move, measure combined CPU, memory, I/O, blocking, and backup duration. Update the capacity forecast. If a workload no longer fits the plan, stop and redesign instead of moving the rest to meet a project date. Consolidating small instances succeeds when the shared server remains predictable under concurrent peaks.

Consolidating small instances is a practical way to reduce sprawl when their needs align. It is not a count-the-databases exercise. The hidden dependencies and overlapping busy hours decide how many instances one server can truly carry.

Consolidation changes the failure domain. One server outage can now affect several applications at once. Record which databases share recovery requirements, maintenance windows, and security boundaries before moving them together. A workload that peaks during another workload’s batch job can remove the apparent savings.

I run a pilot with one small workload and compare its behavior under shared memory, tempdb, and storage pressure. Then I test restore and patching procedures for the combined host. The destination should have capacity for normal overlap and a reasonable growth margin. Packing every instance onto a machine because the average CPU is low ignores the moment all jobs start together. That moment is usually not polite enough to announce itself.

Which workloads peak together, and can the shared server carry those peaks during maintenance or a failure?

Write down the rollback point for each move. If the shared host develops contention, know whether the database can return to its old instance and how much data changed since cutover. A reversible pilot makes consolidation easier to judge honestly.

Related reading on this blog: Why is SQL Server Consolidation Better Than Having a Scattered Environment? and How to Track Data Platform Service Level and Performance Before and After Consolidation?.

Consolidation is not stacking databases, it is sharing capacity without losing each workload’s needs.
