Another server cannot rescue an inefficient query by itself. Scaling out read queries begins with the read pattern. A missing index, repeated identical request, and genuine capacity limit call for different solutions. Measure the read pattern before distributing it.
Locate the Read Bottleneck Before Scaling Out Read Queries
Identify the queries consuming CPU, I/O, memory grants, or user wait time. Separate one slow report from millions of tiny repeated lookups. Check execution plans, indexes, data distribution, and blocking. A replica will run the same inefficient query unless the workload or hardware changes. More servers can multiply a bad pattern rather than fix it.
I begin with total resource use and peak concurrency. If the primary has spare capacity and users still wait, the issue can be locks, network, or application code. Scaling out read queries is valuable when isolation or aggregate read capacity is the limiting need, not as a first response to every slow SELECT. Which reads demand current data, and which can use a replica or cache?
Improve the Query Before Copying It
A focused index, better predicate, smaller result set, or summary table can reduce work for all future copies. Query Store can identify high-frequency and high-cost statements. Test those changes under realistic parameters and write load. A new covering index can speed reads while adding maintenance to every insert, so measure both sides.
I look for repeated SELECT * requests that return columns the screen never displays. Reducing bytes across the network can help without any new server. A cache can also remove calls, but only when freshness and invalidation rules are clear. Make the single-server path efficient before deciding how many copies it needs.
Use a Readable Replica for Scaling Out Read Queries
An availability group readable secondary can carry read-only reports on separate CPU, memory, and storage resources. The primary still sends log records, and the secondary must redo them. Reports can lag committed primary data. Feature support and licensing vary by edition and agreement, so verify both before counting the replica as free capacity.
Route connections through a listener with read-only intent and test the actual endpoint reached. A report that writes back to its source database does not belong on a read-only secondary without redesign. I also check plans on the replica because its cache and temporary statistics can differ from the primary.
Cache Stable Results
Application caching is effective when many callers request the same answer and the data changes less frequently than it is read. Define a time-to-live or event-driven invalidation rule that matches the product’s freshness promise. Include tenant and authorization scope in the cache key. A shared cache serving the wrong user’s data is a serious failure.
I measure hit rate, stale-result frequency, memory footprint, and behavior when the cache is empty. A cache stampede after expiration can overload SQL Server. Use bounded refresh or request coalescing where needed. The database call count should fall in production metrics, not only in a local demo.
Route by Consistency Need

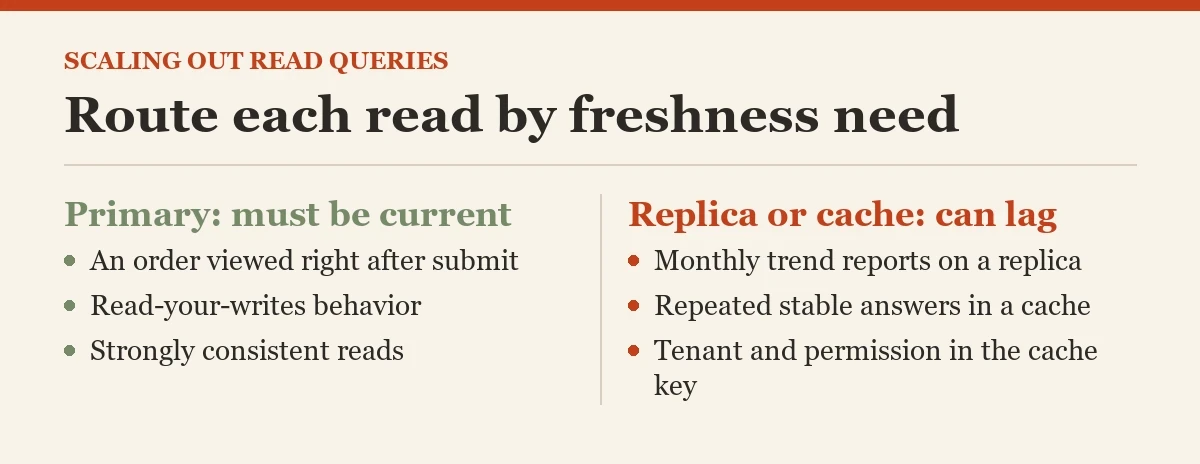

A user viewing an order immediately after submitting it can require read-your-writes behavior. A monthly trend report can tolerate an older snapshot. Route strongly consistent reads to the primary and lag-tolerant reports to a secondary or cache. Make that distinction part of the application contract, not an accidental connection-string detail.
A simple routing table can document each endpoint’s purpose. The SQL check below helps a client verify which instance it reached during a test. It does not replace a data freshness check.
SELECT @@SERVERNAME AS connected_instance,
DB_NAME() AS database_name,
SYSUTCDATETIME() AS checked_at_utc;Plan for Failures and Rebalance
When a replica fails or falls behind, decide whether requests return to the primary, wait, or show a stale-data warning. Automatic fallback can protect availability while suddenly moving heavy reports onto the transactional server. Set a capacity and priority policy for that event. Test failover with the actual application clients.
I include routing health, queue sizes, cache hit rate, and primary resource use in monitoring. A read tier can be healthy individually while the whole service is overloaded after rebalancing. The architecture needs to explain where load goes when one component is absent.
Account for Query and Data Distribution
Read traffic is rarely uniform. A few tenants or reports can dominate. Round-robin routing can place several heavy queries on one replica while lighter requests fill another. Use request classification or separate pools when the workload justifies it. Avoid complex routing before measuring a simple baseline.
If data is partitioned by tenant, a sharded approach can distribute both data and reads, but it changes application logic and cross-tenant queries. I reserve that step for cases where replicas and caching cannot meet the requirement. Each added routing rule becomes an operational contract to test.
Compare the Total Cost of Scaling Out Read Queries
Replicas need licenses, storage, backup considerations, monitoring, and failover testing. Caches need memory, invalidation logic, and security review. Summary tables need refresh jobs and data-quality checks. Compare these with tuning the source query or moving a report to off-peak hours. The least costly solution can be a ten-line query rewrite.
This Query Store query lists high-execution queries over a recent interval, a useful starting point for identifying repeat work. Confirm capture policy before interpreting gaps.
SELECT TOP (20) q.query_id,
SUM(rs.count_executions) AS executions,
SUM(rs.avg_cpu_time * rs.count_executions)
/ 1000000.0 AS total_cpu_seconds
FROM sys.query_store_query AS q
JOIN sys.query_store_plan AS p ON p.query_id = q.query_id
JOIN sys.query_store_runtime_stats AS rs ON rs.plan_id = p.plan_id
JOIN sys.query_store_runtime_stats_interval AS rsi
ON rsi.runtime_stats_interval_id = rs.runtime_stats_interval_id
WHERE rsi.start_time >= DATEADD(day, -1, SYSDATETIMEOFFSET())
GROUP BY q.query_id
ORDER BY total_cpu_seconds DESC;Validate the User Outcome
Measure response time, primary CPU and I/O, replica lag, cache hit rate, and error behavior before and after. Include peak traffic and a replica-down scenario. A fast average can hide stale answers or a large tail of slow fallbacks. Keep the business freshness promise visible in the test report.
Scaling out read queries works when each read class has an appropriate source and the failure path is known. Add capacity where the workload needs it, with query efficiency as the foundation. More copies are useful only when the application can trust the answer each copy returns.
Before adding another read target, test a primary-down or replica-down interval. The fallback route can send all reports onto the transactional primary at once. Decide which reports pause and which continue. That decision protects important writes when spare read capacity disappears.
Related reading on this blog: Query Store Feature for Secondary Replicas and Read Only Routing Error: Client Unable to Establish Connection Because an Error was Encountered During Handshakes Before Login.
Scaling out read queries is not adding replicas blindly, it is routing efficient reads within clear freshness limits.
