Imagine this. Your users have developed an Excel spreadsheet that extracts data from your SQL Server database, manipulates that data through the use of Excel formulas and, possibly, some VBA code which is then used to calculate P&L, hedging requirements or even risk numbers. Management comes to you and tells you that they need to get rid of the spreadsheet and that the results of the spreadsheet calculations need to be persisted on the database.
SQL Server has a very small set of functions for analyzing data. Excel has hundreds of functions for analyzing data, with many of them focused on specific financial and statistical calculations. Is it even remotely possible that you can use SQL Server to replace the complex calculations being done in a spreadsheet?
Westclintech has developed a library of functions that match or exceed the functionality of Excel’s functions and contains many functions that are not available in EXCEL. Their XLeratorDB library of functions contains over 700 functions that can be incorporated into T-SQL statements.
XLeratorDB takes advantage of the SQL CLR architecture introduced in SQL Server 2005. SQL CLR permits managed code to be compiled into the database and run alongside built-in SQL Server functions like COUNT or SUM. The Westclintech developers have taken advantage of this architecture to bring robust analytical functions to the database.

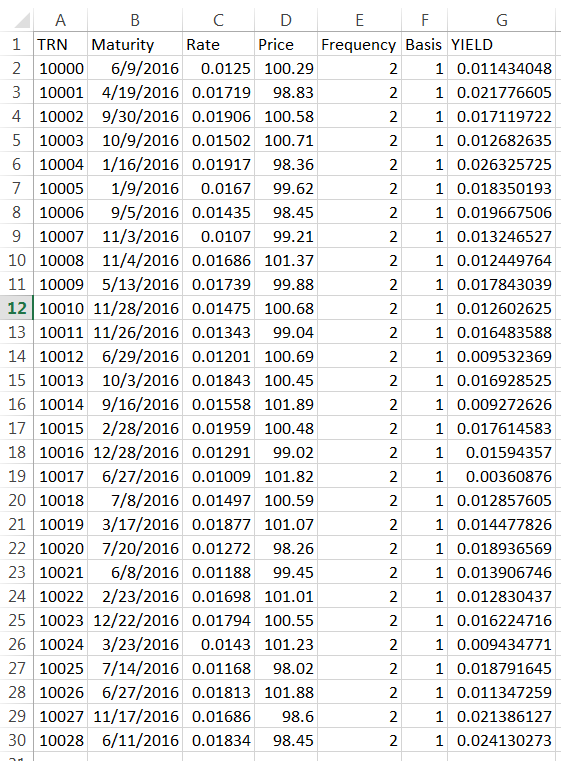

In our hypothetical spreadsheet, let’s assume that our users are using the YIELD function and that the data are extracted from a table in our database called BONDS. Here’s what the spreadsheet might look like.
We go to column G and see that it contains the following formula.
Obviously, SQL Server does not offer a native YIELD function. However, with XLeratorDB we can replicate this calculation in SQL Server with the following statement:
wct.YIELD(CAST(GETDATE() AS date),Maturity,Rate,Price,100,Frequency,Basis) AS YIELD

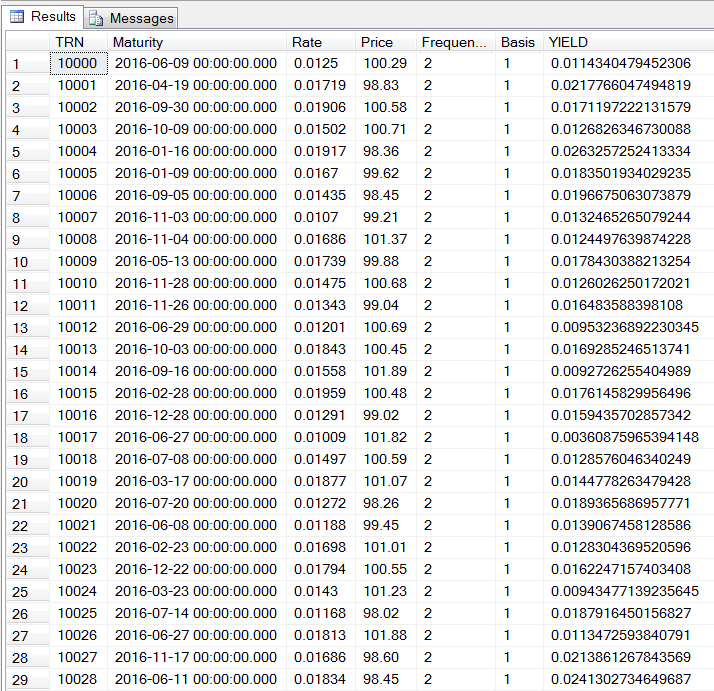

This produces the following result.
This illustrates one of the best features about XLeratorDB; it is so easy to use. Since I knew that the spreadsheet was using the YIELD function I could use the same function with the same calling structure to do the calculation in SQL Server. I didn’t need to know anything at all about the mechanics of calculating the yield on a bond. It was pretty close to cut and paste. In fact, that’s one way to construct the SQL. Just copy the function call from the cell in the spreadsheet and paste it into SMS and change the cell references to column names. I built the SQL for this query by starting with this.
I then changed the cell references to column names.
Finally, I replicated the TODAY() function using GETDATE() and added the schema name to the function name.
Then I am able to execute the statement returning the results seen above.
The XLeratorDB libraries are heavy on financial, statistical, and mathematical functions. Where there is an analog to an Excel function, the XLeratorDB function uses the same naming conventions and calling structure as the Excel function, but there are also hundreds of additional functions for SQL Server that are not found in Excel.

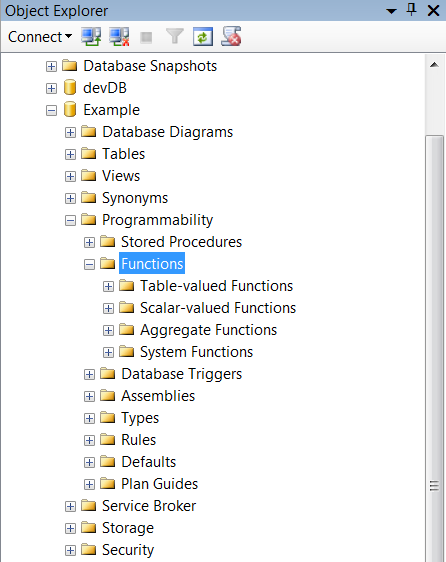

You can find the functions by opening Object Explorer in SQL Server Management Studio (SSMS) and expanding the Programmability folder under the database where the functions have been installed. The Functions folder expands to show 3 sub-folders: Table-valued Functions; Scalar-valued functions, Aggregate Functions, and System Functions. You can expand any of the first three folders to see the XLeratorDB functions.

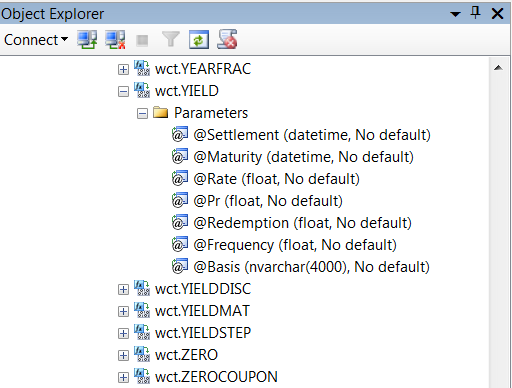

Since the wct.YIELD function is a scalar function, we will open the Scalar-valued Functions folder, scroll down to the wct.YIELD function and and click the plus sign (+) to display the input parameters.

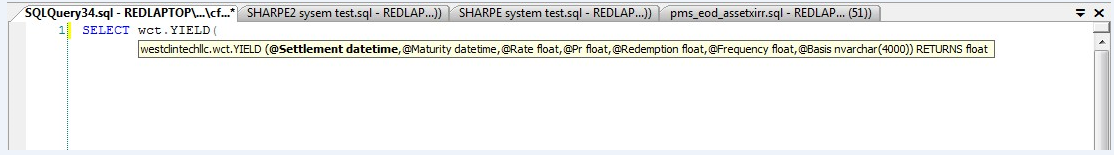

The functions are also Intellisense-enabled, with the input parameters displayed directly in the query tab.
The Westclintech website contains documentation for all the functions including examples that can be copied directly into a query window and executed. There are also more one hundred articles on the site which go into more detail about how some of the functions work and demonstrate some of the extensive business processes that can be done in SQL Server using XLeratorDB functions and some T-SQL.
XLeratorDB is organized into libraries: finance, statistics; math; strings; engineering; and financial options. There is also a windowing library for SQL Server 2005, 2008, and 2012 which provides functions for calculating things like running and moving averages (which were introduced in SQL Server 2012), FIFO inventory calculations, financial ratios and more, without having to use triangular joins.
To get started you can download the XLeratorDB 15-day free trial from the Westclintech web site. It is a fully-functioning, unrestricted version of the software. If you need more than 15 days to evaluate the software, you can simply download another 15-day free trial.
XLeratorDB is an easy and cost-effective way to start adding sophisticated data analysis to your SQL Server database without having to know anything more than T-SQL.
Get XLeratorDB Today and Now!
Reference: Pinal Dave (http://blog.sqlauthority.com)
