Finding Orphaned Child Rows Before Adding a Foreign Key

A foreign key fails to install when existing child values point at parents that are absent. Find orphaned child rows first, then make a business decision about each exception before enforcing the relationship.

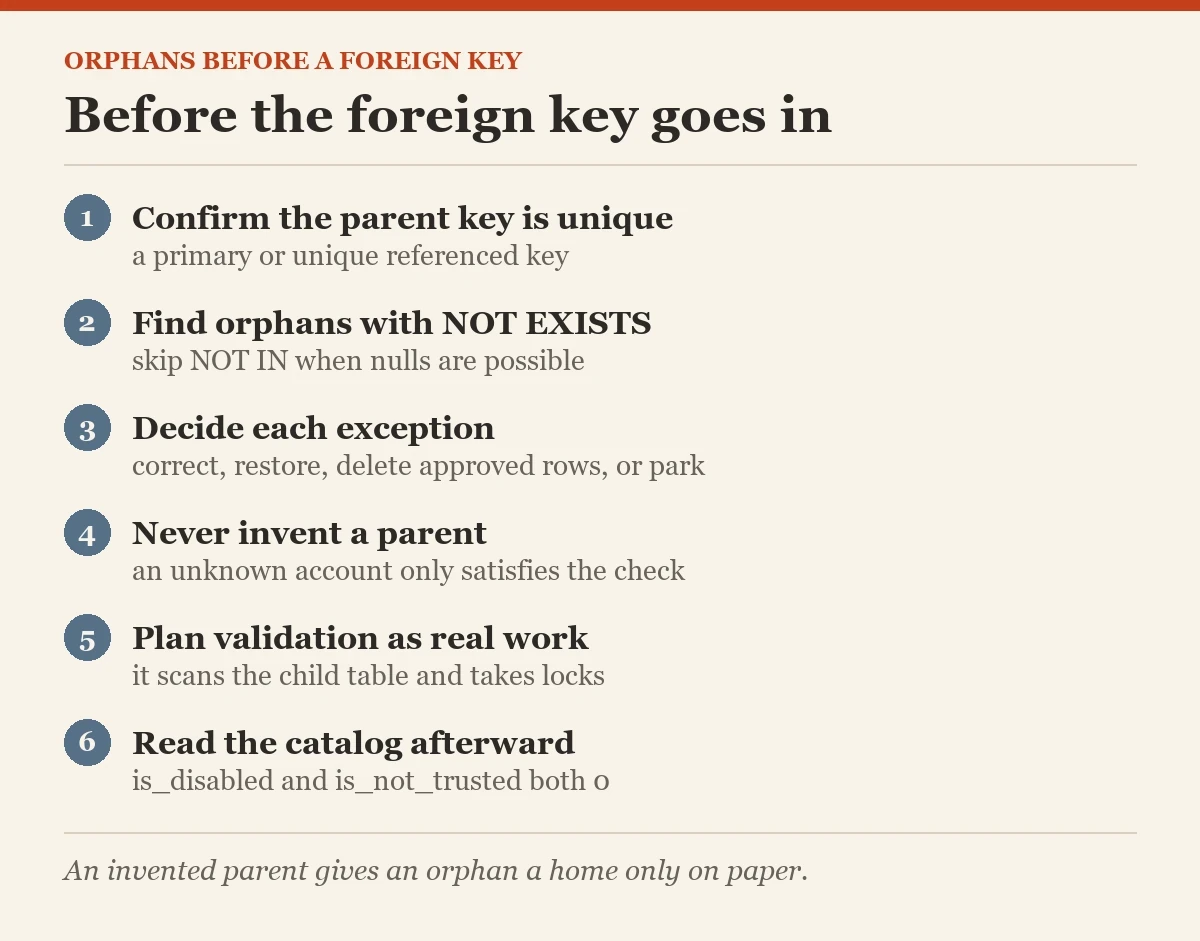

Define the Relationship Before Repairing Data

A child row's parent identifier is a promise about a relationship. Without a foreign key, the application can store a value that no longer identifies an existing parent. Adding the constraint later exposes those accumulated exceptions.

I check whether the intended parent key is genuinely unique before examining the child rows. A relationship to an ambiguous parent needs a different repair from a relationship to no parent. The constraint needs a primary or unique referenced key.

Decide whether a null child value means no relationship is assigned. A nullable foreign key permits that state. A missing non-null parent identifier is an orphan, whereas an allowed null has a different business meaning.

Use the same data type and compatible definitions for the linked columns. Implicit conversion in a diagnostic join can obscure a design mismatch. Review the table definitions before treating a returned list as the complete repair plan.

The demonstration uses a disposable database and deliberately invalid input. Its child row with parent 99 exists to show the check. No returned count here is presented as a result already measured on your instance.

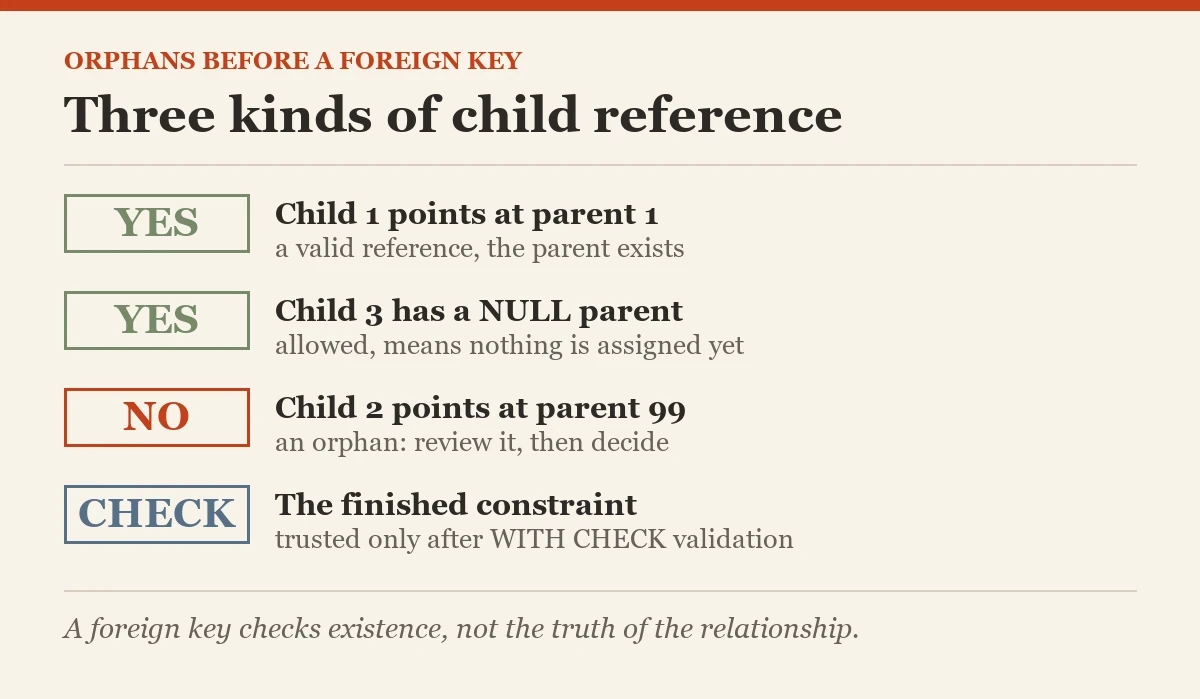

Build a Sample With a Valid Row and an Orphan

Create the parent key before the child relationship. The child table initially lacks a foreign key so the invalid reference can be inserted. A nullable parent identifier gives you a separate unassigned case to compare.

CREATE TABLE dbo.ParentCheckDemo
(
    ParentID int NOT NULL PRIMARY KEY,
    ParentName nvarchar(100) NOT NULL
);
CREATE TABLE dbo.ChildCheckDemo
(
    ChildID int NOT NULL PRIMARY KEY,
    ParentID int NULL,
    DetailText nvarchar(100) NOT NULL
);
INSERT dbo.ParentCheckDemo VALUES (1, N'First parent'), (2, N'Second parent');
INSERT dbo.ChildCheckDemo VALUES
(1, 1, N'Valid association'),
(2, 99, N'Association requiring review'),
(3, NULL, N'Unassigned association');

Check whether the real application has other child tables participating in the same business record. Repairing one table while leaving related references inconsistent does not restore the whole relationship. Keep the review at the business-record level.

Do not create a fake parent merely to satisfy validation. A row named unknown account can make the foreign key succeed while the application still contains invented associations. The constraint validates existence, not the truth of the relationship.

Find Orphaned Child Rows With Two Equivalent Queries

NOT EXISTS expresses the test directly. Exclude null child values when those are permitted. The correlated predicate checks the parent key for each non-null reference without multiplying child rows.

SELECT c.ChildID, c.ParentID, c.DetailText
FROM dbo.ChildCheckDemo AS c
WHERE c.ParentID IS NOT NULL
  AND NOT EXISTS
  (
      SELECT 1 FROM dbo.ParentCheckDemo AS p
      WHERE p.ParentID = c.ParentID
  )
ORDER BY c.ChildID;

A LEFT JOIN can express the same missing-parent test. Check a non-nullable parent key for null after the join. Checking a nullable descriptive parent column would misclassify a matched row whose description happened to be null.

SELECT c.ChildID, c.ParentID, c.DetailText
FROM dbo.ChildCheckDemo AS c
LEFT JOIN dbo.ParentCheckDemo AS p ON p.ParentID = c.ParentID
WHERE c.ParentID IS NOT NULL AND p.ParentID IS NULL
ORDER BY c.ChildID;

The two forms should identify the same exceptions under this model. Use their results for review, not as permission to delete them. A missing parent can indicate a failed import, a retired record, or the wrong identifier in the child.

Avoid NOT IN when the subquery can return nulls. Its three-valued logic can produce a different answer from the intended missing-parent test. NOT EXISTS makes the nullable-data question easier to reason about here.

Repair Orphaned Child Rows You Can Explain

Choose among correcting the reference, restoring a legitimate parent, deleting approved invalid data, or parking it in a reviewed exception store. Preserve the original values and reason before making an irreversible business-data change.

For this sample, assume review confirms child 2 belongs to parent 2. The following update demonstrates that specific correction. It is not a policy of assigning every orphan to the nearest available parent.

BEGIN TRANSACTION;
SELECT ChildID, ParentID, DetailText
FROM dbo.ChildCheckDemo WHERE ChildID = 2;
UPDATE dbo.ChildCheckDemo
SET ParentID = 2
WHERE ChildID = 2 AND ParentID = 99;
SELECT ChildID, ParentID, DetailText
FROM dbo.ChildCheckDemo WHERE ChildID = 2;
COMMIT TRANSACTION;

A production repair needs an approved mapping and an affected-row check. If the current value changed since review, stop and investigate that difference. Updating by child identifier alone can overwrite a newer correction.

I retain the exception list with its decision for each row. Otherwise, the constraint's eventual success hides how the data was repaired. The evidence belongs beside the change, not only in a successful completion message.

Add the Constraint With Existing-Data Validation

WITH CHECK validates existing rows while installing the foreign key. If an unresolved orphan remains, SQL Server rejects the relationship, including error 547 for a conflicting reference. Treat that failure as information about data still needing review.

ALTER TABLE dbo.ChildCheckDemo WITH CHECK
ADD CONSTRAINT FK_ChildCheckDemo_Parent
FOREIGN KEY (ParentID) REFERENCES dbo.ParentCheckDemo(ParentID);
SELECT name, is_disabled, is_not_trusted
FROM sys.foreign_keys
WHERE parent_object_id = OBJECT_ID(N'dbo.ChildCheckDemo');

Confirm is_disabled is zero and is_not_trusted is zero. Enabled and trusted are different properties. A constraint enabled without checking historical data can enforce later writes while remaining untrusted for the earlier population.

For an existing untrusted constraint, the validation form uses WITH CHECK CHECK CONSTRAINT. The repeated CHECK has a purpose: validate the old data and enable enforcement. Inspect the catalog again after that operation.

ALTER TABLE dbo.ChildCheckDemo WITH CHECK
CHECK CONSTRAINT FK_ChildCheckDemo_Parent;

The optimizer can rely on a trusted relationship for applicable simplifications. An untrusted foreign key does not supply the same proof. NOCHECK therefore changes more than how conveniently the installation script completes.

Plan Validation as Real Work

Validation scans the child population and checks referenced keys. On a large busy table, that takes time and locks. Choose a quiet window and rehearse with representative data rather than assuming a short DDL statement is cheap.

Consider an index on the child reference when it supports normal joins and parent-change checks. SQL Server does not automatically create that child index for every foreign key. Review its value and write cost with the rest of the workload.

What prevents another orphan from arriving between your review and constraint installation? Coordinate concurrent writes or let the final validated DDL detect the new exception. An earlier clean query does not freeze the table's future.

Keep the null policy, approved repairs, constraint definition, and final trust check together. The useful outcome is a relationship the database can enforce and the business can explain.

A composite foreign key needs a matching diagnostic for every participating column. Nullable components also change which rows require a parent match. Do not extend this single-column query by checking only one part of a business key. Test the complete relationship on the disposable tables first.

An invented parent gives an orphan a home only on paper. It still needs an approved business explanation. Orphaned child rows describe a broken stored relationship, not a complete cleanup policy. Decide their business meaning before correcting orphaned child rows or enforcing the foreign key.

Related reading on this blog: Foreign Keys Without Indexes: Finding and Fixing Slow Deletes and Walking Foreign Key Chains to Find a Safe Delete Order.

A successful foreign key is not a data-cleanup explanation, it is enforcement of a relationship whose existing rows were verified.
