Primary Data File Extensions: Does the .mdf Name Matter?

The primary data file extension is a habit, not a rule: SQL Server does not care whether the file ends in .mdf. Someone once asked me if the primary file could use any other extension. Yes, it can, and I will prove it by building a database that wears the wrong names.

What the extension really is

By default, SQL Server names the primary data file .mdf, secondary data files .ndf and the log .ldf. Those are only suggestions. The engine does not use the extension to decide what a file is. It goes by how you declare the file and by what is inside it.

The demo below creates one database and removes it at the end. It puts the files in your instance’s default data folder. The primary file ends in .pdf, a secondary file ends in .dat, and the log ends in .mdf, just to be rude.

Create a database with odd names

DROP DATABASE IF EXISTS ExtensionDemo;
DECLARE @p nvarchar(260) = CONVERT(nvarchar(260), SERVERPROPERTY('InstanceDefaultDataPath'));
DECLARE @sql nvarchar(max) = N'CREATE DATABASE ExtensionDemo
ON PRIMARY (NAME = ExtensionDemo_data, FILENAME = N''' + @p + N'ExtensionDemo.pdf''),
   (NAME = ExtensionDemo_more, FILENAME = N''' + @p + N'ExtensionDemo_more.dat'')
LOG ON (NAME = ExtensionDemo_log, FILENAME = N''' + @p + N'ExtensionDemo_log.mdf'');';
EXEC (@sql);

No error. SQL Server created all three files without complaint. The dynamic SQL is only there so the code works on any server, whatever its default folder is.

Ask SQL Server what each file is

SELECT name,
       type_desc,
       RIGHT(physical_name, 4) AS Ending
FROM sys.master_files
WHERE database_id = DB_ID('ExtensionDemo')
ORDER BY file_id;

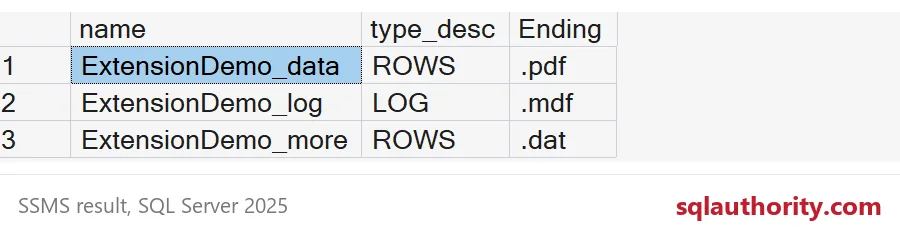

The Ending column shows the last four characters of each path. The .pdf row is listed as ROWS, which means data. The .dat row is also ROWS. The .mdf row is listed as LOG. The type comes from how you declared each file, not from the letters after the dot.

Detach it and attach it again

Attach is the other place this question comes up, so let me take that trip too. Detach the database, then attach it using the same odd names.

EXEC sp_detach_db 'ExtensionDemo';
DECLARE @p nvarchar(260) = CONVERT(nvarchar(260), SERVERPROPERTY('InstanceDefaultDataPath'));
DECLARE @sql nvarchar(max) = N'CREATE DATABASE ExtensionDemo ON
(FILENAME = N''' + @p + N'ExtensionDemo.pdf''),
(FILENAME = N''' + @p + N'ExtensionDemo_more.dat''),
(FILENAME = N''' + @p + N'ExtensionDemo_log.mdf'')
FOR ATTACH;';
EXEC (@sql);
SELECT d.state_desc, f.type_desc,
       RIGHT(f.physical_name, 4) AS Ending
FROM sys.databases AS d
JOIN sys.master_files AS f ON f.database_id = d.database_id
WHERE f.database_id = DB_ID('ExtensionDemo')
ORDER BY f.file_id;

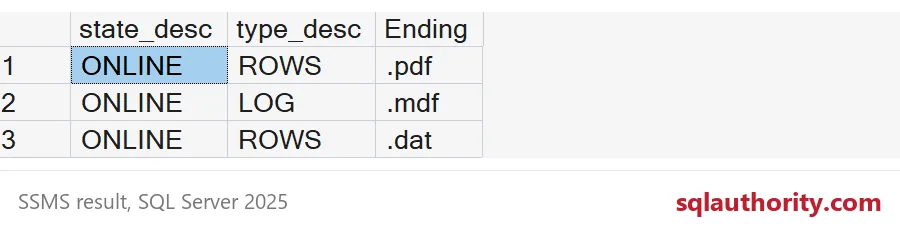

The database comes back ONLINE, and each file keeps its role. The .pdf is still data, and the .mdf is still the log. The attach did not care about the names.

Where odd names bite

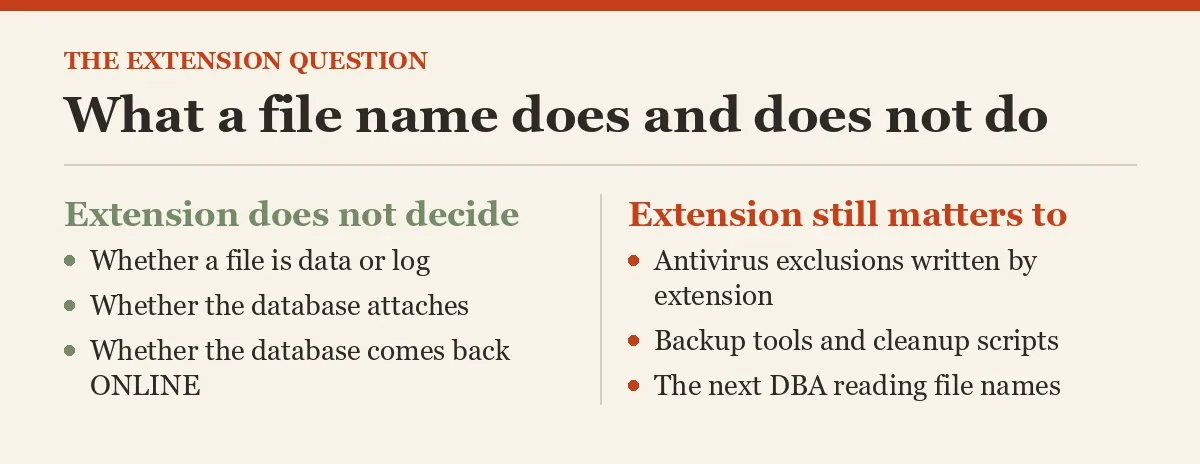

SQL Server is relaxed. Everything around it is not. Antivirus exclusions are usually written as a list of extensions, so a .pdf data file can fall outside the list. Backup tools, file screens and cleanup scripts also love to judge files by their ending. A log that is named .mdf will confuse the next DBA at 2 AM, and they will be right to be annoyed.

Check your own server

Before you worry, look. This query lists every data or log file whose ending does not match its role. Data files should end in .mdf or .ndf, and log files in .ldf. On a tidy server it returns nothing. While the demo database is alive, it returns exactly the three demo files. Yes, even the log that wears an .mdf name.

SELECT DB_NAME(database_id) AS DatabaseName, type_desc, RIGHT(physical_name, 4) AS Ending
FROM sys.master_files
WHERE type_desc IN ('ROWS', 'LOG')
  AND RIGHT(physical_name, 4) NOT IN
      (CASE WHEN type_desc = 'LOG' THEN '.ldf' ELSE '.mdf' END,
       CASE WHEN type_desc = 'LOG' THEN '.ldf' ELSE '.ndf' END)
ORDER BY DatabaseName, file_id;

If rows come back on a real server, do not rename files in a panic. Renaming a data file means taking the database offline or detaching it, renaming the file on disk, and attaching with the new name. That is a maintenance window, not a lunch-break fix. First ask who chose the name, and why. Often the answer is a cheerful developer from years ago.

My advice is simple. Keep .mdf, .ndf and .ldf unless you have a real reason. The demo proves you can break the habit. It does not say you should.

DROP DATABASE IF EXISTS ExtensionDemo;

Run that last line and the demo database is gone.

An .mdf extension is not a requirement, it is a courtesy to the next DBA.
