Loading Large Files Fast With BULK INSERT

The file is ready, yet the load fails because SQL Server cannot read its path. BULK INSERT starts with access and format. Most failed loads are not caused by the command’s name. They come from mismatched delimiters, access permissions, oversized transactions, or missing validation.

Begin With the File Contract

Record encoding, delimiter, quote rules, header rows, line endings, NULL representation, and column order before loading. CSV is not a single universal format. Embedded commas and line breaks inside quoted fields can surprise a simple terminator-based import. A format file is useful when file columns and table columns differ or the layout needs explicit control.

I test a small representative slice that includes quotes, missing values, non-ASCII characters, and the longest fields. A ten-row happy path proves little about a million-row file. Build a staging table with types and lengths that can accept the intended values, then validate them before final insertion. Can your SQL Server service account read the exact file path the command names?

Confirm Server-Side File Access for BULK INSERT

The SQL Server service reads the file path for a local bulk import. A path visible only on the query workstation does not automatically exist on the database host. Use a local server path or a secured share accessible to the service identity, and grant only required permissions. Avoid embedding personal credentials in an import script.

Check the exact path with operations before running the load. A mapped drive letter in an interactive session is not a reliable service path. I prefer an approved UNC location or a controlled server directory, with file arrival and cleanup documented. The shortest path to a fast load is first making sure the engine can see the file.

Use a Staging Table

A staging table gives the import a simple landing area and keeps malformed or duplicate rows away from production tables. It can be a heap with few constraints for fast ingestion, followed by explicit validation. Keep a load identifier so rows from separate files do not become indistinguishable. Plan how to resume or discard a failed batch.

The target table’s clustered keys, foreign keys, and nonclustered indexes can make direct loading slower. Staging lets you measure file ingestion separately from business-rule insertion. That separation also makes error handling human-readable. A fast command is useful only if the rows are correct when users query them.

Set BULK INSERT Batches and Locks

BATCHSIZE controls rows per transaction in BULK INSERT. Smaller batches can limit rollback work and log pressure after an error, though they add commit overhead. TABLOCK can help bulk loading and minimal-logging eligibility in the right recovery model and table shape, but it affects concurrent readers and writers. Choose both through a realistic test.

This command assumes a prepared staging table and a CSV with a header. Replace the path and file settings with the actual contract. A value such as 50000 is an example for testing, not a universal optimum.

BULK INSERT dbo.OrderStage
FROM 'D:\Import\orders.csv'
WITH (
    FORMAT = 'CSV',
    FIRSTROW = 2,
    CODEPAGE = '65001',
    TABLOCK,
    BATCHSIZE = 50000,
    MAXERRORS = 0
);

Use Format Files When Needed

A format file maps fields from the file to table columns and describes data representation. It is especially helpful when the input omits columns, uses a nonstandard layout, or must be imported repeatedly with the same schema. Version the format specification together with the file contract, because a silent upstream column reorder can corrupt meaning without changing row count.

Generate and test the format file using supported SQL Server tools for the actual source format. This sample shows how BULK INSERT references an existing format file. The file must also be accessible to SQL Server. Validate rows after import, not just whether the command completed.

BULK INSERT dbo.OrderStage
FROM 'D:\Import\orders.dat'
WITH (
    FORMATFILE = 'D:\Import\orders.fmt',
    TABLOCK,
    BATCHSIZE = 50000
);

Consider Parallel Loads Carefully

Independent files can load into separate staging tables or separate nonoverlapping partitions through coordinated sessions. Parallelism can increase throughput when storage, log, and CPU have headroom. It can also create latch contention, saturate the log device, or complicate failure recovery. Do not assume two import sessions finish in half the time.

Partitioned destinations need aligned boundaries and a transfer plan. Loading to separate staging targets can reduce contention, then validated batches can move to final tables. I measure total pipeline time and downstream redo or backup impact. The import command’s own duration is only one part of a production load.

Measure Throughput and Bottlenecks

Record file size, row count, elapsed time, CPU, log usage, and waits. If throughput stalls, identify whether parsing, storage reads, log writes, target indexes, or locks dominate. Increasing batch size will not fix a file share that cannot deliver bytes. Dropping a useful index without testing can move the cost into every later query.

Compare repeatable runs with the same target state. Loading into an empty heap and appending to a populated indexed table are different benchmarks. Cache and storage warmup also affect results. I keep a short run sheet for each test so the fastest number is attached to its conditions, not just to a cheerful screenshot.

Validate Every BULK INSERT Load

Count imported rows and compare them with the file’s expected data-row count, accounting for headers and rejects. Check key uniqueness, required fields, date ranges, and aggregate totals that can reveal shifted columns. If the file source provides a checksum or manifest, verify it before import. Record the source file identity and load timestamp.

The query below illustrates basic staging checks. Replace the expected count and business conditions with values from the actual manifest. A row count alone cannot detect a customer ID placed in the wrong column.

SELECT COUNT_BIG(*) AS staged_rows,
       COUNT_BIG(DISTINCT OrderID) AS distinct_orders,
       SUM(CASE WHEN CustomerID IS NULL THEN 1 ELSE 0 END)
           AS missing_customers
FROM dbo.OrderStage;

SELECT MIN(OrderDate) AS earliest_order,
       MAX(OrderDate) AS latest_order
FROM dbo.OrderStage;

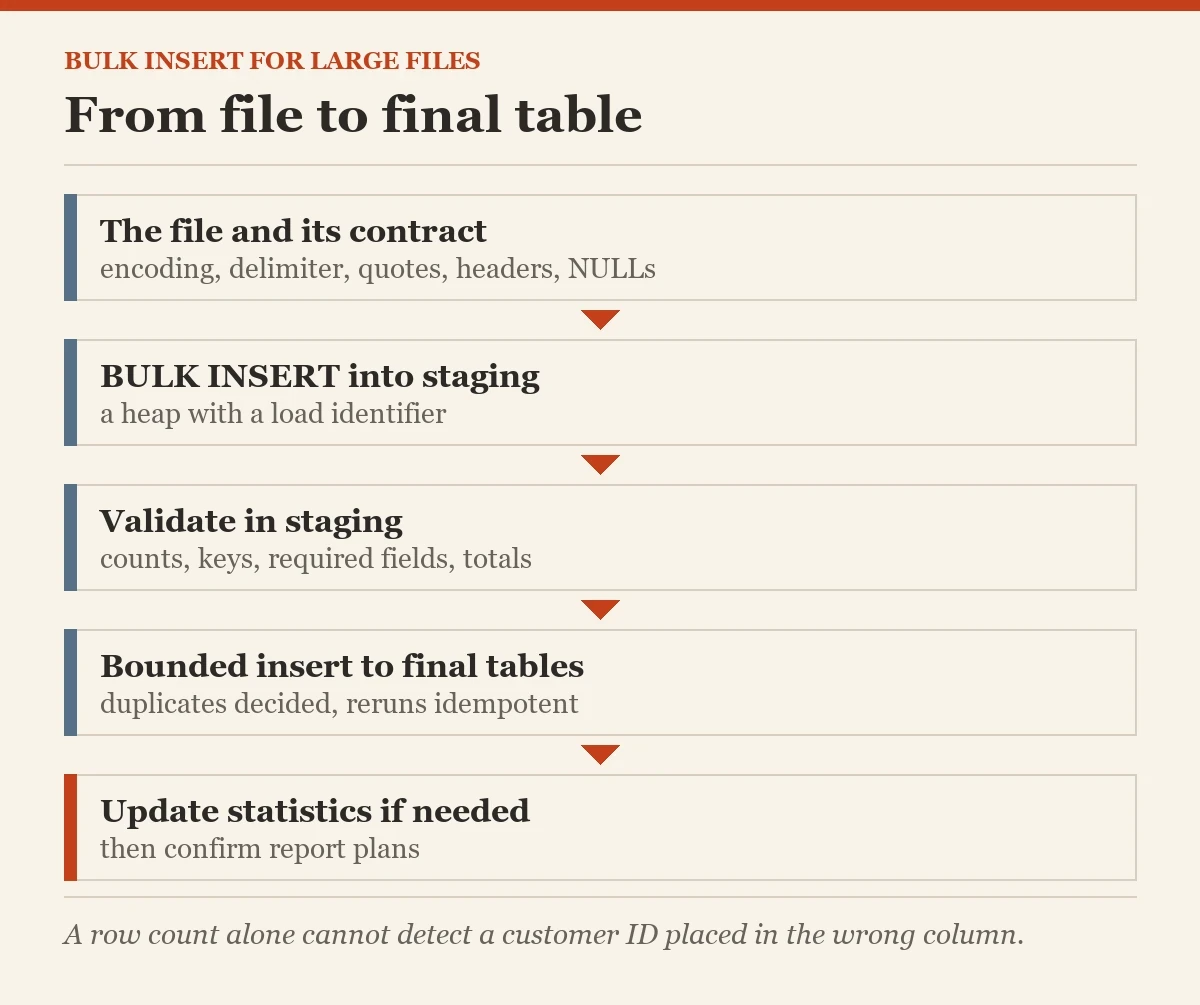

Move Data Into Service Deliberately

After validation, transfer rows to the destination in bounded transactions with appropriate error handling. Decide how duplicates are treated and make reruns idempotent. Update statistics if the new volume changes query estimates. Confirm that important reports still choose sensible plans. Large loads can change workload behavior even when the import itself was smooth.

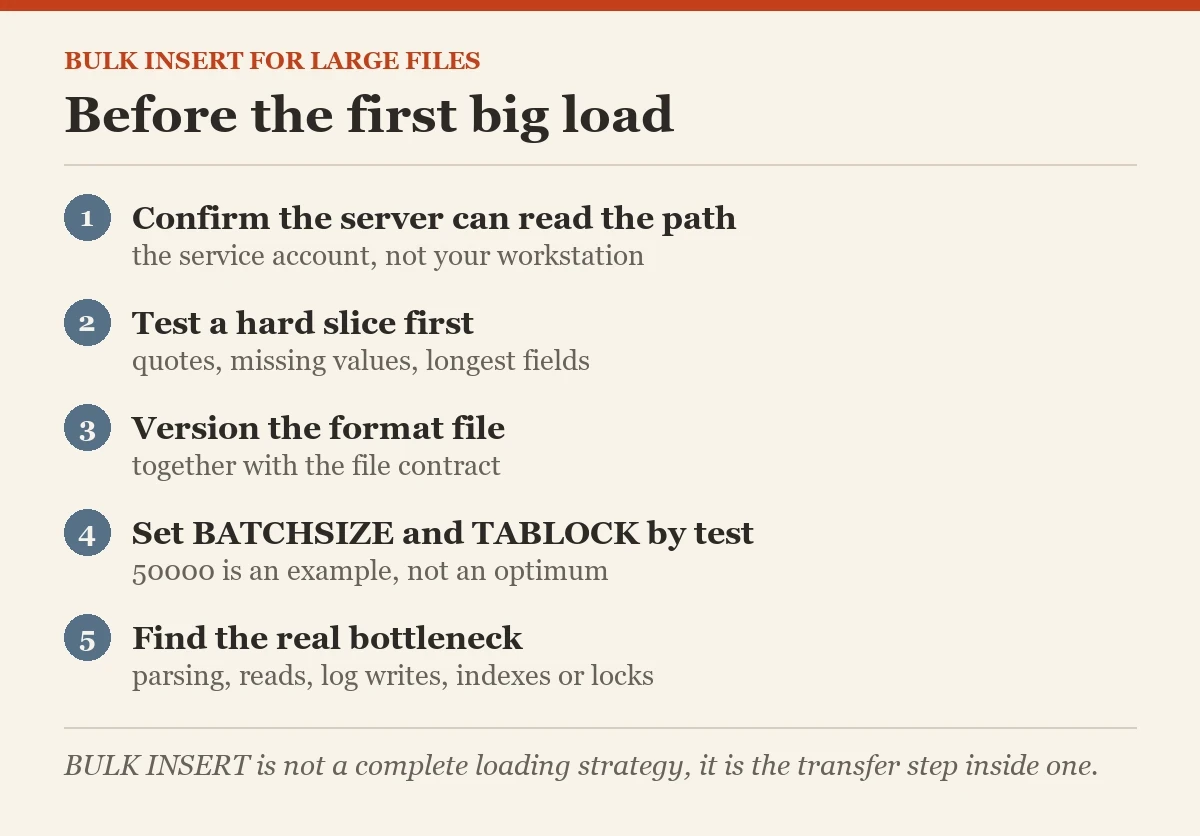

BULK INSERT is a strong ingestion tool, but speed comes from the whole design: accurate file contract, accessible path, staging, measured batch size, and verification. The command is short. The checklist earns its length by preventing a fast shipment of wrong data.

Related reading on this blog: Import CSV File Into SQL Server Using Bulk Insert: Load Comma Delimited File Into SQL Server and FIX: Msg 4864, Level 16, State 1: Bulk load data conversion error.

BULK INSERT is not a complete loading strategy, it is the transfer step inside one.

Published by Pinal Dave on SQLAuthority. More of my work at pinaldave.com.
