Connecting Java Applications With the JDBC Driver

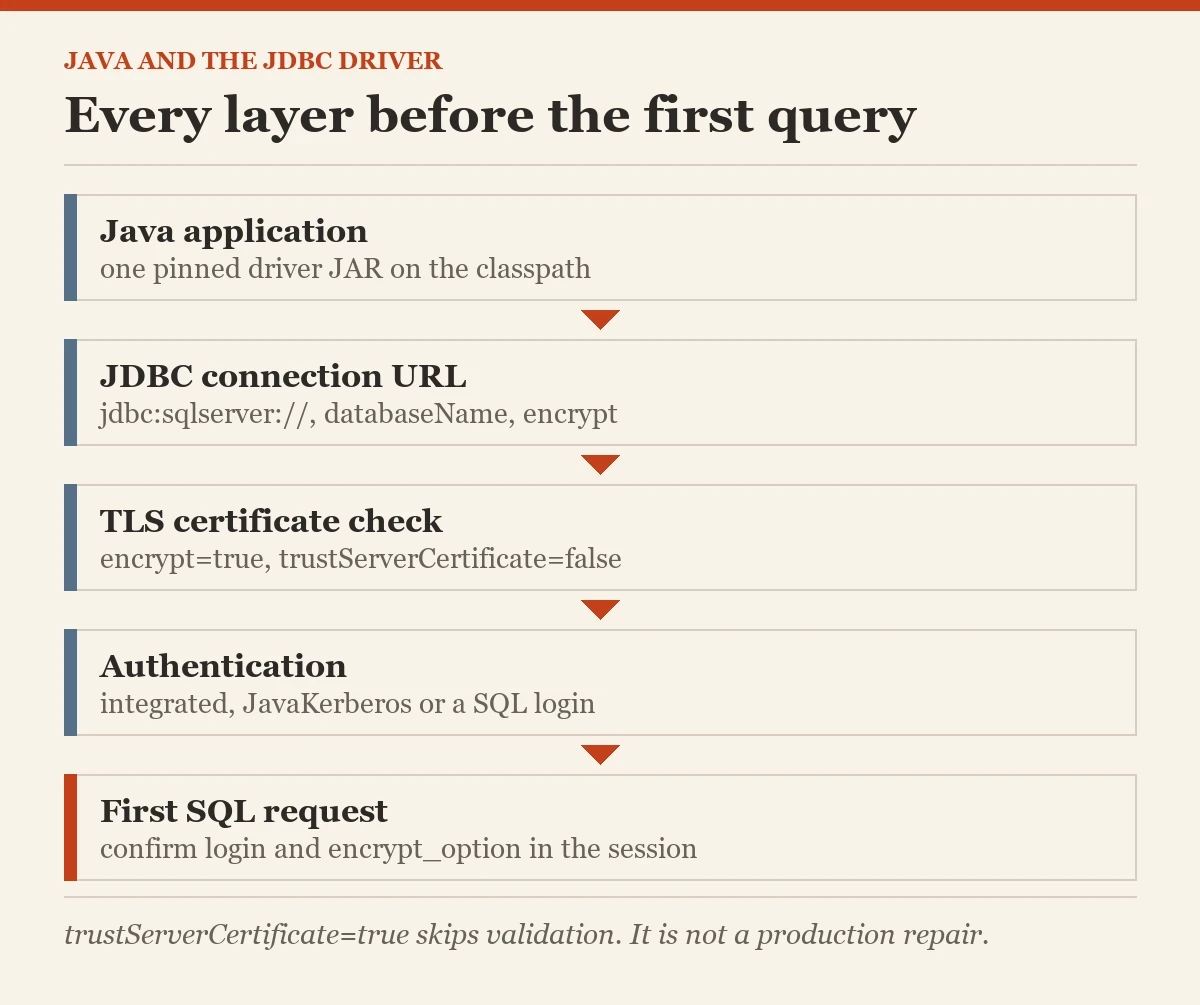

A Java service can fail before it sends a single query. The JDBC driver decides how it reaches SQL Server, authenticates, and validates encryption. Treat that driver and its connection settings as part of the application release.

Match the JDBC Driver and Runtime

Choose a supported Microsoft JDBC driver for SQL Server release that works with your Java runtime and target SQL Server. Check the current compatibility matrix before upgrading the JAR. Put one intended driver version on the application classpath and verify the deployed artifact actually carries it. Several JAR copies can make a local test use a different driver than production.

I start with the application’s dependency tree, not with a screenshot of an installer. Which JAR does the running process load? Record its version alongside the Java version and connection settings. A connection failure after a rollout can come from the driver, the runtime, or the server. Naming all three shortens the first investigation.

Build the URL Deliberately

The Microsoft URL begins with jdbc:sqlserver://, followed by the server and optional port. Add properties such as databaseName and encrypt with semicolons. Set databaseName, encrypt, and trustServerCertificate explicitly for the target environment. Use the actual server name and database from the deployment record. Keep passwords out of the URL and source code. Use the approved secret mechanism.

I prefer an explicit port for a service with a fixed network endpoint. It avoids a hidden dependency on instance discovery. If you use an instance name instead, confirm the browser and network configuration. Test the URL from the actual application host, since a successful connection from a DBA desktop proves a different route.

Keep Certificate Validation On

Encryption protects traffic, but validation tells the client it reached the intended server. Use encrypt=true and trustServerCertificate=false with a certificate trusted by the Java runtime or a configured trust store. The server name must match the certificate identity, or a supported host name setting must express the expected name. Treat a mismatch as a configuration problem to fix.

Setting trustServerCertificate=true can make a test connect by skipping server certificate validation. It is not a production repair. I look at the certificate chain and host name before changing any flag. A green connection icon reached through a bypass does not answer whether the client trusts the right server.

Choose Integrated Authentication With Care

On Windows, the driver can use integrated authentication with its matching native authentication library and a service identity that has SQL Server access. The native library’s architecture and version must fit the Java process and driver. A JavaKerberos path is also supported and has its own ticket and service principal requirements. Decide which mode the application uses, then test it under the deployed service account.

I have seen a test pass under an interactive user while a Windows service failed with the same URL. The identity and ticket context differed. Confirm the SQL login shown after connection and compare it with the planned service identity. Do not embed a personal account to make the service start.

Verify the Actual Session

From a connected application session, query the server for the current login and transport. The query below is safe to run in a test endpoint or diagnostic command. It reports the connection that executed it, not all Java applications on the instance. Use it to confirm whether encryption and the authentication scheme match the plan. Keep the result with the deployment record.

If the application pool uses connections, test after the pool has recreated them. An old pooled session can survive a configuration edit until restart. I confirm the session after a fresh start, then check one normal application operation.

SELECT
    ORIGINAL_LOGIN() AS LoginName,
    c.net_transport,
    c.encrypt_option,
    c.auth_scheme
FROM sys.dm_exec_connections AS c
WHERE c.session_id = @@SPID;

Separate Pooling From JDBC Driver Behavior

Most Java applications use a connection pool. Set pool size, connection timeout, and validation behavior to match the workload. A driver upgrade can expose a certificate or login problem when the pool opens new connections. Do not blame query performance for a delay spent creating sessions. Log connection acquisition time separately from SQL execution time.

I check idle and peak connection counts against what the application expects. A runaway pool can exhaust resources on both sides. The following query shows current sessions grouped by program name on the server. It is a starting point. The application should also expose its own pool metrics.

SELECT
    program_name,
    COUNT(*) AS SessionCount
FROM sys.dm_exec_sessions
WHERE is_user_process = 1
GROUP BY program_name
ORDER BY SessionCount DESC;

Handle Errors Without Hiding Them

Log the SQL state, driver exception, server name, and operation category without logging credentials or sensitive parameter values. Distinguish TLS failures, authentication failures, network timeouts, and SQL errors. They need different owners. Do not retry every connection error forever. A certificate mismatch will not improve after another loop.

Keep the exact JDBC driver version in incident notes. Error wording and defaults can differ across releases. Test a controlled failure before production: wrong host, rejected credential, and invalid certificate in a safe environment. The resulting messages tell the support team what a real failure will look like.

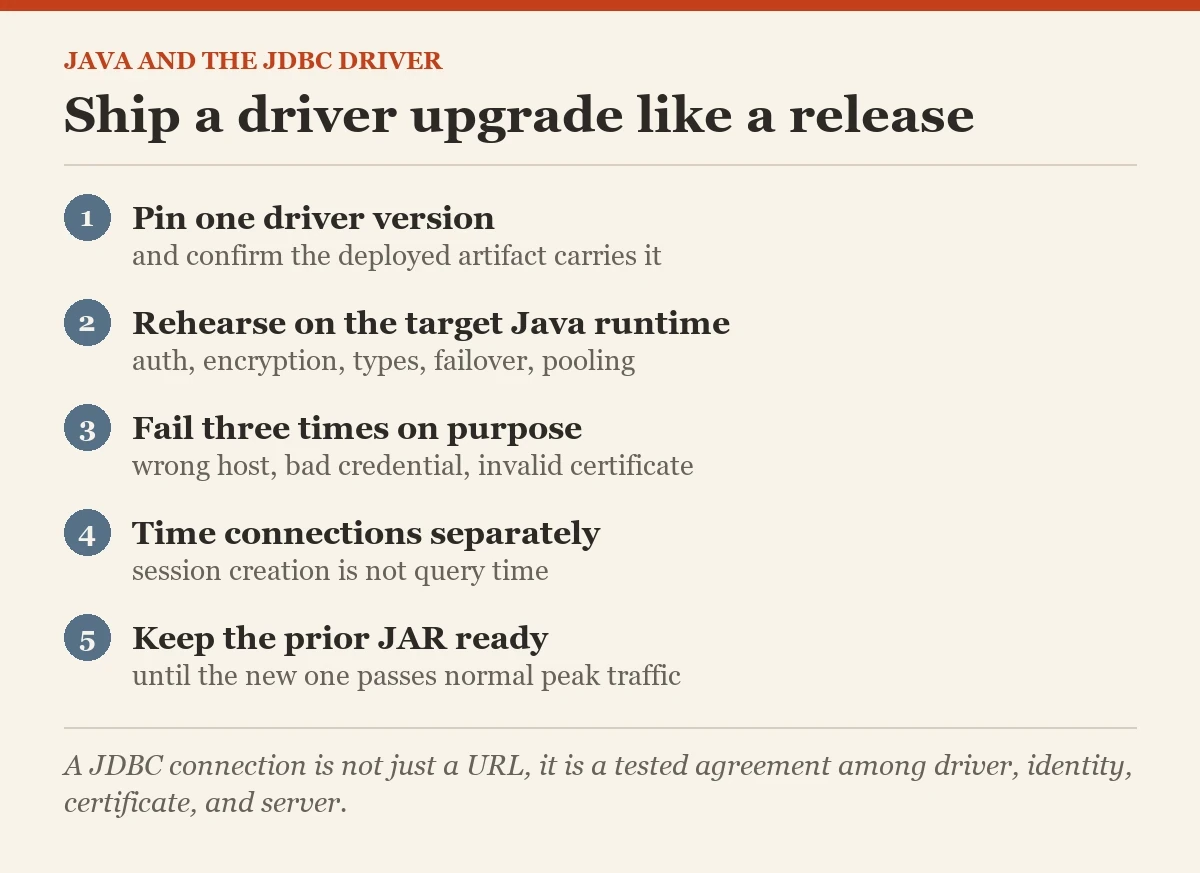

Upgrade the JDBC Driver as an Application Change

Pin the driver dependency, read its release notes, and rehearse the upgrade with the target Java runtime. Include authentication, encryption, data type handling, failover path, and pool behavior in the test. Compare observed results, not only whether the application starts. A test that executes one SELECT misses transaction and reconnect behavior.

When deployment succeeds, remove older JAR copies and document the selected version. I keep a short rollback plan for driver changes, including any certificate or URL setting changes made with them. The driver is a library, but its failure appears to users as a broken application. Keep the prior tested JAR and its configuration available until the new release has passed the normal peak traffic period.

Related reading on this blog: Connecting to SQL Server From Java, Python and .NET and Fix: Error: The certificate chain was issued by an authority that is not trusted.

A JDBC connection is not just a URL, it is a tested agreement among driver, identity, certificate, and server.
