Encrypting Connections to SQL Server

A successful connection can still leave questions about how it was protected on the wire. Encrypting connections to SQL Server means configuring TLS, trusting the certificate, and testing the client path.

Separate Encrypting Connections From Trust

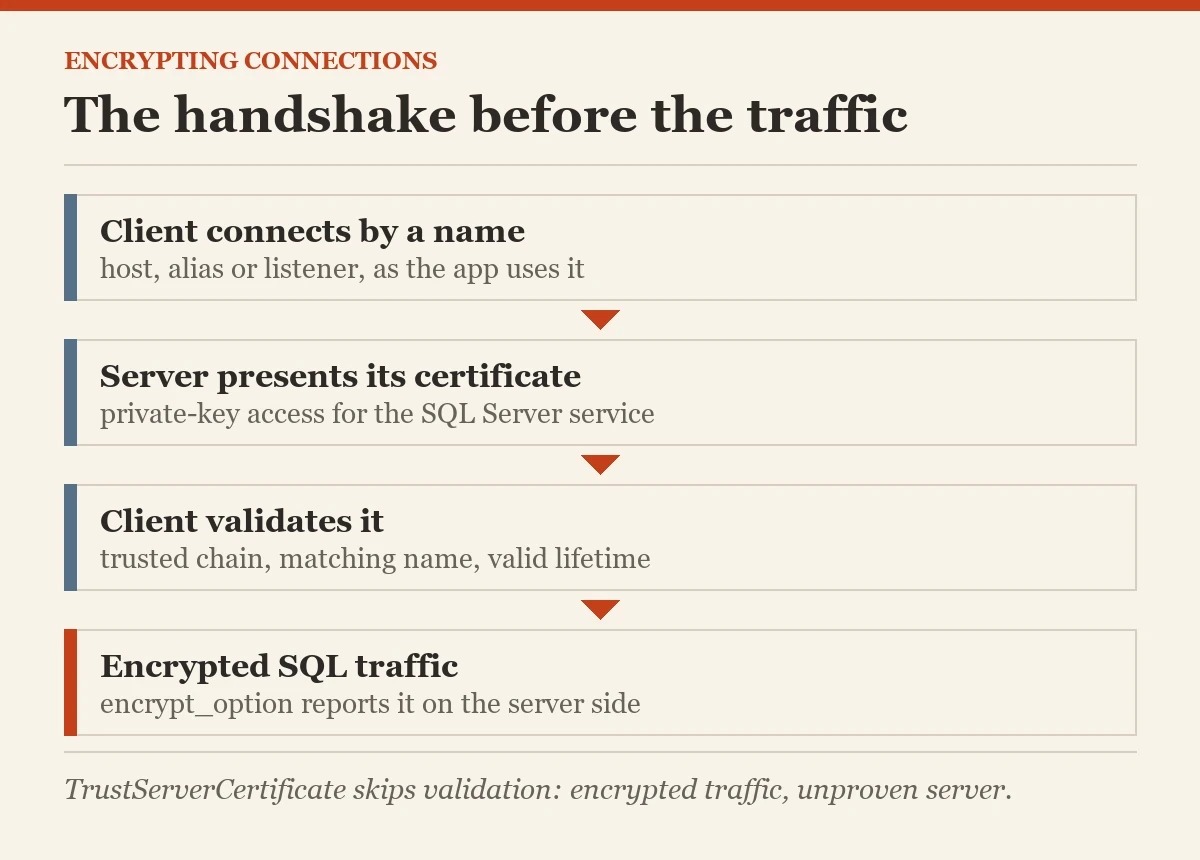

TLS encrypts traffic between client and server. Certificate validation tells the client whether it reached the expected server. TrustServerCertificate can allow encryption while skipping normal certificate chain validation. That can help diagnose a trust problem, but leaving it enabled weakens protection against an impostor endpoint.

I ask teams to state both outcomes: Is the session encrypted, and did the client validate the server identity? A green connection test alone answers neither. The right certificate has a trusted chain, appropriate name, and valid lifetime. Plan renewal before expiration. A certificate copied into place without client trust is not a finished rollout.

Inspect a Live Session

sys.dm_exec_connections reports encrypt_option for an active connection. Query your own session after connecting with the application’s driver settings. This confirms what SQL Server reports for that specific path. It does not prove the client validated the certificate, because that decision happens on the client. Record driver version and connection string options with the result.

I run this from the actual application network, not only from SSMS on the server. Local transports can behave differently. A test through the wrong route gives a correct answer to the wrong question.

SELECT session_id,
       net_transport,
       encrypt_option,
       auth_scheme,
       client_net_address
FROM sys.dm_exec_connections
WHERE session_id = @@SPID;

Use a Trusted Certificate

Install a certificate that the server can use for SQL Server TLS and that clients can validate. Check subject or subject alternative names against the server name clients use, including aliases or listeners. The certificate must have the proper key and private-key access for the SQL Server service. Follow the current platform guidance for certificate store placement and binding.

I test each common connection name. A certificate valid for the host name can fail when an application uses a listener name. Resolve that during planning, not during a production cutover. Keep a record of issuer, expiration, bound instance, and renewal owner. Do not share private keys in tickets or scripts. The administrative steps are as important as the certificate file.

Understand Force Encryption

Force Encryption on the server requires clients to negotiate encrypted transport for supported connections. It does not make an untrusted certificate trusted. A client can fail to connect when validation is required and the certificate chain or name is wrong. Test every driver and application before enforcing the setting broadly. Some legacy clients need upgrades or configuration changes.

I stage the rollout for encrypting connections: inventory clients, deploy trust, test encryption and validation, then enforce where policy requires. A server switch flipped before client preparation can become an outage. Document rollback and the exact endpoint tested. A failover listener and a direct node name can present different certificate-name questions. Include both if applications use both.

A second check shows whether other currently connected sessions report encrypted transport. It cannot prove certificate validation on those clients. Use it to find paths that deserve a client-side test, then confirm each driver and endpoint with its owner.

SELECT encrypt_option, net_transport, COUNT(*) AS connection_count
FROM sys.dm_exec_connections
GROUP BY encrypt_option, net_transport
ORDER BY encrypt_option, net_transport;

Treat TrustServerCertificate as a Diagnostic

When a connection succeeds only with TrustServerCertificate enabled, the likely problem is certificate trust or name validation. Use that difference to investigate the chain and endpoint name. Do not declare the problem fixed by leaving validation disabled. The connection can still be encrypted, but the client has not established the server identity it expected.

I have seen this option added during a migration and forgotten for years. It is convenient in the way a doorstop is convenient on a secure door. Keep any temporary use dated, owned, and restricted. Replace it with trusted certificate deployment as soon as the issue is understood.

Check Driver Defaults

Current SQL Server drivers differ in encryption defaults and certificate-validation behavior. A driver upgrade can therefore expose an existing certificate problem even when the server configuration did not change. Read the documentation for the exact driver and version you deploy. Test the effective connection string, including settings inherited from framework defaults.

I record the driver version with a connection test. Without it, two applications can report opposite outcomes against the same server and both be correct. A setting named Encrypt can also accept modes that differ by driver. Do not translate options between drivers from memory. Verify the actual client library and its supported values.

Test Encrypting Connections After Failover and Renewal

A certificate change or availability-group failover can alter the endpoint a client sees. Test listener connections and direct administrative connections after renewal. Confirm encrypt_option from the server and validation success from the client. Monitor certificate expiration and failed handshakes. A renewal process is complete when clients still connect securely, not when the new certificate appears in a store.

I run a planned test before the old certificate expires. A last-day replacement leaves little time to fix a missing private-key permission or name. Keep the previous configuration recorded for rollback. The certificate lifecycle belongs in the server operations calendar.

Protect More Than the Wire

TLS protects traffic in transit. It does not protect data from a privileged user at either endpoint, replace database permissions, or encrypt backups automatically. Keep least privilege, auditing, and storage controls in the design. Explain the boundary to application owners so encryption is not treated as a blanket security guarantee.

I ask what threat the change is meant to reduce. Network interception calls for encryption and validation. Data exposure through an overprivileged login calls for access work. Both can matter, but the tests differ. A precise threat leads to a precise verification plan.

Keep a Checklist for Encrypting Connections

For each application, record endpoint name, driver version, encryption setting, certificate-validation behavior, tested environment, and owner. Recheck after driver upgrades, certificate renewals, and server moves. Avoid storing secrets with the checklist. A short table prevents the same trust problem from being rediscovered at every release.

What would happen if the application stopped trusting the server certificate tomorrow? The team should know who owns renewal and how to test a fix. Encrypting connections succeeds when both the wire and the identity check work along the real client path.

Related reading on this blog: Fix: Error: The certificate chain was issued by an authority that is not trusted and Which SQL Server Client Driver to Use Now.

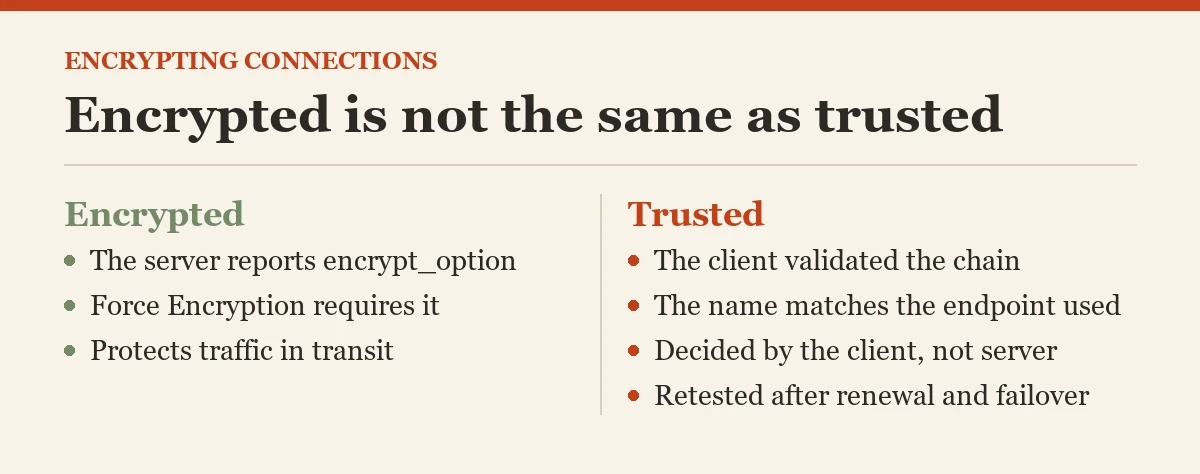

An encrypted connection is not a trusted connection, it is secure when the client also validates the server.
