SQL SERVER – How to Identify Locked Table in SQL Server?

Here is a quick script which will help users to identify locked tables in the SQL Server. Run it whenever you need to identify locked table names and their lock types.

SELECT
OBJECT_NAME(p.OBJECT_ID) AS TableName,
resource_type, resource_description
FROM
sys.dm_tran_locks l
JOIN sys.partitions p ON l.resource_associated_entity_id = p.hobt_id

When you run above script, it will display table name and lock on it.

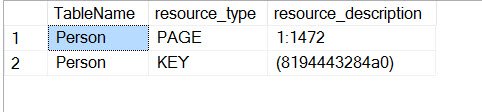

I have written code to lock the person table in the database. After locking the database, when I ran above script – it gave us following resultset.

One Gap in This Script and How to Close It

The script above joins resource_associated_entity_id to hobt_id in sys.partitions. That works for KEY, PAGE and RID locks, because for those locks the column holds a hobt_id. For a lock on the whole table, the resource type is OBJECT, and the same column holds the object_id instead. Those rows do not match any partition, so table level locks drop out of the result. Also, sys.partitions only knows about the current database, so run the script in the database you are checking.

When I want to identify locked table names at the object level, I use this small query.

SELECT OBJECT_NAME(resource_associated_entity_id) AS TableName,
    request_mode,
    request_status,
    request_session_id
FROM sys.dm_tran_locks
WHERE resource_type = 'OBJECT'
    AND resource_database_id = DB_ID();

The request_mode column shows the lock type, such as IS, IX or X, and request_status tells you whether the lock is granted or still waiting. If you see WAIT, another session is blocking this one. Check blocking_session_id in sys.dm_exec_requests to find out which session it is, and talk to its owner before you think about ending it. Run the query a few times over a minute or two. A lock that shows up once and disappears is routine. A lock that sits in WAIT for a long time is the one to chase, because every second it waits, a user is waiting too. Locks are normal. Long waits are the real problem worth your time.
