SQL SERVER – Introduction and Example of UNION and UNION ALL

It is very much interesting when I get request from blog reader to re-write my previous articles. I have received few request to rewrite my article SQL SERVER – Union vs. Union All – Which is better for performance? wi.th examples. I request you to read my previous article first to understand what is the concept and read this article to understand the same concept with example.

xe=”color:green;”>/* Create First Table */
DECLARE @Table1 TABLE (Col INT)
INSERT INTO @Table1
SELECT 1
INSERT INTO @Table1
SELECT 2
INSERT INTO @Table1
SELECT 3
INSERT INTO @Table1
SELECT 4
INSERT INTO @Table1
SELECT 5

/* Create Second Table */
DECLARE @Table2 TABLE (Col INT)
INSERT INTO @Table2
SELECT 1
INSERT INTO @Table2
SELECT 2
INSERT INTO @Table2
SELECT 6
INSERT INTO @Table2
SELECT 7
INSERT INTO @Table2
SELECT 8

/* Result of Union operation */
SELECT Col ‘Union’
FROM @Table1
UNION
SELECT
Col
FROM @Table2

/* Result of Union All operation */
SELECT Col ‘UnionAll’
FROM @Table1
UNION ALL
SELECT Col
FROM @Table2
GO

The difference between Union and Union all is that Union all will not eliminate duplicate rows, instead it just pulls all rows from all tables fitting your query specifics and combines them into a table.

A UNION statement effectively does a SELECT DISTINCT on the results set. If you know that all the records returned are unique from your union, use UNION ALL instead, it gives faster results.

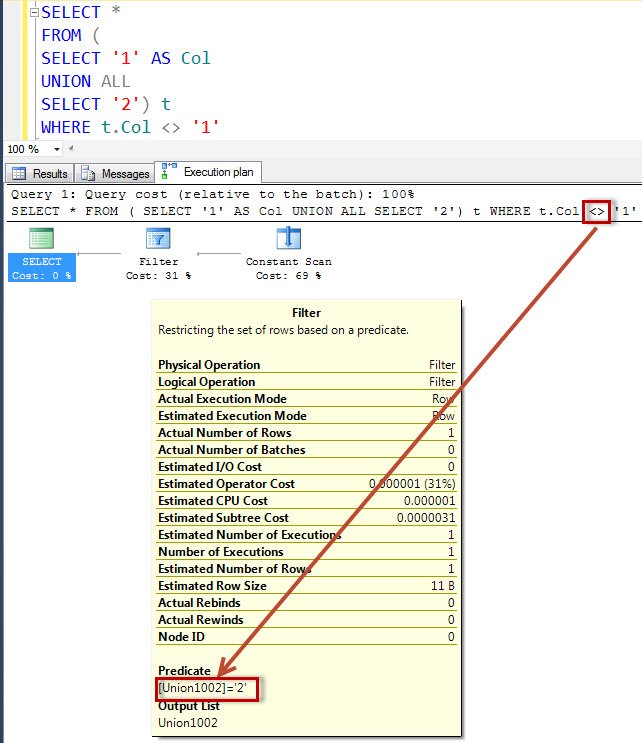

If you look at the resultset it is clear that UNION ALL gives result unsorted but in UNION result are sorted. Let us see the query plan to see what really happens when this operation are done.

From the plan it is very clear that in UNION clause there is an additional operation of DISTINCT SORT takes place where as in case of UNION ALL there is no such operation but simple concatenation happens. From our understanding of UNION and UNION ALL this makes sense.

There are three rules of UNION one should remember.

UNION RULES

  • A UNION must be composed of two or more SELECT statements, each separated by the keyword UNION.
  • Each query in a UNION must contain the same columns, expressions, or aggregate functions, and they must be listed in the same order.
  • Column datatypes must be compatible: They need not be the same exact same type, but they must be of a type that SQL Server can implicitly convert.

Reference : Pinal Dave (http://blog.SQLAuthority.com)

About these ads

SQL SERVER – Three Rules to Use UNION

I have previously written two articles on UNION and they are quite popular. I was reading SQL book Sams Teach Yourself Microsoft SQL Server T-SQL in 10 Minutes By Ben Forta and I came across three rules of UNION and I felt like mentioning them here.

UNION RULES

  • A UNION must be composed of two or more SELECT statements, each separated by the keyword UNION.
  • Each query in a UNION must contain the same columns, expressions, or aggregate functions, and they must be listed in the same order.
  • Column datatypes must be compatible: They need not be the same exact same type, but they must be of a type that SQL Server can implicitly convert.

SQL SERVER – Union vs. Union All – Which is better for performance?
SQL SERVER – Insert Multiple Records Using One Insert Statement – Use of UNION ALL

Reference : Pinal Dave (http://blog.SQLAuthority.com), Ben Forta

SQL SERVER – Insert Multiple Records Using One Insert Statement – Use of UNION ALL

Update: For SQL Server 2008 there is even better method of Row Construction, please read it here : SQL SERVER – 2008 – Insert Multiple Records Using One Insert Statement – Use of Row Constructor

This is very interesting question I have received from new developer. How can I insert multiple values in table using only one insert? Now this is interesting question. When there are multiple records are to be inserted in the table following is the common way using T-SQL.

USE YourDB
GO
INSERT INTO MyTable  (FirstCol, SecondCol)
        VALUES ('First',1);
INSERT INTO MyTable  (FirstCol, SecondCol)
        VALUES ('Second',2);
INSERT INTO MyTable  (FirstCol, SecondCol)
        VALUES ('Third',3);
INSERT INTO MyTable  (FirstCol, SecondCol)
        VALUES ('Fourth',4);
INSERT INTO MyTable  (FirstCol, SecondCol)
        VALUES ('Fifth',5);
GO

The clause INSERT INTO is repeated multiple times. Many times DBA copy and paste it to save time. There is another alternative to this, which I use frequently. I use UNION ALL and INSERT INTO … SELECT… clauses. Regarding performance there is not much difference. If there is performance difference it does not matter as I use this for one time insert script. I enjoy writing this way, as it keeps me focus on task, instead of copy paste. I have explained following script to new developer. He was quite pleased.

USE YourDB
GO
INSERT INTO MyTable (FirstCol, SecondCol)
SELECT 'First' ,1
UNION ALL
SELECT 'Second' ,2
UNION ALL
SELECT 'Third' ,3
UNION ALL
SELECT 'Fourth' ,4
UNION ALL
SELECT 'Fifth' ,5
GO

The effective result is same.

Reference : Pinal Dave (http://blog.SQLAuthority.com) , SQL SERVER – Union vs. Union All – Which is better for performance?
