SQL SERVER – Tricks for Row Offset and Paging in Various Versions of SQL Server

Paging is one of the most needed tasks when developers are developing applications. SQL Server has introduced various features of SQL Server 2000 to the latest version of SQL Server 2012. Here is the blog post which I wrote which demonstrates how SQL Server Row Offset and Paging works in various versions of the SQL Server. Instead of giving the generic algorithm, I have used AdventureWorks database and build a script. This will give you better control over your data if you have installed the AdventureWorks database and you can play around with various parameters.

The goal is to retrieve row number 51 to 60 from the table Sales.SalesOrderDetails of database AdventureWorks.

You can install the AdventureWorks database and you can run following queries based on your version.

USE AdventureWorks2012
GO
--------------------------------------------------
-- SQL Server 2012
--------------------------------------------------
DECLARE @RowsPerPage INT = 10, @PageNumber INT = 6
SELECT SalesOrderDetailID, SalesOrderID, ProductID
FROM Sales.SalesOrderDetail
ORDER BY SalesOrderDetailID
OFFSET
(@PageNumber-1)*@RowsPerPage ROWS
FETCH NEXT @RowsPerPage ROWS ONLY
GO
--------------------------------------------------
-- SQL Server 2008 / R2
-- SQL Server 2005
--------------------------------------------------
DECLARE @RowsPerPage INT = 10, @PageNumber INT = 6
SELECT SalesOrderDetailID, SalesOrderID, ProductID
FROM (
SELECT SalesOrderDetailID, SalesOrderID, ProductID,
ROW_NUMBER() OVER (ORDER BY SalesOrderDetailID) AS RowNum
FROM Sales.SalesOrderDetail ) AS SOD
WHERE SOD.RowNum BETWEEN ((@PageNumber-1)*@RowsPerPage)+1
AND @RowsPerPage*(@PageNumber)
GO
--------------------------------------------------
-- SQL Server 2000
--------------------------------------------------
DECLARE @RowsPerPage INT = 10, @PageNumber INT = 6
SELECT SalesOrderDetailID, SalesOrderID, ProductID
FROM
(
SELECT TOP (@RowsPerPage)
SalesOrderDetailID, SalesOrderID, ProductID
FROM
(
SELECT TOP ((@PageNumber)*@RowsPerPage)
SalesOrderDetailID, SalesOrderID, ProductID
FROM Sales.SalesOrderDetail
ORDER BY SalesOrderDetailID
) AS SOD
ORDER BY SalesOrderDetailID DESC
) AS SOD2
ORDER BY SalesOrderDetailID ASC
GO

I am sure there are better and efficient ways but the tricks demonstrated above just works. Please feel free to leave a comment with your suggestions.

Reference: Pinal Dave (http://blog.sqlauthority.com)

About these ads

SQL SERVER – Server Side Paging in SQL Server CE (Compact Edition)

SQL Server Denali is coming up with new T-SQL of Paging. I have written about the same earlier.

SQL SERVER – Server Side Paging in SQL Server Denali – A Better Alternative
SQL SERVER – Server Side Paging in SQL Server Denali Performance Comparison
SQL SERVER – Server Side Paging in SQL Server Denali – Part2

What is very interesting is that SQL Server CE 4.0 have the same feature introduced. Here is the quick example of the same. To run the script in the example, you will have to do install Webmatrix 4.0 and download sample database. Once done you can run following script.

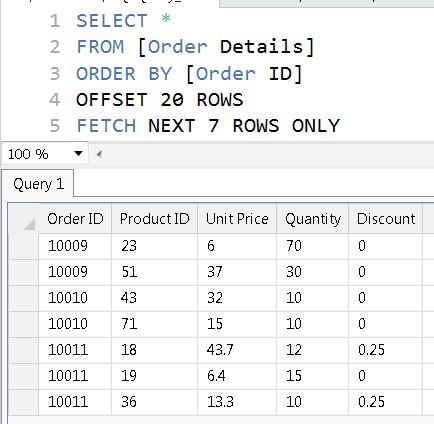

SELECT *
FROM [Order Details]
ORDER BY [Order ID]
OFFSET 20 ROWS
FETCH NEXT 7 ROWS ONLY

Above script returns records 21 to 27 from the tables [Order Details]. OFFSET clause will skip the first 20 rows and then returns 7 rows. Please note, this T-SQL will throw error if ORDER BY is not used in the query.

I have found exactly similar post written by Jacob Sebastian on BeyondRelational.

Reference: Pinal Dave (http://blog.SQLAuthority.com)

SQL SERVER – Server Side Paging in SQL Server Denali – Part2

The best part of the having blog is that SQL Community helps to keep it running with new ideas. Earlier I wrote about SQL SERVER – Server Side Paging in SQL Server Denali – A Better Alternative. A very popular article on that subject. I had used variables for “number of the rows” and “number of the pages”. Blog reader send me email asking in their organizations these values are stored in the table. Is there any the new syntax can read the data from the table. Absolutely YES!

USE AdventureWorks2008R2
GO
CREATE TABLE PagingSetting (RowsPerPage INT, PageNumber INT)
INSERT INTO PagingSetting (RowsPerPage, PageNumber)
VALUES(10,5)
GO
SELECT *
FROM Sales.SalesOrderDetail
ORDER BY SalesOrderDetailID
OFFSET
(SELECT RowsPerPage*PageNumber FROM PagingSetting) ROWS
FETCH NEXT (SELECT RowsPerPage FROM PagingSetting) ROWS ONLY
GO

Here is the quick script:

This is really an easy trick. I also wrote blog post on comparison of the performance over here: .

SQL SERVER – Server Side Paging in SQL Server 2011 Performance Comparison

Reference: Pinal Dave (http://blog.sqlauthority.com)

SQL SERVER – 2005 T-SQL Paging Query Technique Comparison (OVER and ROW_NUMBER()) – CTE vs. Derived Table

I have received few emails and comments about my post SQL SERVER – T-SQL Paging Query Technique Comparison – SQL 2000 vs SQL 2005. The main question was is this can be done using CTE? Absolutely! What about Performance? It is same! Please refer above mentioned article for history of paging.

SQL 2005 Paging Method Using Derived Table
USE AdventureWorks
GO
DECLARE @StartRow INT
DECLARE
@EndRow INT
SET
@StartRow = 120
SET @EndRow = 140
SELECT FirstName, LastName, EmailAddress
FROM (
SELECT PC.FirstName, PC.LastName, PC.EmailAddress,
ROW_NUMBER() OVER(
ORDER BY PC.FirstName, PC.LastName,PC.ContactID) AS RowNumber
FROM Person.Contact PC) PersonContact
WHERE RowNumber > @StartRow
AND RowNumber < @EndRow
ORDER BY FirstName, LastName, EmailAddress
GO

SQL 2005 Paging Method Using CTE
USE AdventureWorks
GO
DECLARE @StartRow INT
DECLARE
@EndRow INT
SET
@StartRow = 120;
SET @EndRow = 140;
WITH PersonContact AS
(
SELECT PC.FirstName, PC.LastName, PC.EmailAddress,
ROW_NUMBER() OVER(
ORDER BY PC.FirstName, PC.LastName,PC.ContactID) AS RowNumber
FROM Person.Contact PC)
SELECT FirstName, LastName, EmailAddress
FROM PersonContact
WHERE RowNumber > @StartRow
AND RowNumber < @EndRow
ORDER BY FirstName, LastName, EmailAddress
GO

Following Image of Execution Plan displays that the performance for both of them is same with regarding to each other in one batch. This MAY NOT be true when there is complex query in issue. For most of the time, it is will be same.

Reference : Pinal Dave (http://blog.SQLAuthority.com) , SQL SERVER – T-SQL Paging Query Technique Comparison – SQL 2000 vs SQL 2005
